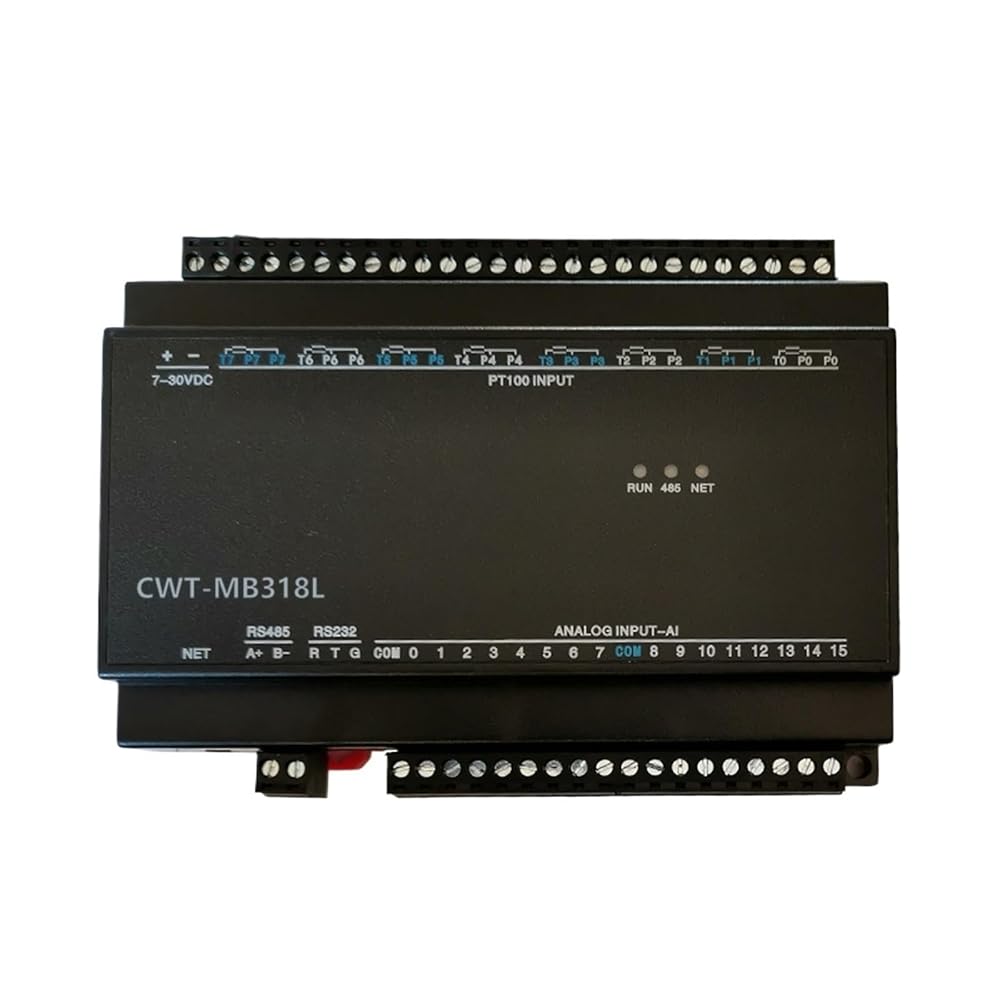

CWT-MB318L 8PT+16AI RS485 RS232 Ethernet Modbus Rtu Acquisition Module
The second generation options:
The first generation options:
Analog input
Input type
4~20mA,option: 0~20mA/0~5/1~5/0~10V
Precision
0.1%,16 bit
Refreshrate
0.01m
PT100 input
Input type
PT100
Precision
0.1
Measure range
-200to 220
System parameters
CPU
32-bit ATMEL ARM, 72MHZ
OS
GCOS,10ms scheduling mechanism
Power
7-35VDC @2W, power supply reverse protection, isolation design
Installation
DIN rail mounting or screw fixing
Working Environment
-40~85,5%~95%RH(non-condensing)
Protection
IP20
Watchdog
1.5m guard
Series port parameters
Port type
1RS485 & 1RS232
Protection
DCDC isolation design 2500V protection ESD overvoltage, overcurrent protection
Baud rate
1200~115200,default 9600
Parity
Even, Odd, None
startbit
1 bit
databits
8 bit
Stopbits
1,2bits
Protocol
MODBUS RTU
default
9600.N.8.1,slave id is 1
Ethernet
Port type
RJ45
Communicate protocol
MODBUS,MODBUS UDP
Communicate rate
1000 times/s
bandwidth
10M/100Mbps
IP address
192.168.1.75
Port
502
Model Number : CWT-MB318L
Origin : Mainland China
