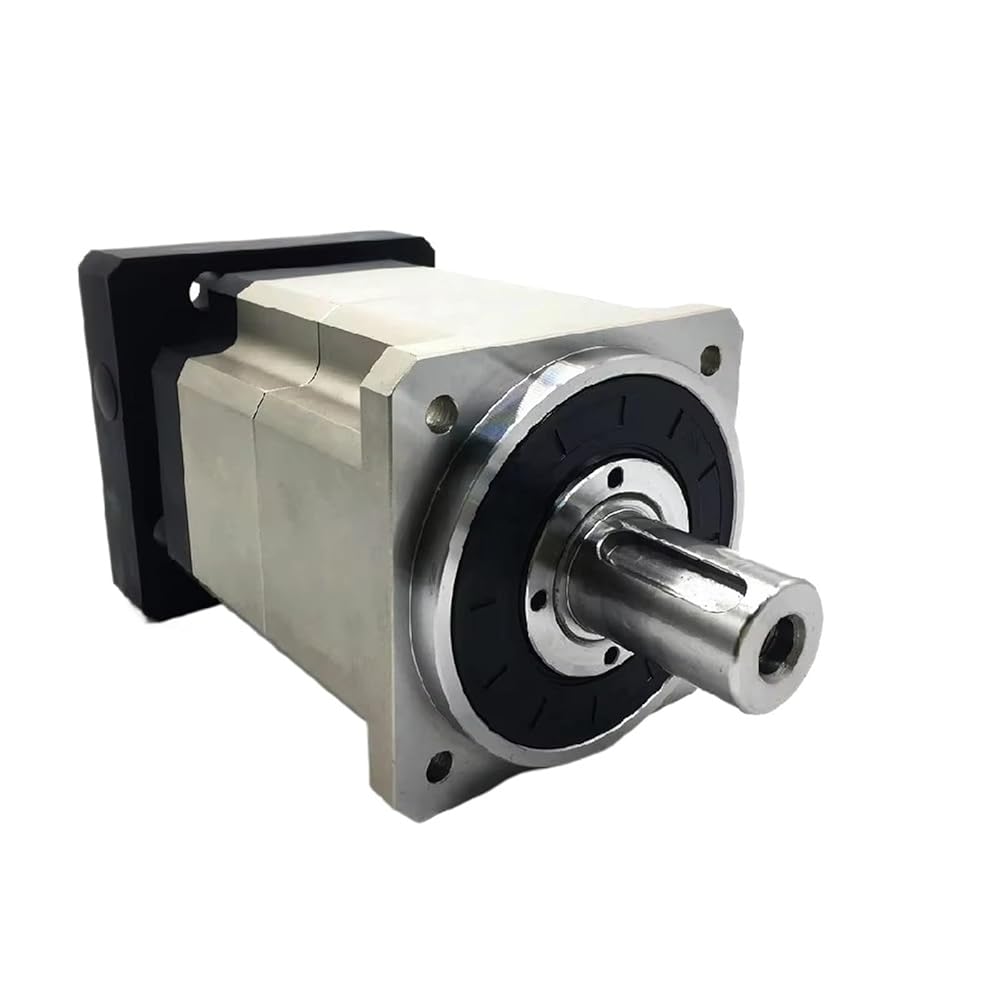

1 X Helical Planetary reducer1 X Key4 X Install screws
PRODUCT INFORMATIONSpeed Ratios:
1Stage(L1):3:1 / 4:1/ 5:1 / 7:1 / 10:1
2Stage(L2):15:1 / 20:1 / 25:1/ 30:1/35:1/ 40:1/ 50:1/ 70:1/ 100:1
Product type:Helical Gear Planetary reducer
Input shaft:35/42mm
Backlash Precision:Less than 3 Arcmin (L1) / Less than 5 Arcmin (L2)
Gear type:Helical Gear
Rated torque:1000Nm(5:1/ 7:1 /25:1/ 35:1/ 40:1/ 50:1) ;
800Nm (3:1/ 4:1/ 15:1/ 20:1/ 70:1) ; 700Nm ( 10:1/ 30:1/ 100:1)
Maximum torque:2* Rated torque
Emergency braking torque:3* Rated torque
Max radial force:14500N
Max axial force :7250N
Max input speed:6000rpm
Rated input speed:3000rpm
Transmission efficiency:More than 95% (L1) / More than 90% (L2)
Noise:less than 68dB
Working life time:20000h
Protection level:IP65
Output Speed : 2000RPM
Input Speed : 3000RPM
Output Torque : 1100Nm
Model Number : PLG180
Gearing Arrangement : Helical
Origin : Mainland China
Certification : CE
Backlash Precision : Less than 3 Arcmin
Product type : Helical Gear Gearbox,Helical Gear Planetary Gearbox,High Precision reducer,planetary reducer,180 Servo motor reducer
