bearings
High precision fast speed long life.
Structure & introduction
The outer ring of drawn cup needle roller bearing is punched with the highquality steel sheet The outer ring has thin wall.
The drawn cup needle roller bearing has the characteristics of small radial section area large load carrying capacity less inertia and economic manufacture. It is suitable for small section height or when the housing bore isn't used for raceway this type is recommended to use. The bearing is assembled into the housing bore under a certain pressure without further axial location.
The drawn cup needle roller bearing generally takes its shaft diameter as the internal raceway. However the proper LR type inner ring can be used in accordance with application condition.
The drawn cup needle roller bearing has two structures-with retainer and with full of needles. They are divided into opened type and close-end type. The structure with retainer has the single seal ring and double seal ring. The structure with full of needles has a large load carrying capacity.
Characteristics & classification
The outer ring of drawn cup needle roller bearing is punched with the steel sheet It has the small sectional height and the large load carrying capacity and is suitable for economic mass production The interference fit between outer ring and bearing housing is applied to this kind of needle roller bearing without axial fixing device. Even for the condition of high load it fully maintains bearing function either. In addition with the large grease storage capacity it is unnecessary to add grease for a long-term operation.
Since one end of the close-end bearing is sealed it is suitable for the end of shaft with bearing the small axial sliding force.

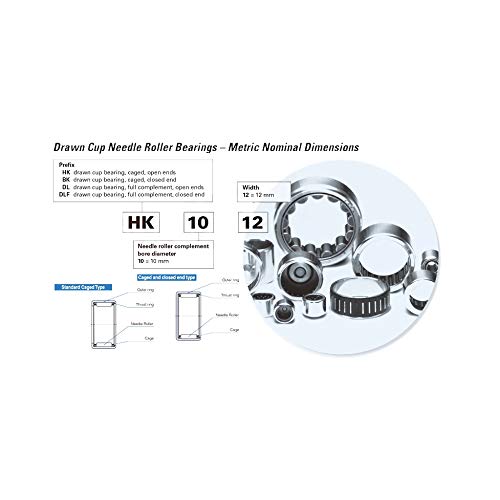

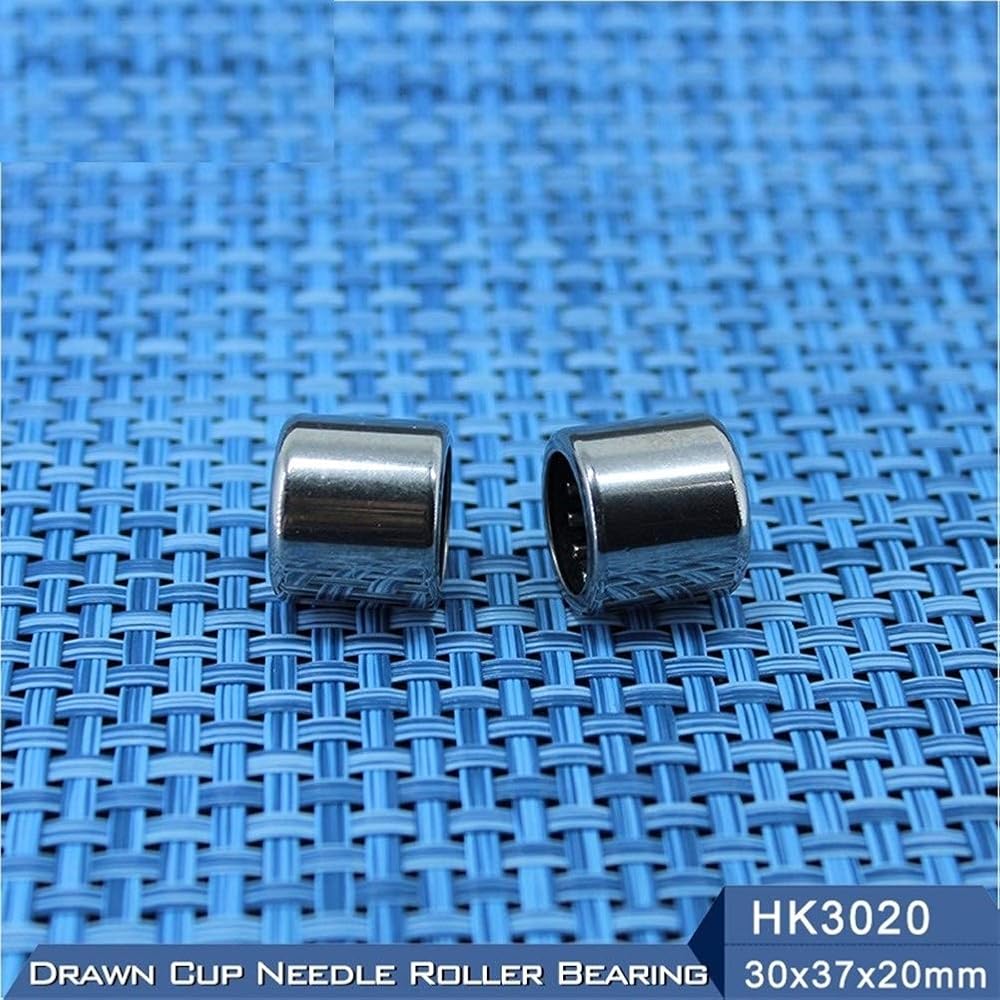

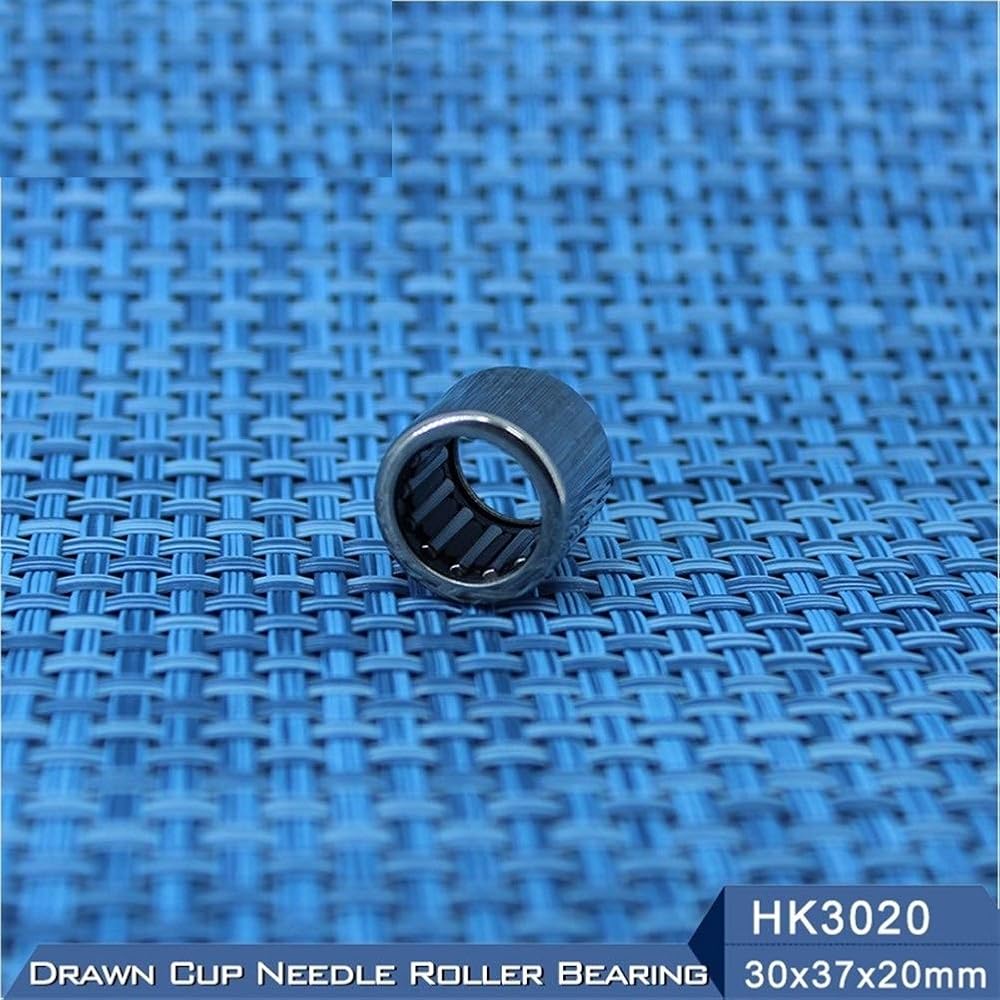

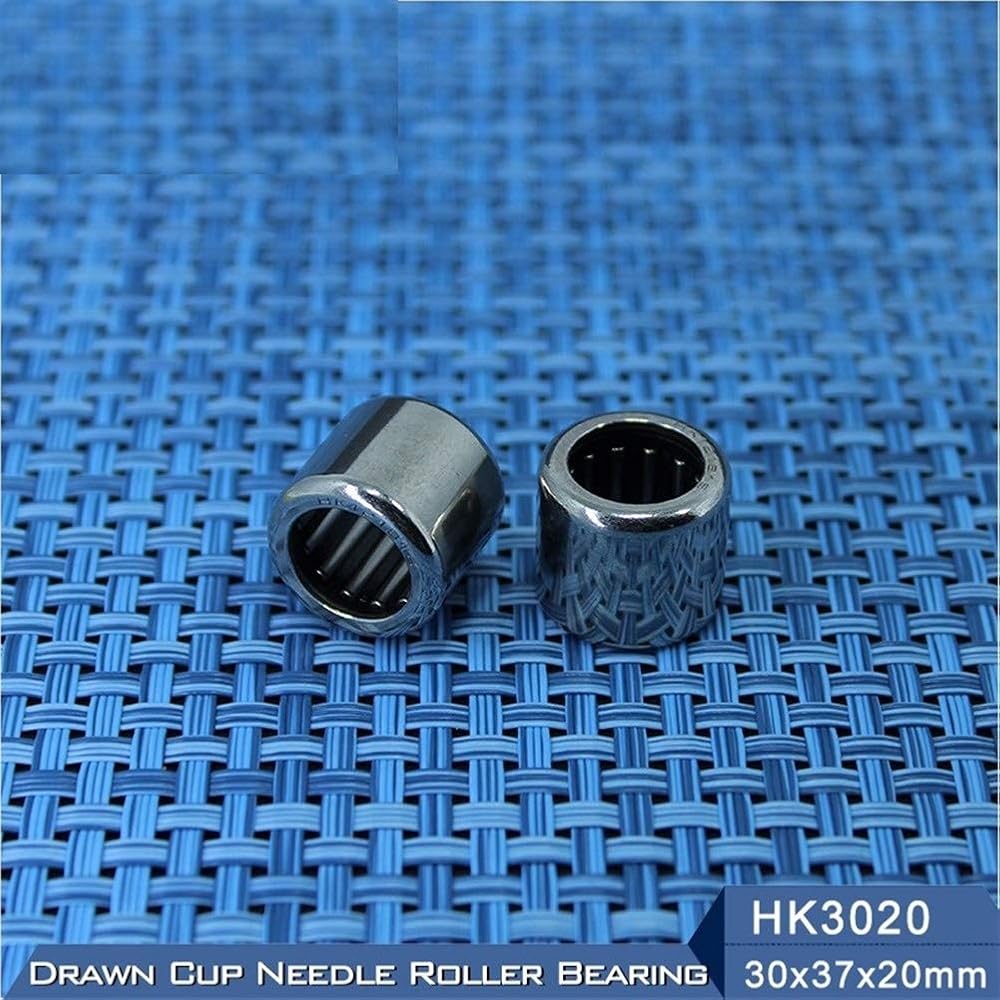

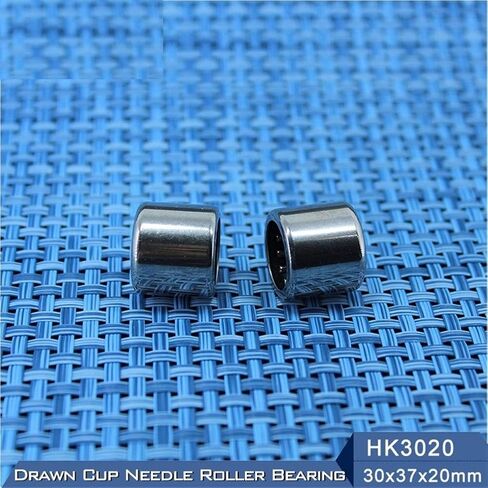

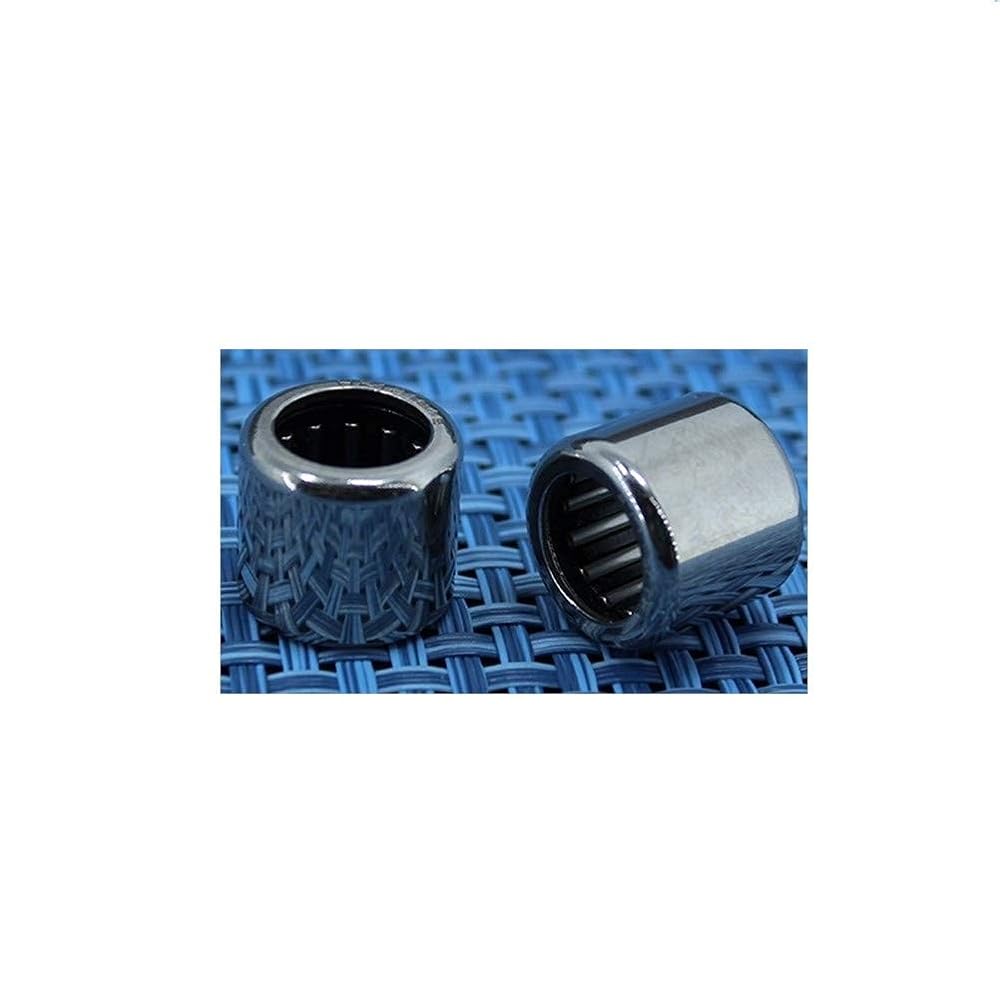

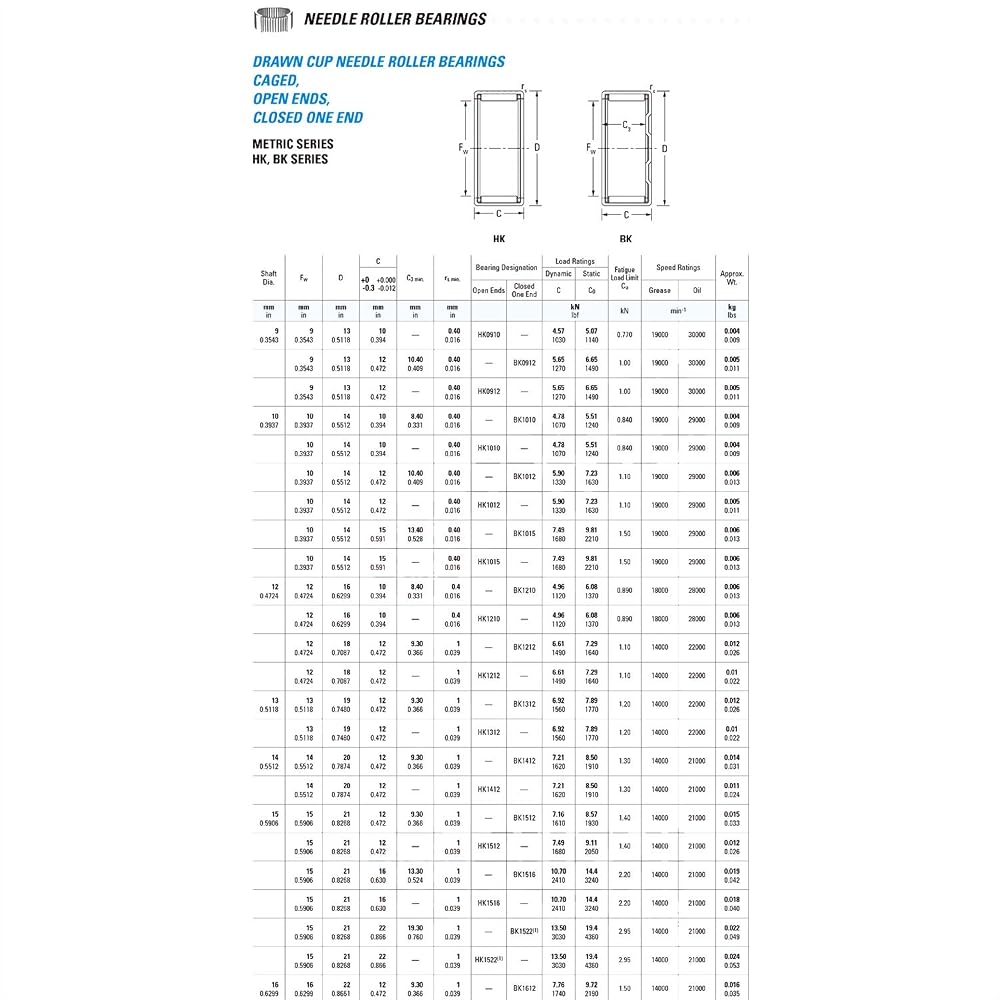

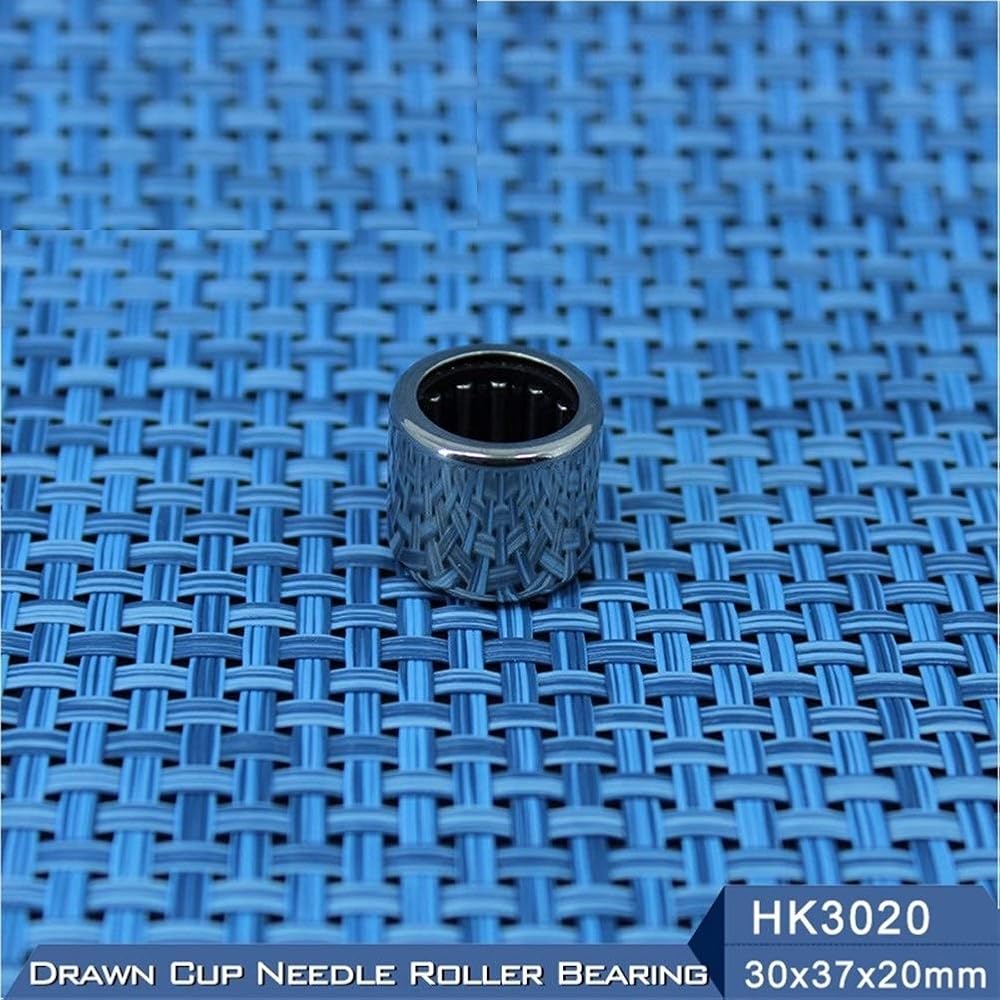

Model HK TA TLA open-end drawn cup needle roller bearings with retainer
Model BK close-end drawn cup needle roller bearing with retainer
Model SCE
