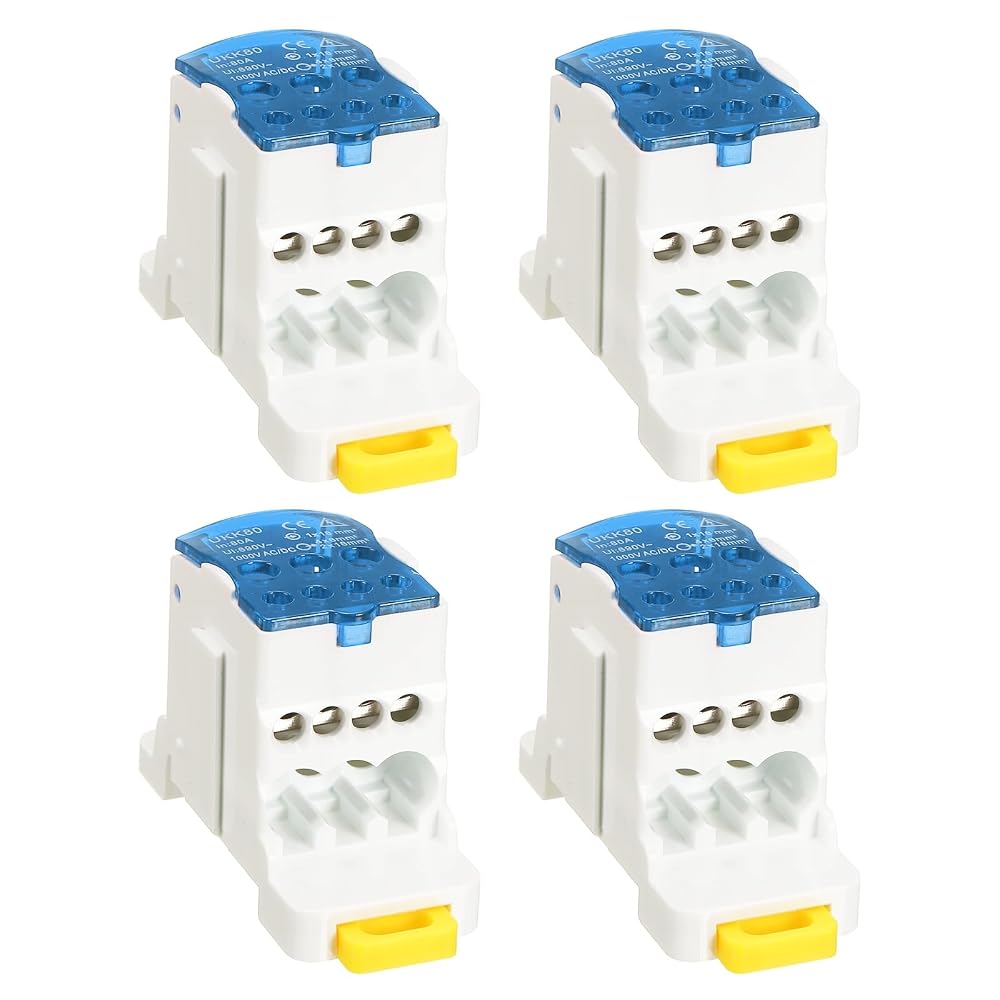

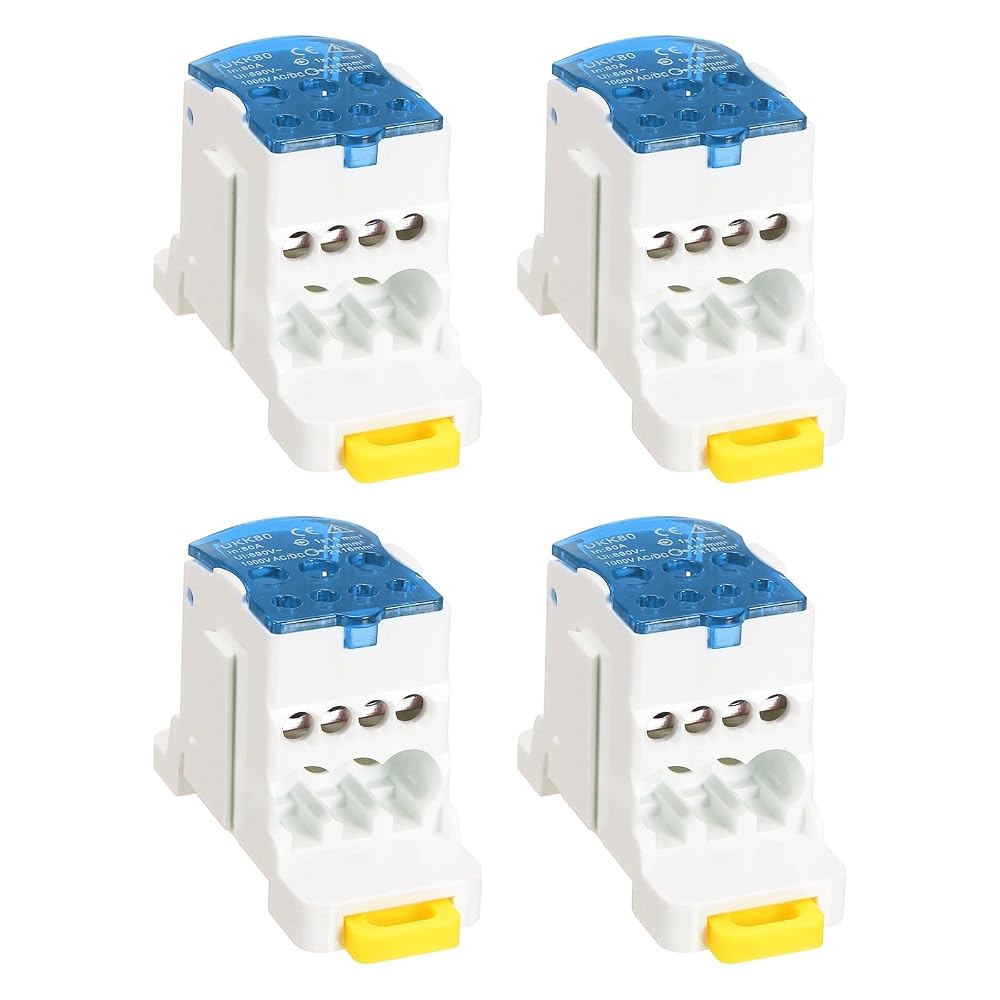

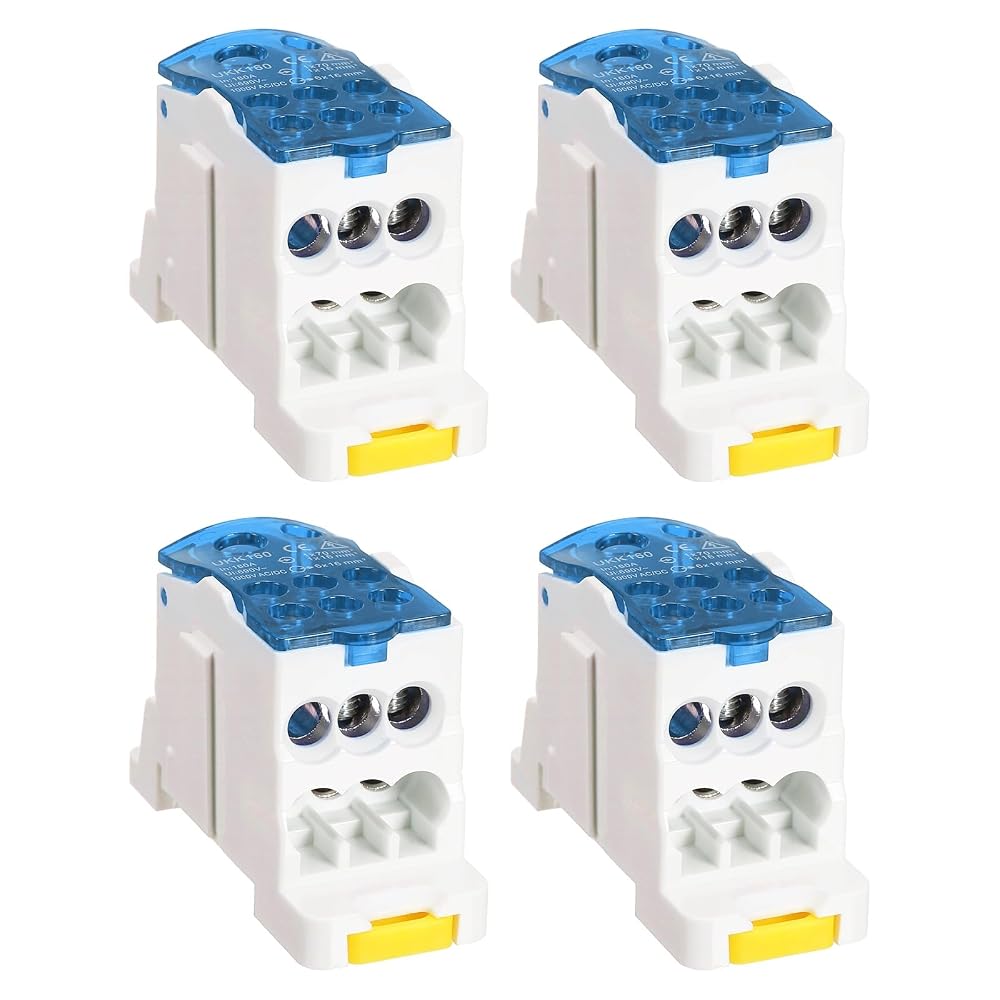

MECCANIXITY 4Pcs 1 in 6 Out Rail Terminal Blocks, 690V 125A Connectors Power Distribution Block with Flame-Retardant Housing for Power Distribution Cabinets, Blue 29.4mm Width 12-6AWG Gauge

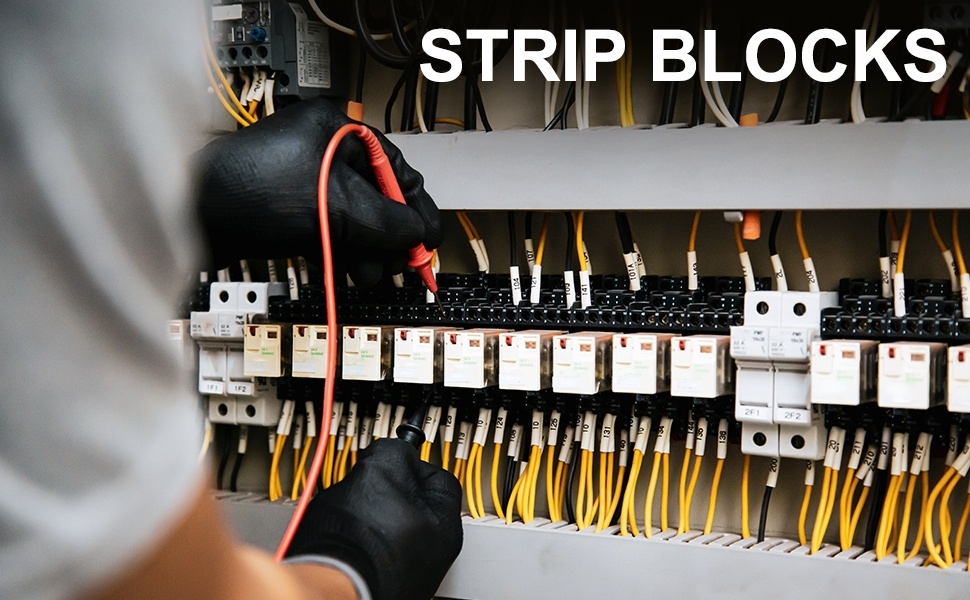

This 1 in 6 out terminal block is engineered for efficient and safe power splitting in a wide range of industrial and commercial applications. It is suitable for organizing and distributing power within computer room power distribution cabinets (PDUs), control panels, industrial machinery, and automation systems.
The wire splitter measures 2.75 x 1.16 x 1.78 inches/70 x 29.4 x 45mm (L x W x H)), has a rated voltage of 690V, a maximum input current of 125A, and accepts incoming and outgoing cable cross-sectional areas of 6-16/10-35mm² and 2.5-16mm², respectively. 4pcs strip blocks is included in the package.
Built with a solid, tin-plated brass conductor, this block ensures excellent electrical conductivity, corrosion resistance, and long-term reliability. The premium flame-retardant housing provides critical protection, preventing the spread of flame in case of an electrical fault, thereby safeguarding your equipment.
Built with a solid, tin-plated brass conductor, this block ensures excellent electrical conductivity, corrosion resistance, and long-term reliability. The premium flame-retardant housing provides critical protection, preventing the spread of flame in case of an electrical fault, thereby safeguarding your equipment.
Always use within specified electrical limits. Ensure all incoming and outgoing wires are properly stripped and securely fastened, and that terminal screws are tightened to the recommended torque to prevent overheating.
