Model name
Description
USR-N510
1 RS232/485/422 to Ethernet device server
USR-N510-4
1 RS485 to Ethernet device server
USR-N520
2 RS232/485/422 to Ethernet device server
USR-N520-6
2 RS232/485 to Ethernet device server
USR-N540
4 RS232/485/422 to Ethernet device server
USR-N540-4
4 RS485 to Ethernet device server
USR-N580
8 RS485 to Ethernet device server
Basic Function
Bi-directional data transmission between RS485 port and Ethernet
Wide Baudrate

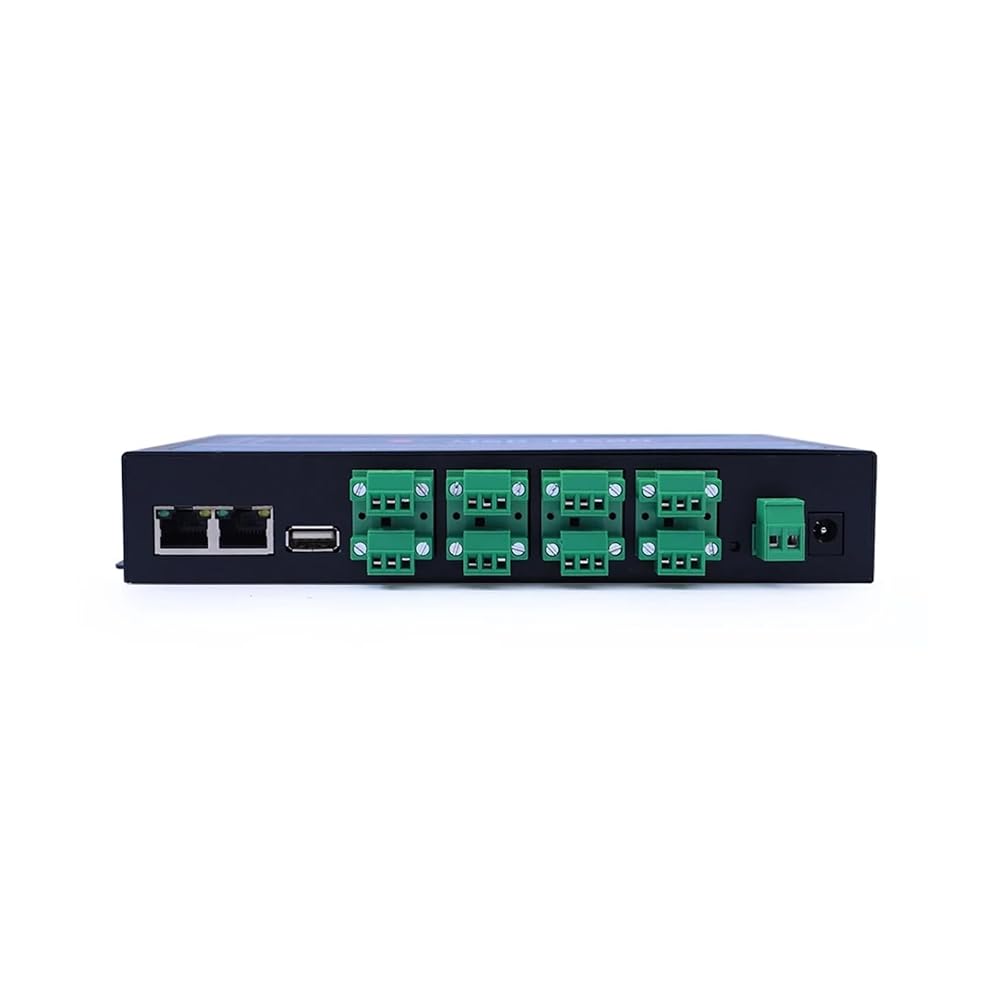

The 8 RS485 ports can work independently and does not affect
each other. Each ports can be configured for different baud rates.
It supports 600bps~921600bps wide baudrate.
Cascade Connection Function
Dual Ethernet port 10/100mbps It supports switch function. Other devices can be cascaded through USR-N580
Arm scheme (Cortex-M7 core)to
provide a better experience
Arm Cortex-M7 Scheme,480Mhz CPU, 1M +4M Flash The scheme features short transmission delay, fast data transmission speed, flexible expansion, and stable.
(MQTT/SSL/IPV6 and other major protocols will come soon,please enquire directly for more information ).
Free Choice of Multiple Working Modes
N580 supports Client,Server,UDP Client,UDP Server,Httpd Client (later support
MQTT Client) and other modes ; only a simple configuration, you can achieve data
pass-through function.
Advanced Protection
N580 supports Level 4 ESD (Static), level 3 Surge (Surge),level 3 EFT
(Electrical Fast Transients),internal process watchdog and external
watchdog, to ensure normal operation of the equipment and
immunity from the outside environment interference.
ESD Protection
Prevent electrostatic damage to equipment,
such as human electrostatic, dust
electrostatic, electric power application of
environmental arc, etc.
Contact Level 4 (±8KV)
Air Level 4 (±15KV)
No Restarting
EFT Protection
Avoid instantaneous big electric current
because of the circuit such as
stroke, power switch, etc.) when cause
damage to equipment
Pulse Group: Level 3 (2KV) No Restarting
Surge Protection
Anti Surge: Level 3 (2KV) No Restarting
Watchdog
nternal process watchdog and
external watchdog work
24 hours without stopping steadily
More Features
Application Case
Network Monitoring of Industrial Automation
Traditional network monitoring of industrial automation actually without
networking. N580, integrating optimized /IP protocol stack, provides
network scheme of serial port data to /IP, which can greatly improve
the level of industrial automation.
Unattended Weighing
N580 is connected with the barrier gate to facilitate the control center to control
the gate switch remotely through Ethernet. At the same time, many serial ports of
N580 can connect peripherals like weighing instruments, LED displays,
readers, vehicle induction coils, ticket printers, fitting more application scenarios.
Origin : Mainland China
Certification : CE
