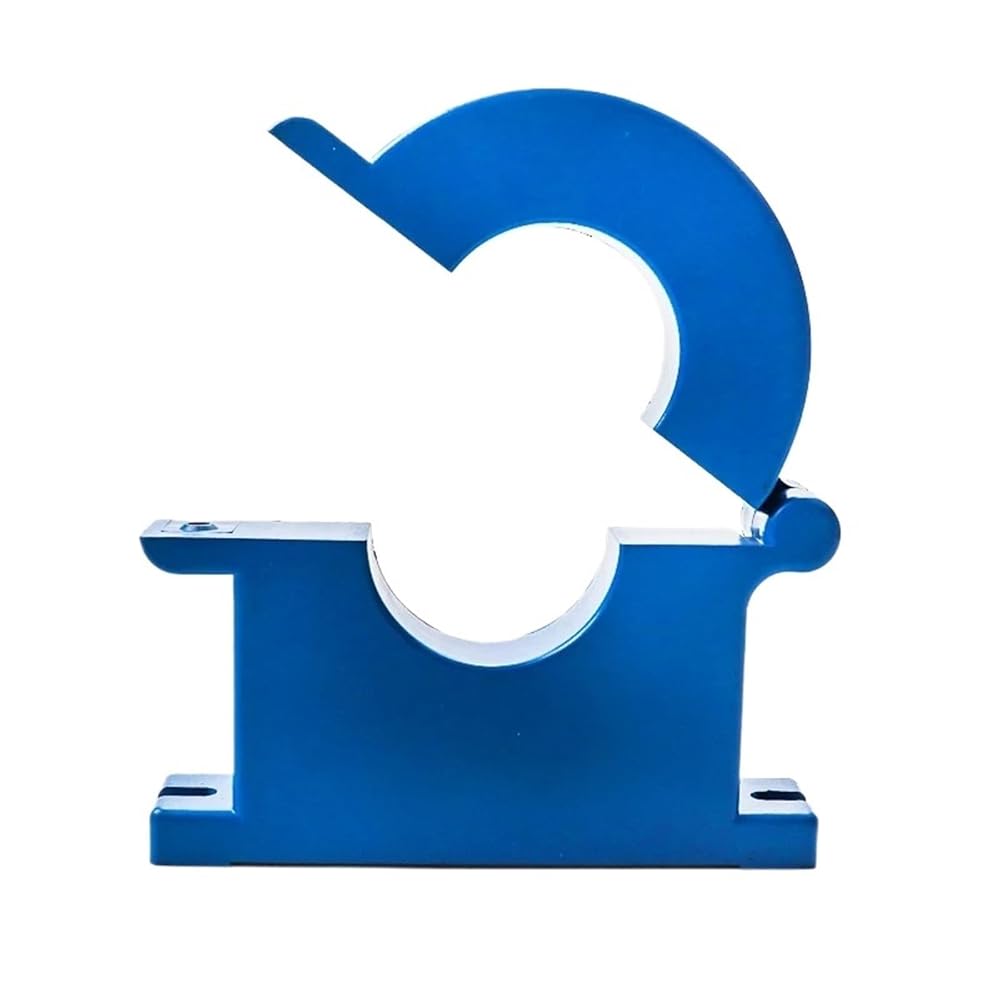

0-1000A output 50mm open clamp ac current transmitter converter 10v dc output current transformer
Product description
HD-K ac current transmitter adopts Hall Principle to directly convert the high-current signal from the industrial field into the standard analog signal,and the input and output signals are linear.
No need for transformer,the input,output,and power supply are reliably isolated from each other.
Opening measurement is more convenient.
Product details
AC current transmitter
Dimensions : 24*120*63mm
Operating Temperature : -40~85
Supply Voltage : 12-28VDC,85-265VDC/AC
Accuracy Class : 0.2%
Model Number : HD-K
Display Type : Analog and Digital
DIY Supplies : Electrical
Origin : Mainland China
Certification : CE
Product name : AC/DC Hall Current Transmitter
Input signal : 0-10A,0-100A,0-200A,0-500A,0-1000A
Output signal : 4-20ma,0-10v,0-5v
Power supply : 12-28VDC,85-265VDC/AC
Aperture size : 25mm,38mm,50mm,80mm
Installation : Screw mounting
Accuracy : 0.2%
Linearity : 0.1%
Response time : 50MS
Working temperature : -40~85
