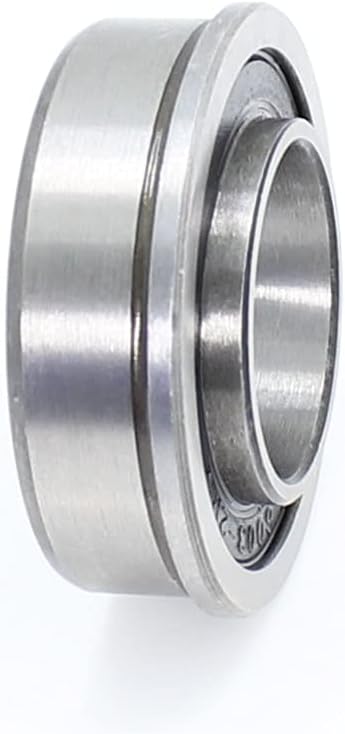

Features: This bearing has a flange for easy axial positioning; the inner bore protrudes to prevent wear and tear from contact with the wheel.
Note: There may be errors in the dimensions of non-standard bearings which are based on the size of the homepage!
Application:
This bearing is designed for some special size garden cart wheel. It is a non-standard model.
If your cart's bearings are damaged or make an abnormal noise replacing the bearings is a good choice.
Description
Air Bearings
Flanged Ball Bearing Types and Features
A flanged ball bearing is not truly a different type of bearing Just as ball bearings are offered sealed or open they are also available flanged or plain. A flange is an extension or a lip on the outer ring of the bearing designed to aid the mounting and positioning of a bearing in a delicate or problematic application.
TECHNICAL SPECS:

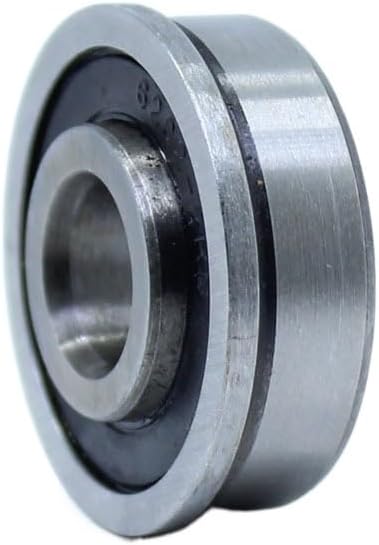

Item:F6202-16 RS Flanged Ball Bearing
Type: Deep groove ball bearing
Material:Carbon steel

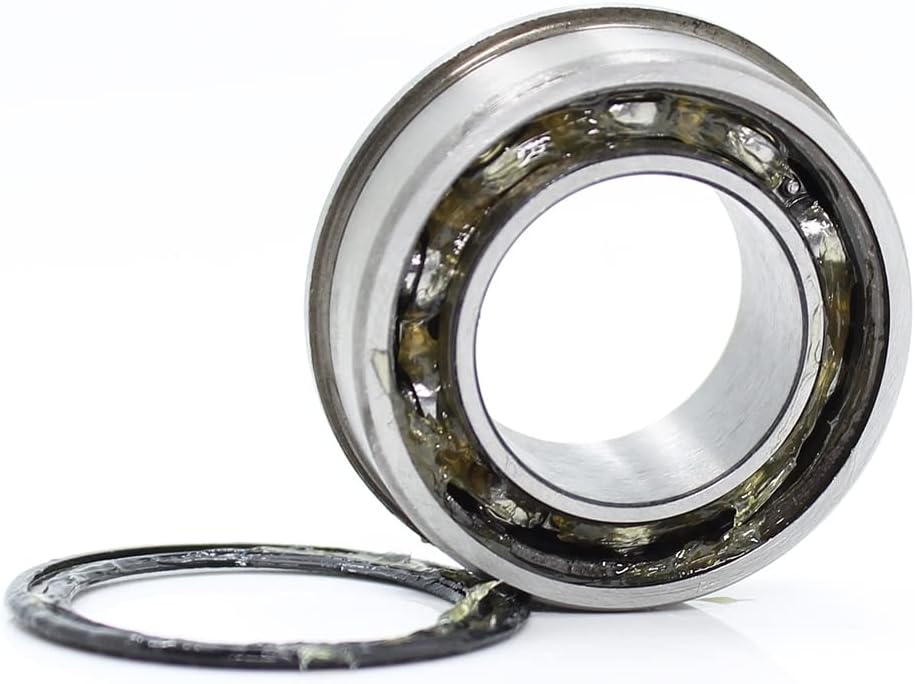

Closures: 2 Rubber Sealed
Lubrication: Self Lubricated (Grease)

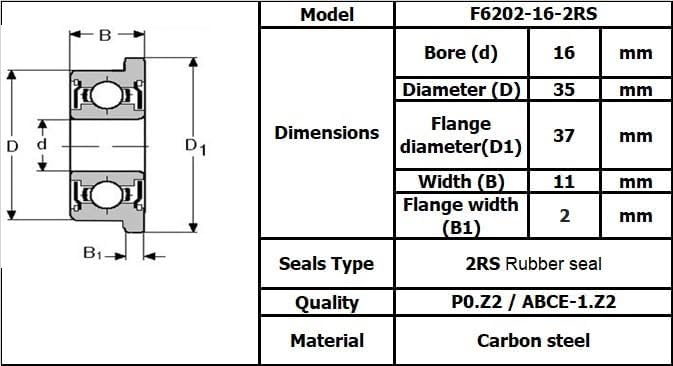

Dimensions: 16 x 35 x11mm
ID (inner diameter)/Bore:16mm
OD (outer diameter): 35mm
Width/Height/thickness:11mm

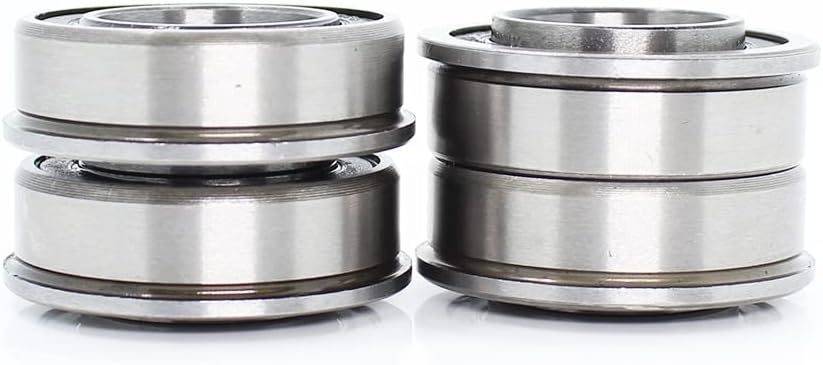

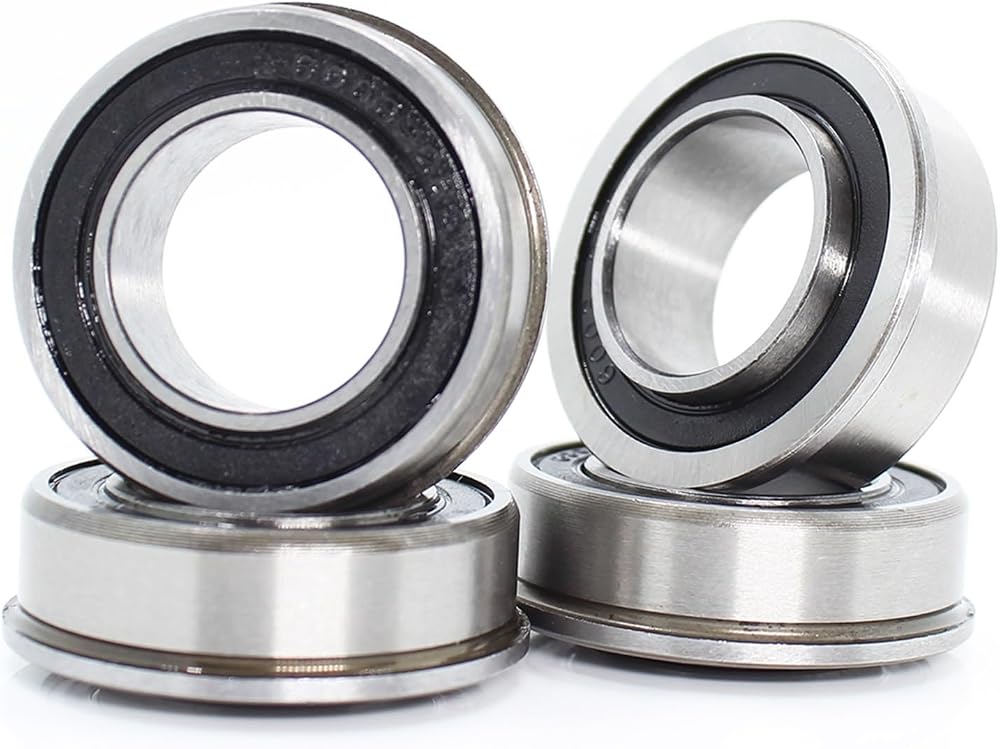

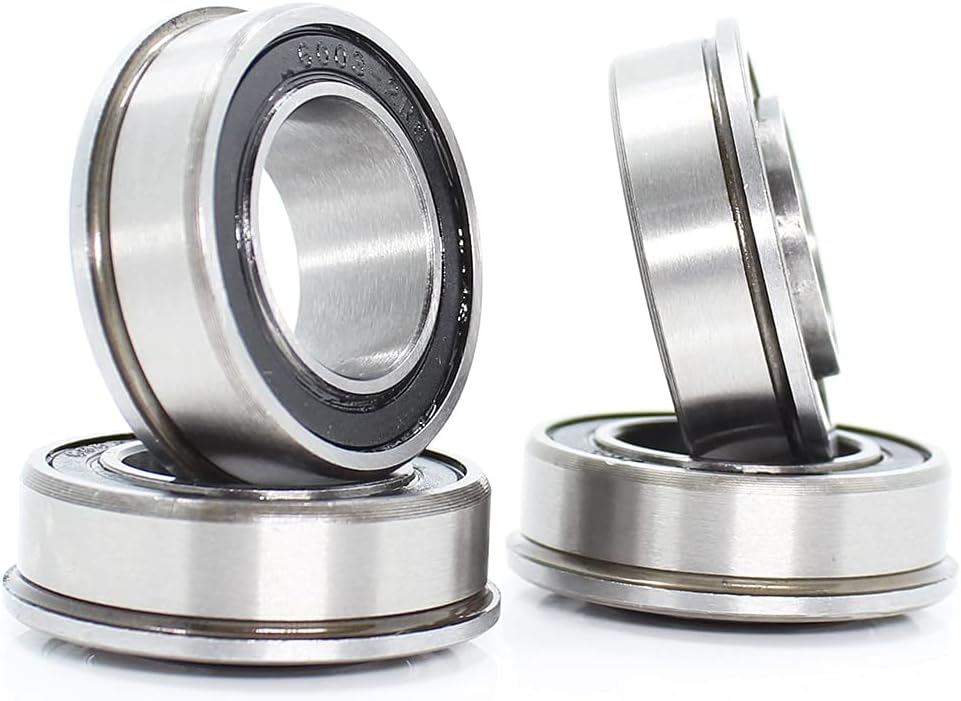

Quantity: 4pcs
