Special Features

The sampling rate is upgraded to 250MSa / s, and the outline of high-frequency signal output is clearer;
Uses 14-bit high-speed DA integrated circuits (the performance far exceeds the DA solution made by the resistor network). At 5V output, the waveform ladder is as low as 0.3mV;
Wwaveform storage depth is upgraded to 8192 * 14bits, which can restore signal details with high accuracy;
The phase resolution can reach 0.01 degree, users can control the delay of two signals more accurately;

Description

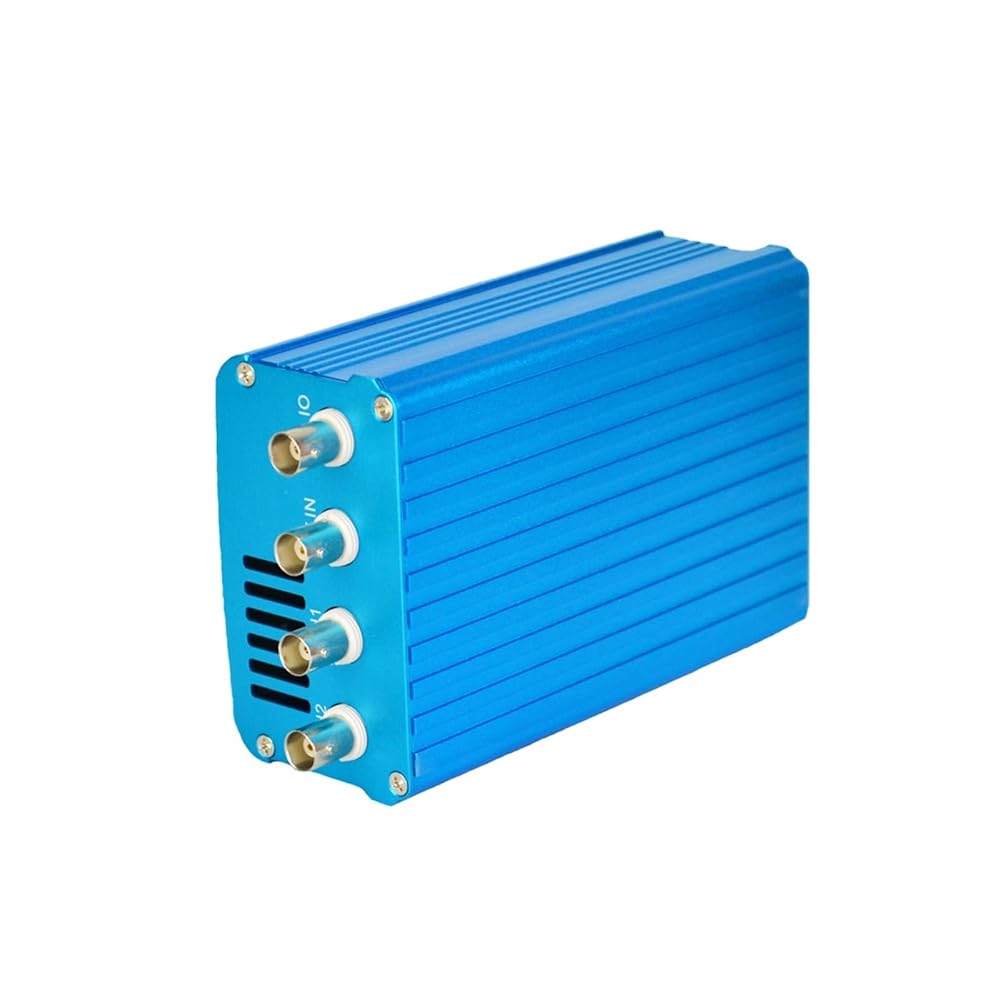

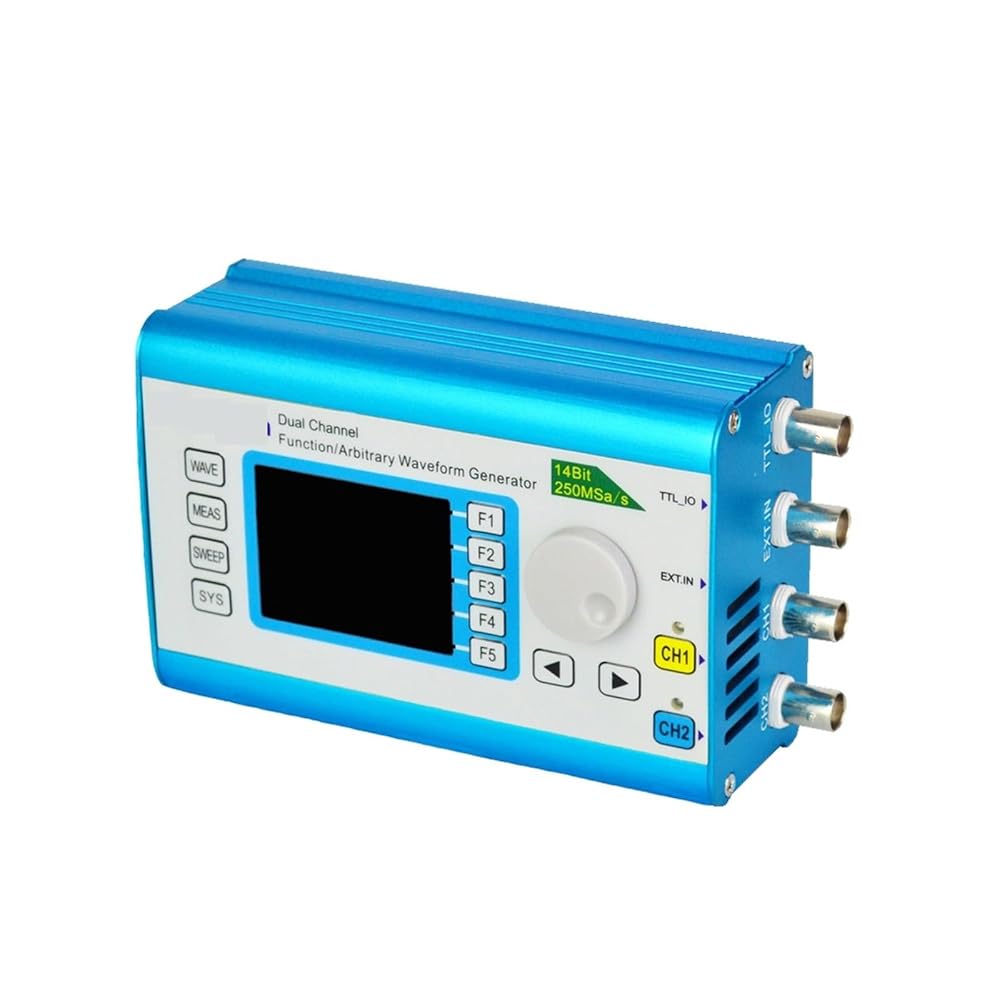

Model： FY6300-60M

Sine：0~25MHz

Square：0~60MHz

Ramp, Triangle：0~20MHz

Pulse：0~20MHz

TTL/CMOS：0~60MHz

Arbitrary Waveform：0~20MHz

Resolution：1μHz (0.000001Hz)

Accuracy：± 5×10-6

Stability：±1×10-6/ 3Hours

Impedance：50Ω±10%（Typical）

Phase Range：
0~359.9°

Phase Resolution：0.1°

Waveform Characteristics
Waveforms：Sine, Square, Triangle(Ramp), Arbitrary, Rise Sawtooth, Fall Sawtooth, Lorenz Pulse, Multitone, Noise, Cardiogram, Rapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, Step
Waveform Length：8192 points
Sampling Rate：250MSa/s
Vertical Resolution：14 bits

Sine

Square
Overshoot：≤7.5%
Duty Cycle：0.1%~99.9%

Sawtooth wave
Linearity：>98% (0.01Hz~10kHz)

Output characteristics
Amplitude（50Ω）：20MHz:10mVpp~5Vpp
Resolution：1mV (Attenuate 20dB)
Amplitude Stability：±0.5%/ 5 Hours
Amplitude flatness：±5%(10MHz);

Waveform Output
Impedance：50Ω±10%（Typical）
Protection：All channels can work more than 60 seconds when the load is short-circuited.

DC Offset
Offset Range：Frequency≤20MHz: ±10V; Frequency>20MHz: ±2.5V;
Offset Resolution：1mV

TTL Output
Electrical Level Amplitude：>3Vpp
Fan-out：>8 TTL LOAD
Rise/Fall Time：≤10ns

CMOS Output
High Electric Level：1V~10V
Rise/Fall Time：≤20ns

Frequency Meter
Range：0.01Hz~100MHz
Sensitivity：Gate Time 3 grades (1S, 10S, 100S) adjustable

Counter
Range：0-4294967295

Coupling：DC, AC

Working Mode：Manual

Pulse Width measurement：Resolution 5nS. Max. 10S

Voltage Input Range：0.7Vpp~20Vpp

Pulse Width Measurement
Measurement：Resolution 5ns，Max. Limit 10s
Period Measurement：Resolution 5ns，Max. Limit 10s

Sweep (Only CH1 available)
Sweep Type：Linear or :Logarithm
Sweep Objects：Frequency, Amplitude, Offset, Duty Cycle
Sweep Time：0.01S~999.99S/Step
Sweep Range：Starting position and Finishing position can beset arbitrarily.

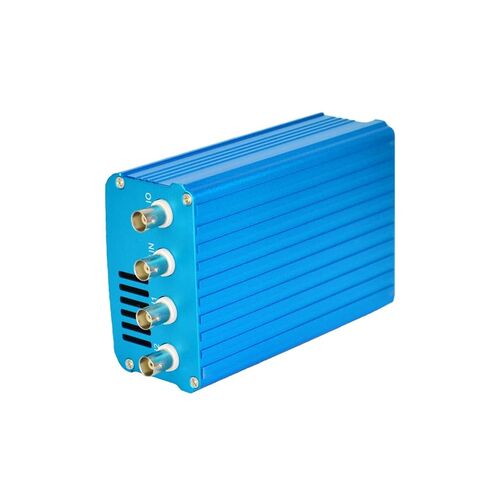

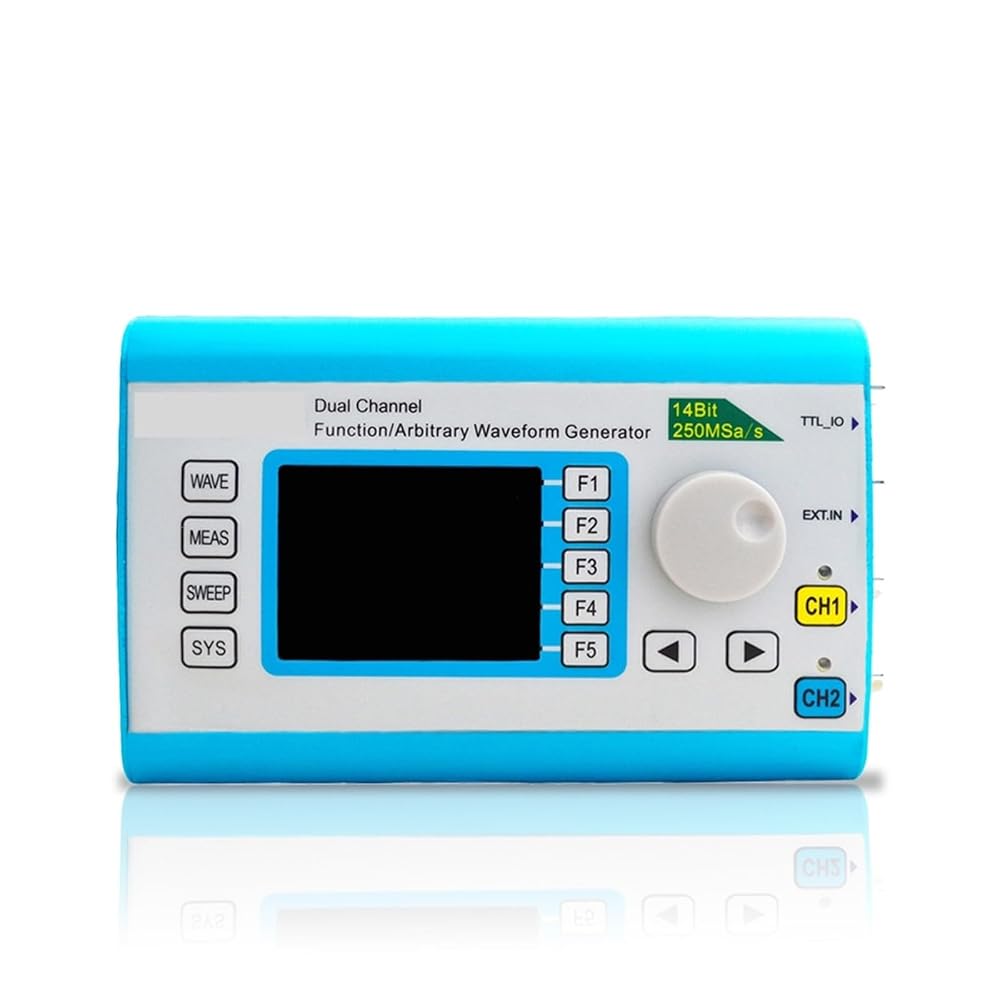

Display：2.4 inch, TFT Color Display.

Save & Load
Amount：20
Position：01 to 20 (01 for start default value)

Interface
Type：USB to Serial interface

Protocol：Command line mode, providing communication protocols.

Communicating Speed：9600bps

Power：DC5V±0.5V

Technic：SMD, LSI, Reliable and durable

Buzzer：Can be turned on/off by setting.

Environment：Temp.: 0~40℃, Humidity: ﹤80%

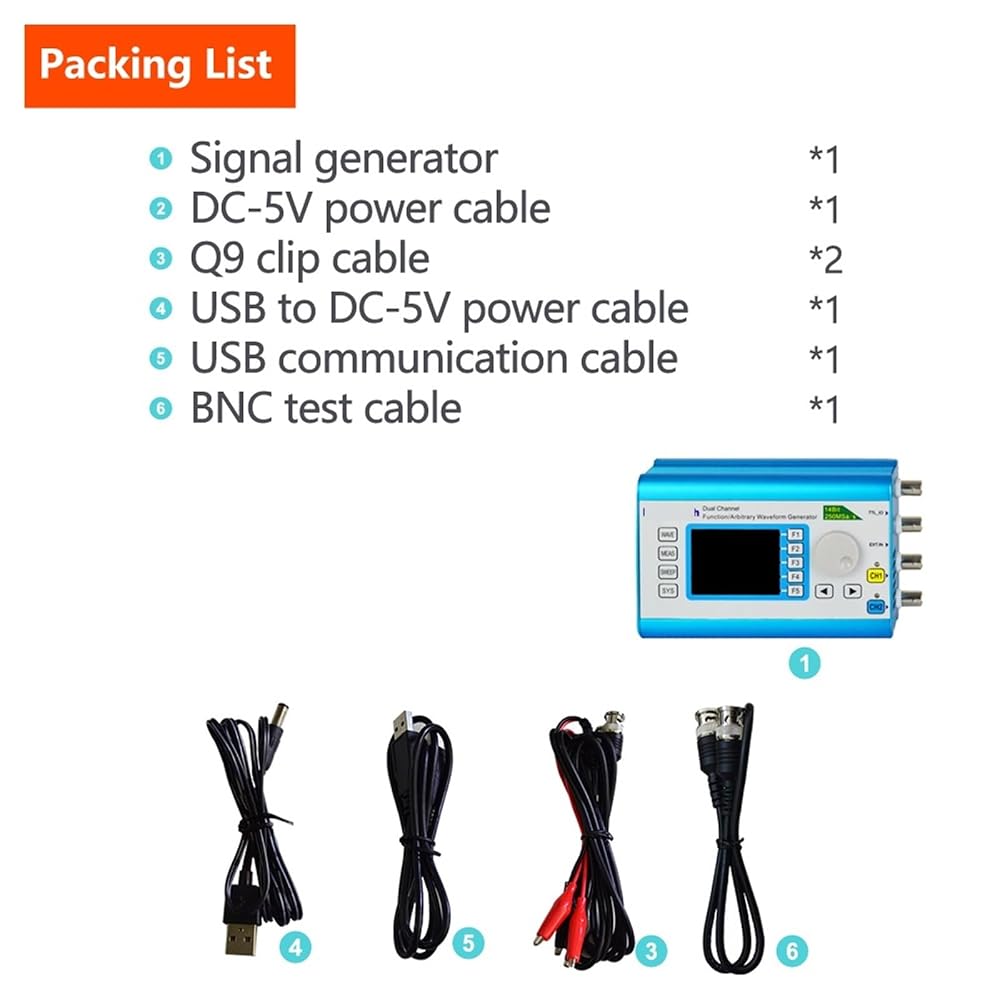

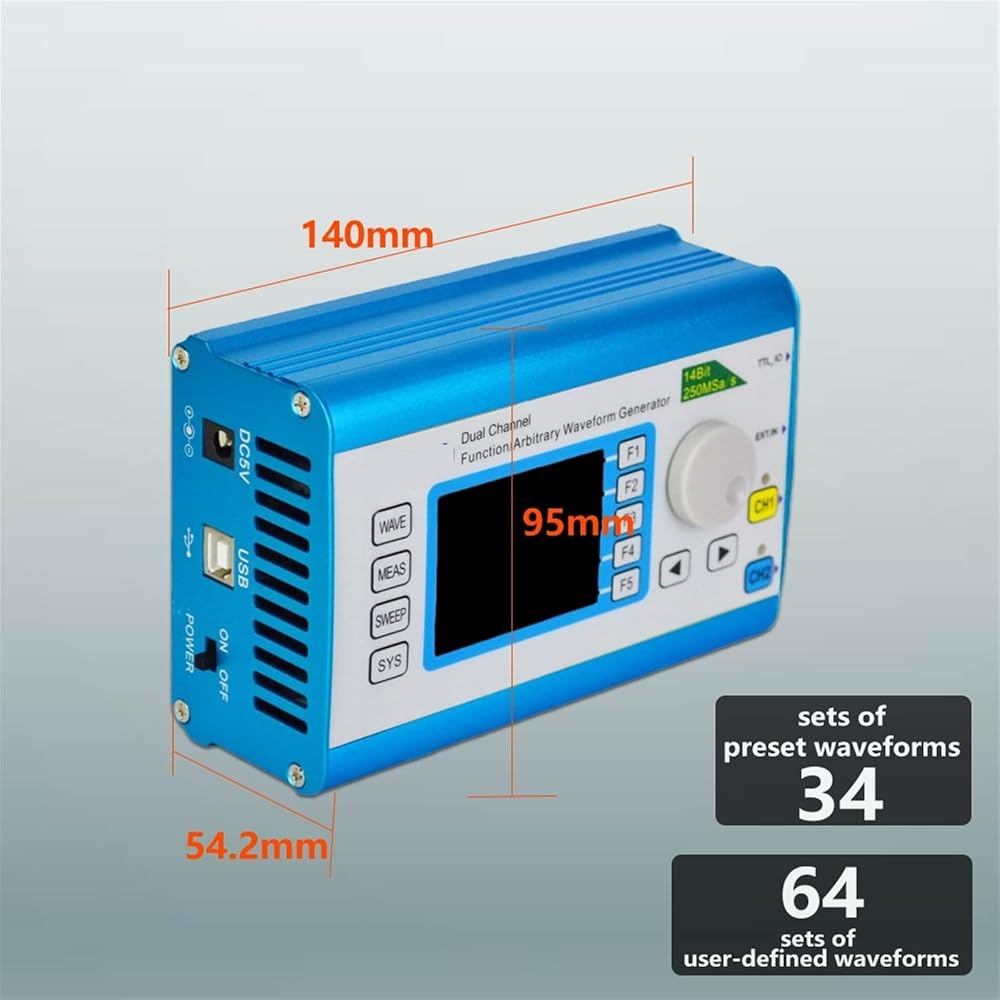

Package Size：140mm（Length）X95mm（Width）X54.2mm（Height）

Package Weight：Net Weight: 450g， Gross Weight: 750g
