●Standard extended adjusting terminal type: Output signal can be adjusted through pressing buttons or external extended potentiometers or encoders, etc.

●RS485 port Modbus communication type: output can be adjusted through pressing buttons and RS485 port communication, standard Modbus RTU protocol.

●1-channel analog signal output, 0-10V/2-10V voltage signal output, or 0-20mA/4-20mA current signal output. Other output ranges can be set through gain and offset parameters.

●Have offset, gain adjustment, curves output functions.

●Voltage signal output load impedance≥2KΩ, current signal output load impedance ≤500Ω.

●Operating power supply DC15-25V, power consumption 24V, 50mA

●Have polarity-reverse connection and anti-surge protection circuit, output terminal has anti-ESD protection.

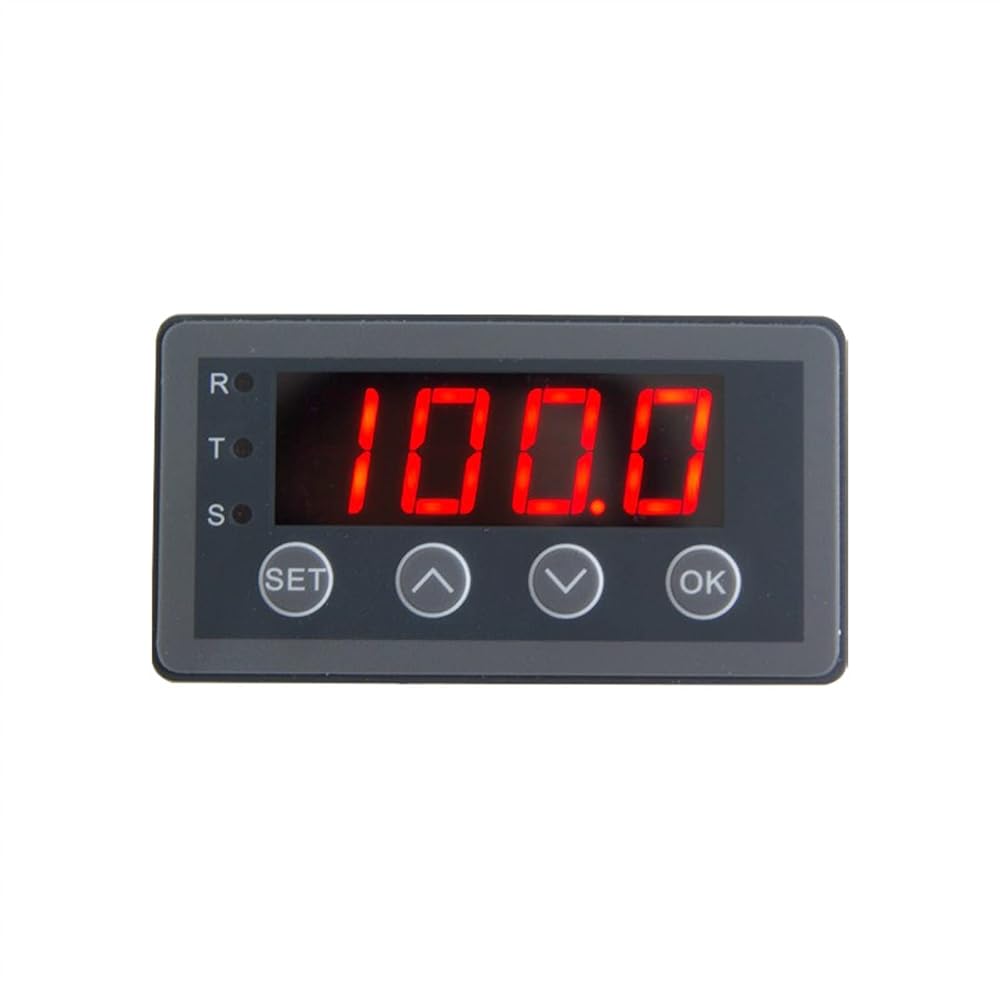

●0.56inch 4-byte LED tube accurate display.

●Parameters are programmable through four buttons.

●Front view dimension: 79x43x25mm. installation cut-out size: 76.5x39.5mm
