High Precision Current Signal Generator Adjustable Voltage 0-10V 5V 0-4-20mA Handheld Analog Source Calibrator

KWD 22.500
Brand
Generic
Weight
499 g
– 1 +

Special Features

  • Both the output range of voltage and current are programmable. Compatible with active and passive current source.
  • <0.05V after calibration, drive current 20mA.
  • <0.05mA after calibration, sampling resistance 500Ω.
  • Coarse adjustment fine adjustment dual mode, the number of adjustment turns can be set custom quick adjustment mode;
  • Fast signal output mode is more convenient for rapid debugging. Easy to use, user-friendly, simply twist the knob to adjust value and push it to confirm.

Description

Specifications:

Material: ABS

Voltage: -10V to +10V (default 0-10V)

Current: 0mA to 22mA (default 0-20mA)

AWG: 24 to 14

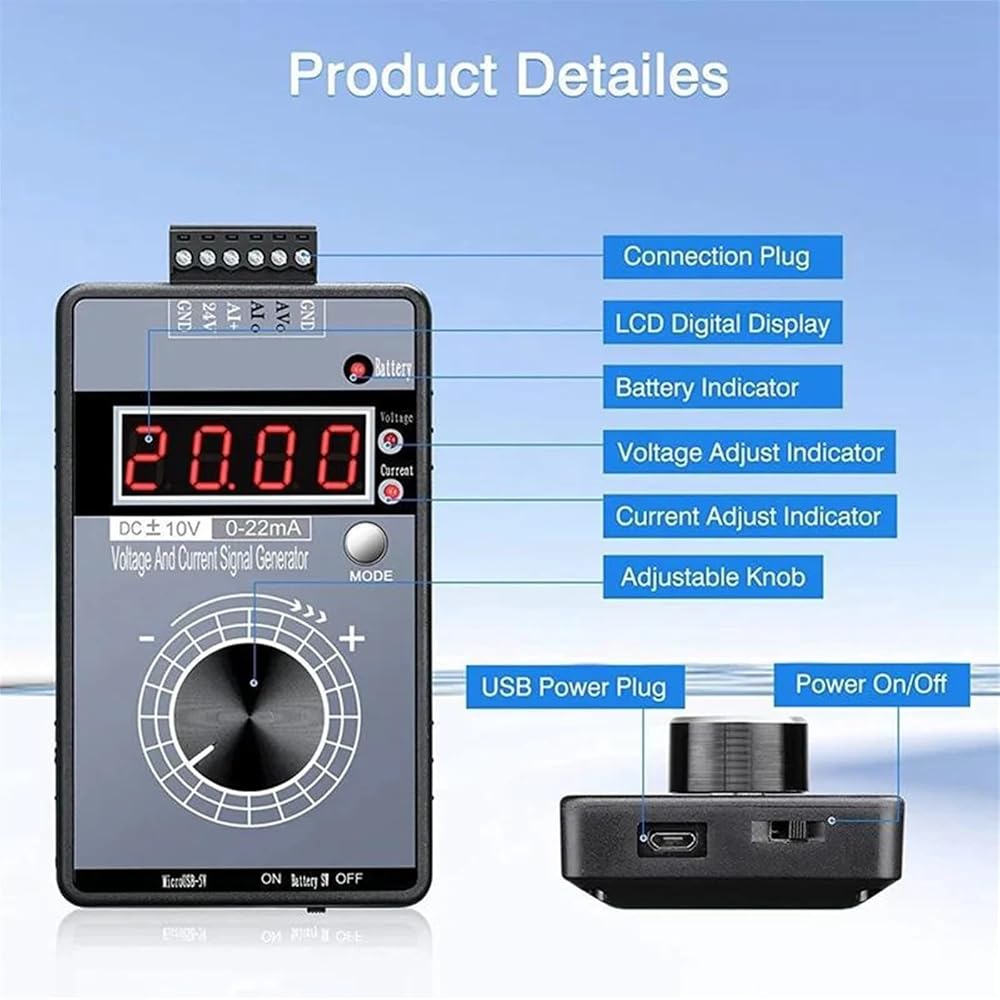

Wiring Diagram:
GND: power supply negative(input)
24V: power supply positive(input)
AL+: current passive mode 24+ input
AIO: current signal output
AVO: voltage signal output
GND: Signal ground (connect 1-GND)
