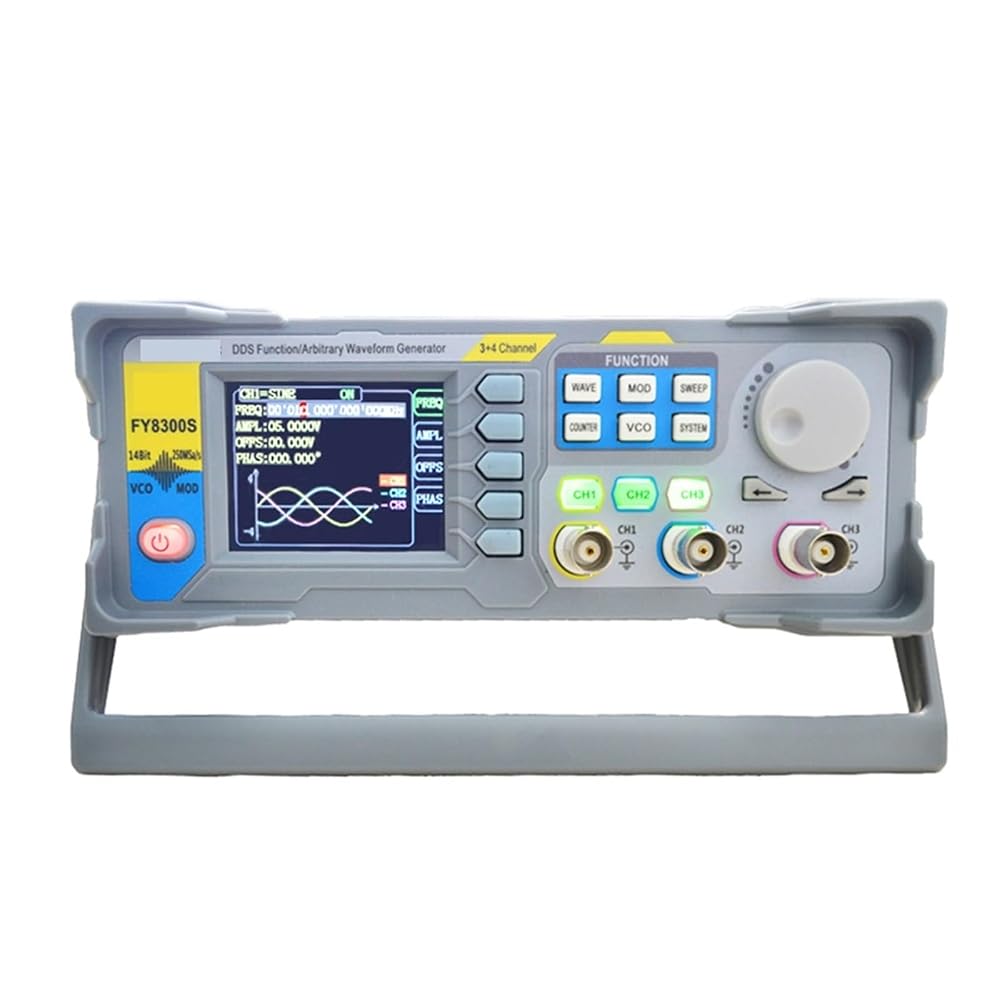

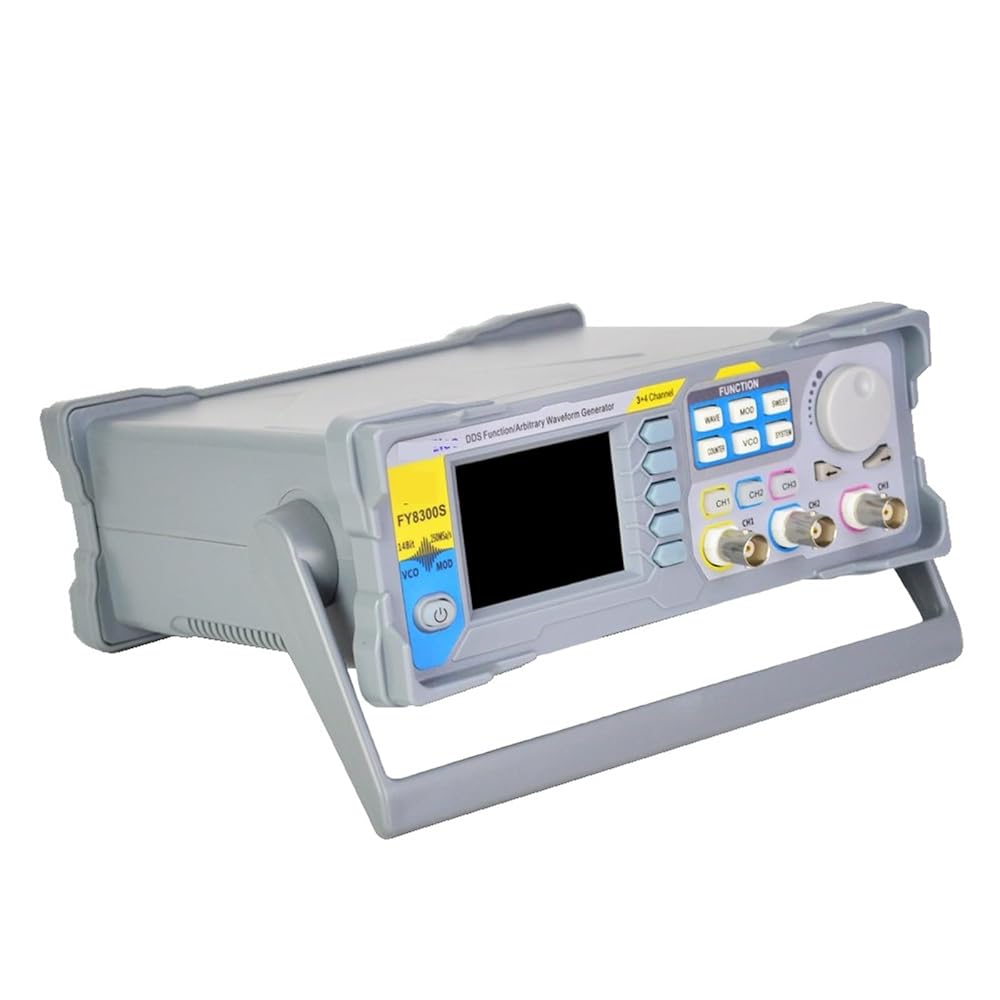

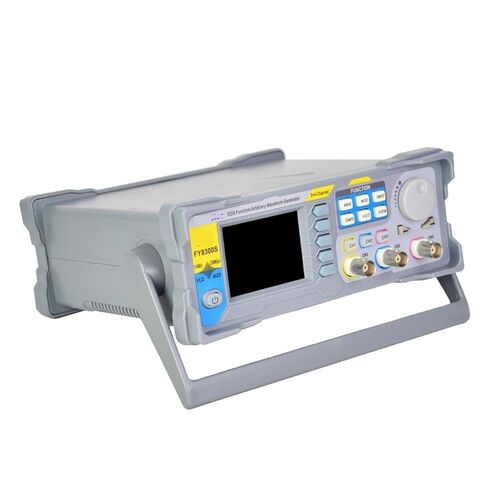

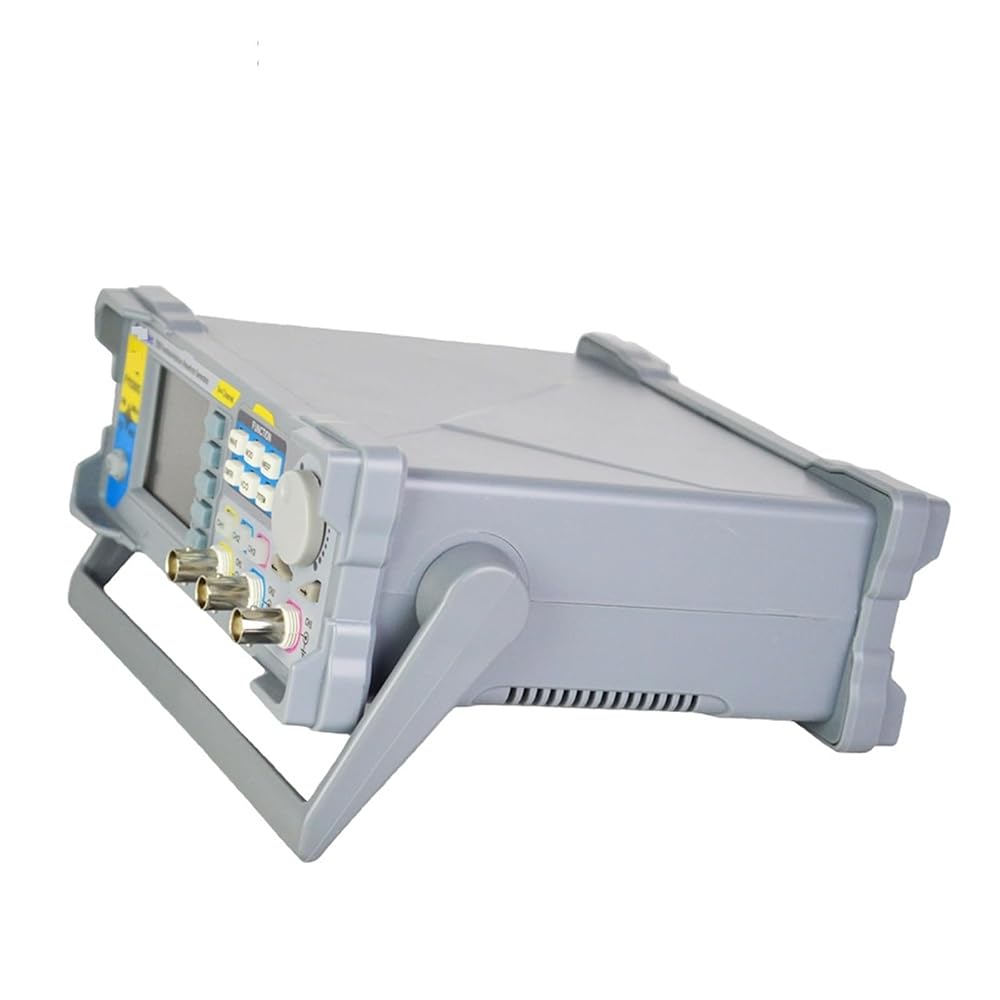

Three-channel Function / Arbitrary waveform generator is a set of Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Analog / Digital modulator, Four-Channel TTL Signal Generator, VCO, Sweep, Counters and Frequency Meter and other functions in a high Performance, cost-effective, multi-function signal generator.
Abundant shortcut keys and graphical user interface simplifies every operation. Users do not have to spend a lot of time to learn and familiar with the operation of the instrument, you can be skilled use. For education, research and development, production, testing, maintenance and other industries to provide a new choice.
The instrument adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.
Surface mounting technology improves interference immunity and operational life span. Can output up to 97 groups of functions / arbitrary waveform, contains 33 groups of preset waveforms and 64 groups of user-defined waveforms. Preset waveforms: Sine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, CMOS(0~12V), Four channels TTL, Exponential Rise, Exponential Fall, Noise, ECG, DC etc.

وصف

Model：FY8300S-20M

Sine：0~20MHz

Square：0~20MHz

Ramp, Triangle：0~10MHz

Pulse：0~10MHz

TTL/CMOS：0~10MHz

Arbitrary Waveform：0~10MHz

Minimum pulse width：20ns(All models of pulse wave minimum width can reach 20ns)

Min. Resolution on all frequency range：1μHz (Min. resolution can reach 1μHz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal).

Accuracy：±20ppm

Stability：±1ppm/ 3hours

Display：2.4 inch, TFT Color Display.

Save & Load
Amount：12
Position：01 to 12 (01 for start default value)

Interface：USB to Serial interface

Protocol：Command line mode, providing communication protocols.

Communicating Speed：115200bps (Industrial standard)

Power：AC100V~240V

Technic：SMD, LSI, Reliable and durable

Buzzer：Can be turned on/off by setting.

Operation：Buttons and knob continuously.

Environment：Temp.: 0~40℃, Humidity: ﹤80%

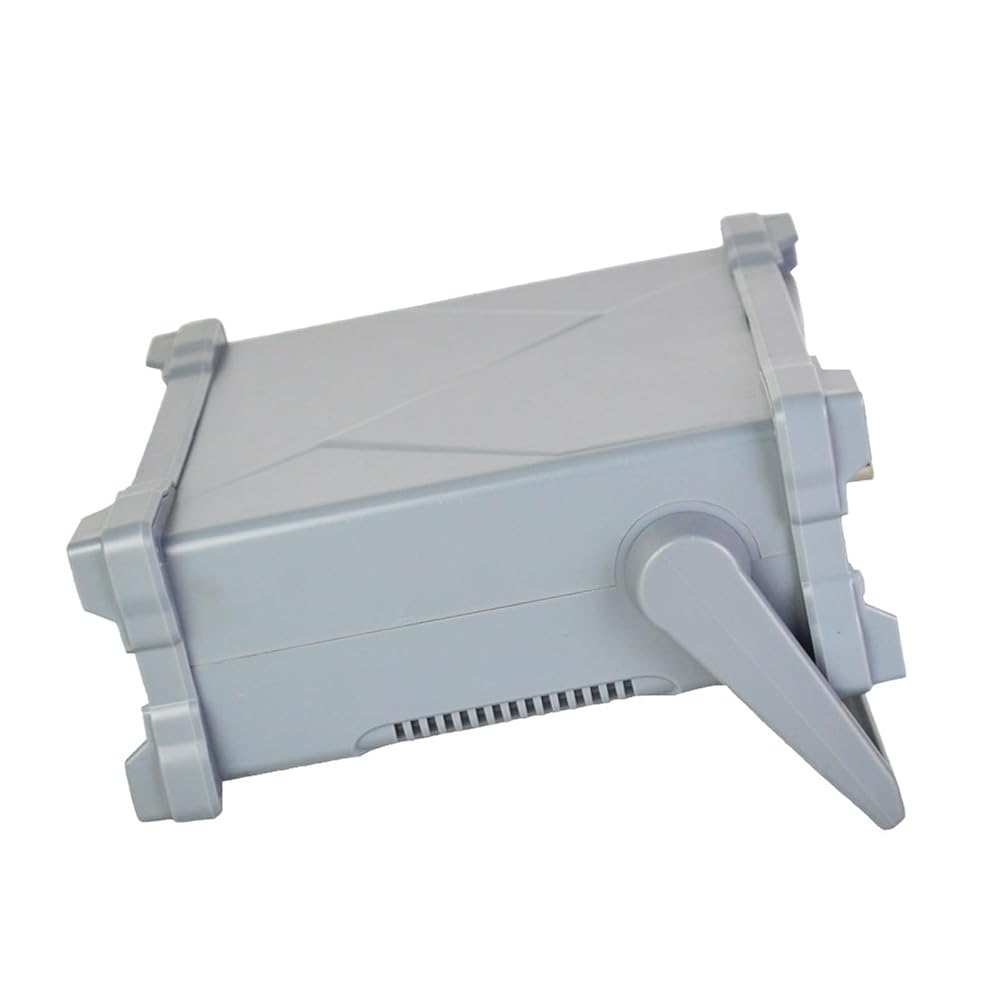

Size：200mm * 190mm * 90mm (L * W * H)

Weight：700g
