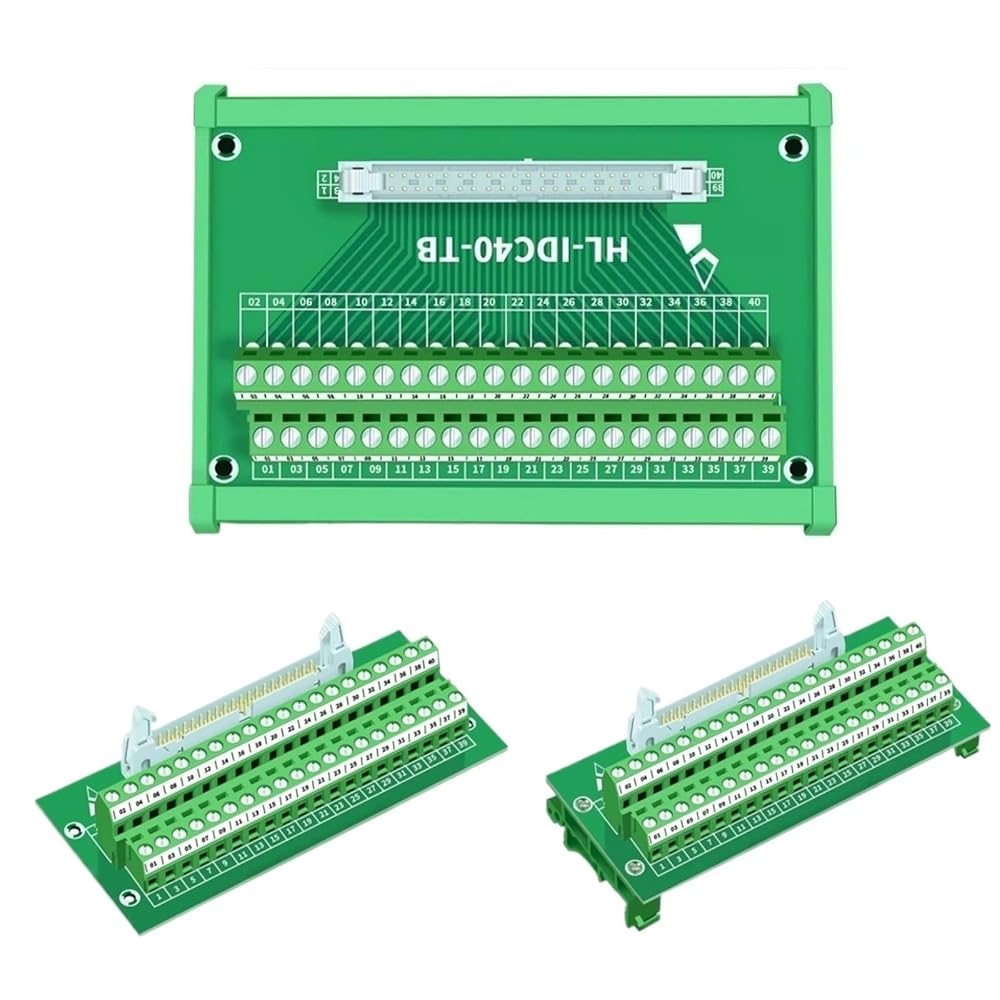

IDC40 Male To 40P Terminal Block Breakout Board Idc 40 Vonnector PLC Relay Adapter DIN Rail Mounting 2row C45 35mm

IDC-40DIN Rail Mounted Interface Module.
IDC pin pitch 2.54mm/0.1" male header connector.
Pitch 5.08mmscrew terminal block.
Din rail mountable - for width 35 / 32 / 15mm rails.
Din mount case can be taken apart for panel mount use.
PCB housing/carrier.
FR-4 fiber glass PCB, dual copper layers.
Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
==========
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
Model Number : IDC40
Voltage : 48V
Connector : IDC40
Gender : Male
Application : Lighting, breakout board
Type : IDC40
