Power Supplies

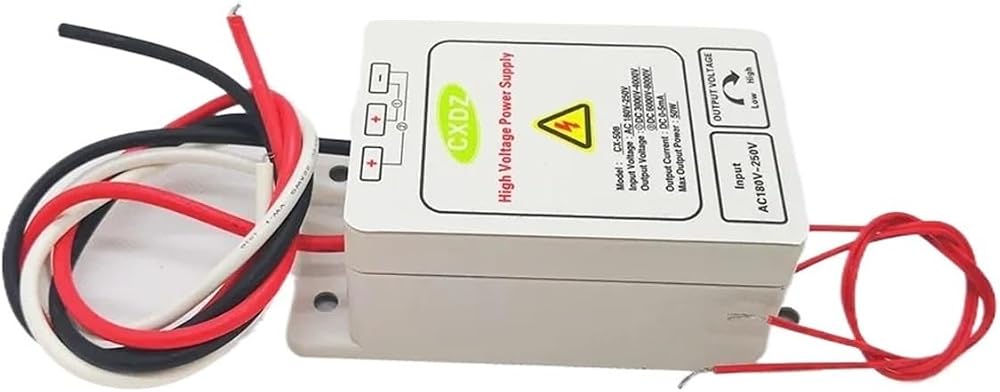

CX-50B Dual output
mainlyparameter:
Input Voltage:180V~260V(50hz/60hz) or 110V±10V(50hz/60hz)
Output Voltage:DC1:3KV~4KV DC2:6KV~8KV
Output Current:0-5mA
Size:131mm*67mm*50mm
Package Weight:0.6kg
(Either the positive output cable or the negative output cable can be connected to the Ground or used as 0V:
if you used the redoutput cable as 0V ,the blackoutput cable will generate -6kv~-8kvthe white output cable will generate -3kv~-4kv
if you used the white output cable as 0V ,the black output cable will generate -3kv~-4kvthe red output cable will generate +3kv~+4kv
if you used the black output cable as 0V ,the white output cable will generate +3kv~+4kvthe red output cable will generate +6kv~+8kv
Pretecting Functions:
2: short circuit protect
shortcut protection:
when the positiveoutput line and the negative output line are shorted ,the output voltage will be cut off
the HV power supply can generate the high voltage spark between the positive and negative cable.
you can change the output voltage with the protentiometer in the box.
Application occasions: High voltage electric field, Electrotatic aircleaner , electrostatic field ,clean smoke,air purifiers ,air ionizer,etc
click here to buy the Electrostatic Filter
How to use the high voltage power supply:
==========
High-concerned chemical : None
Model Number : CX-50B
