Power Supplies

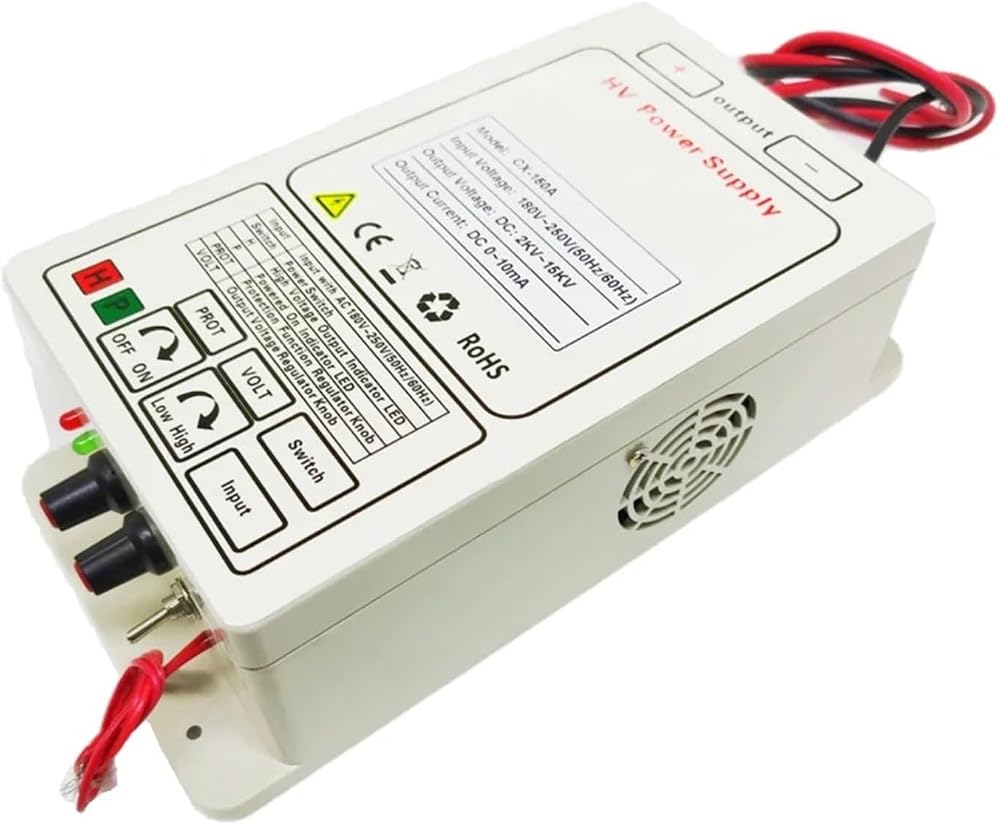

CX-150A Single output
mainlyparameter:
Input Voltage:180V~260V(50hz/60hz) or 110V±10V(50hz/60hz)
Output Voltage::2KV~15KV
(Either the positive output cable or the negative cable can be connected to the Ground:
if you used the positive output as 0V ,the negative output will generate -2kv~-15kv
if you used the negative output as 0V(GND)the positive output will generate +2kv~+15kv)
Output Current:0-10mA
Size:240mm*120mm*70mm
Type : Power Supply
EU LVD Voltage : High voltage: Above 50Vac or 75Vdc
Rated Capacity : 40-1000VA(include40VA)
High-concerned chemical : None
Output Power : 51 - 100W
is_customized : Yes
Output Current : 0-10mA
Model Number : CX-150A
Output Frequency : 0Hz
Output Type : SINGLE
Input : 180V~250V or 110V
Input Current : 0-1A
Output Voltage : 2KV~15KV
Output Current : 0-10mA
