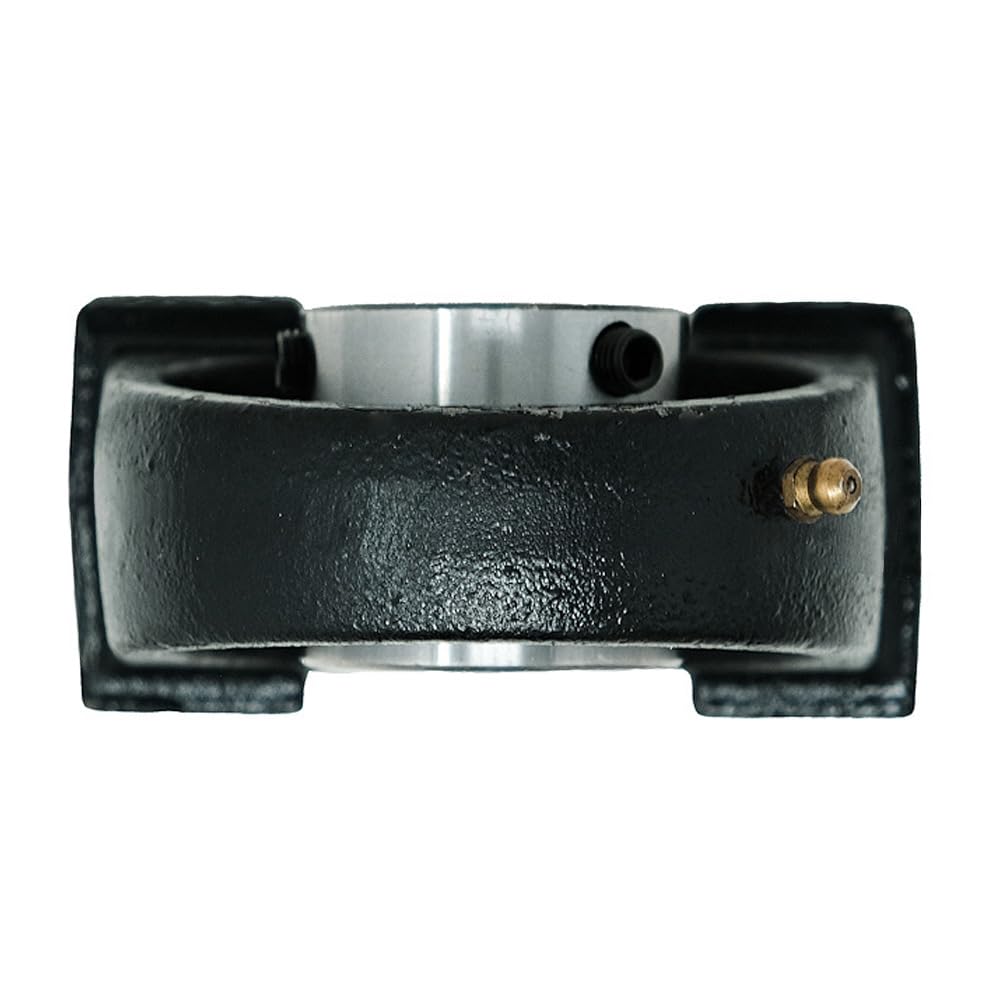

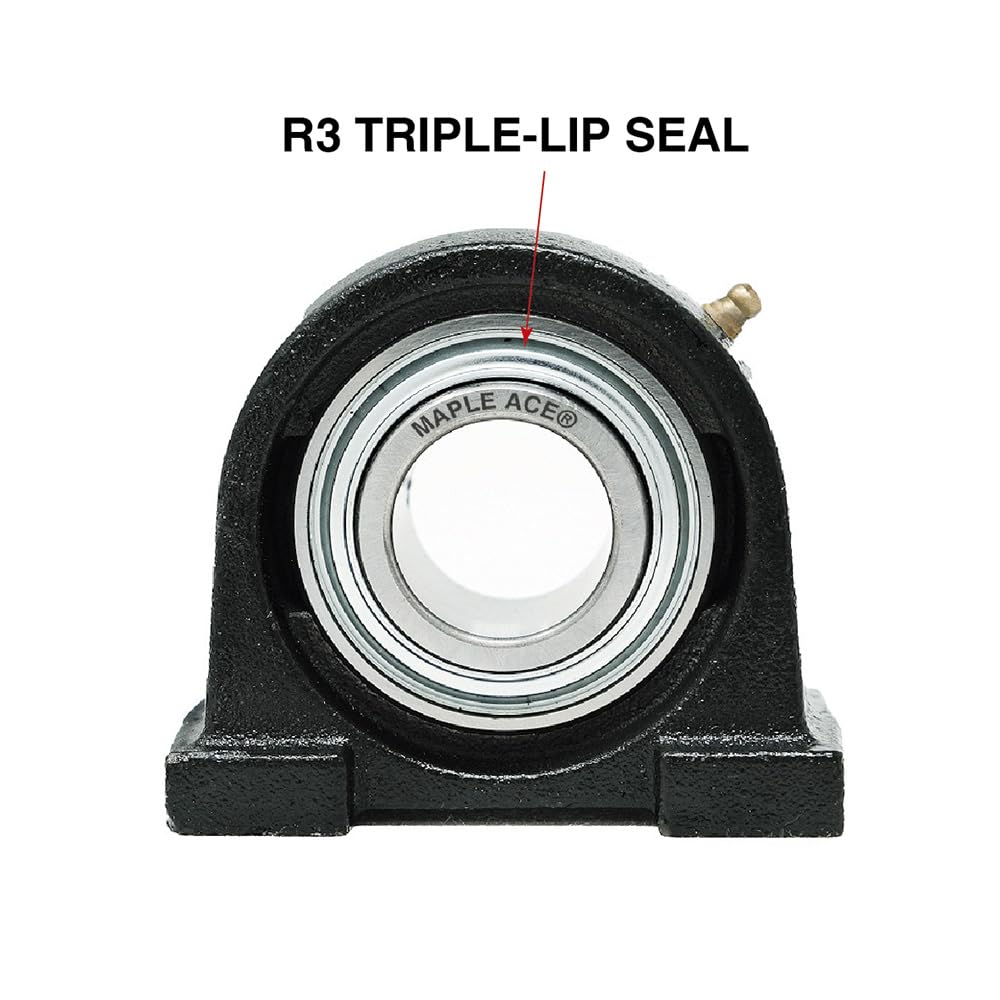

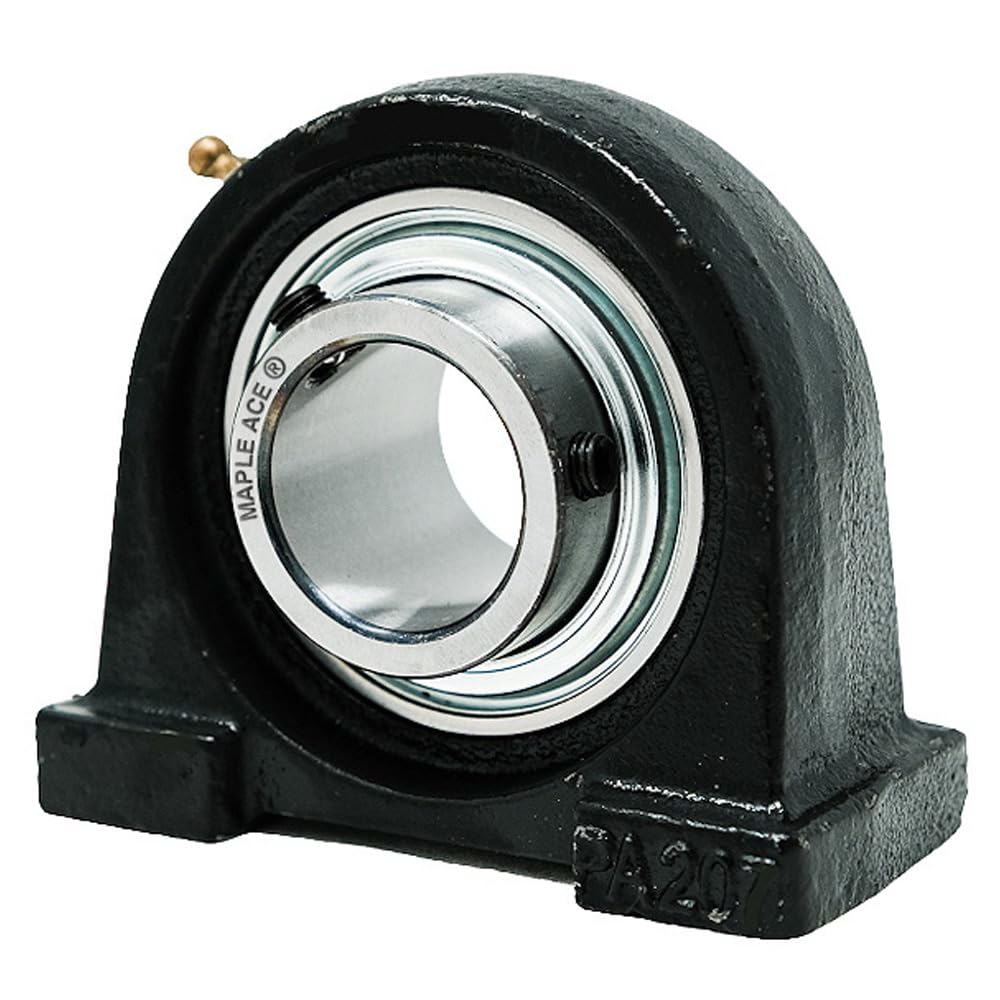

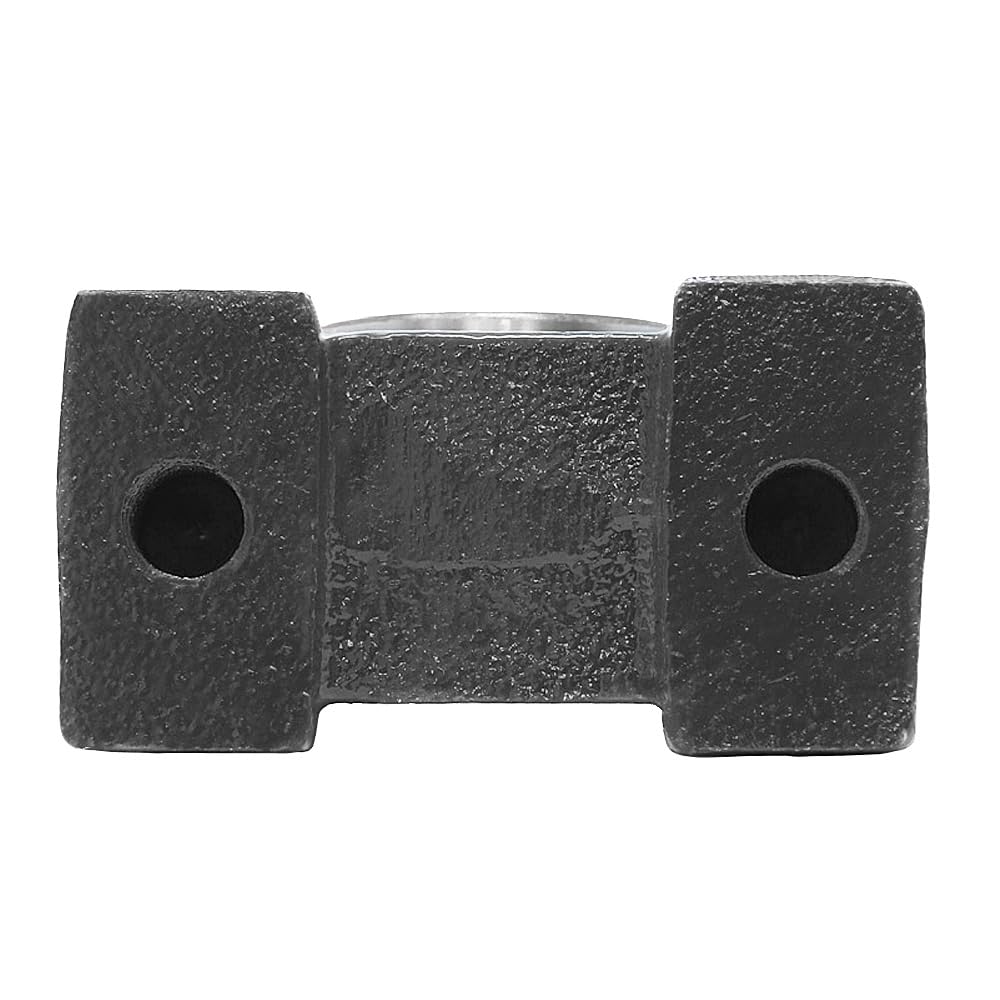

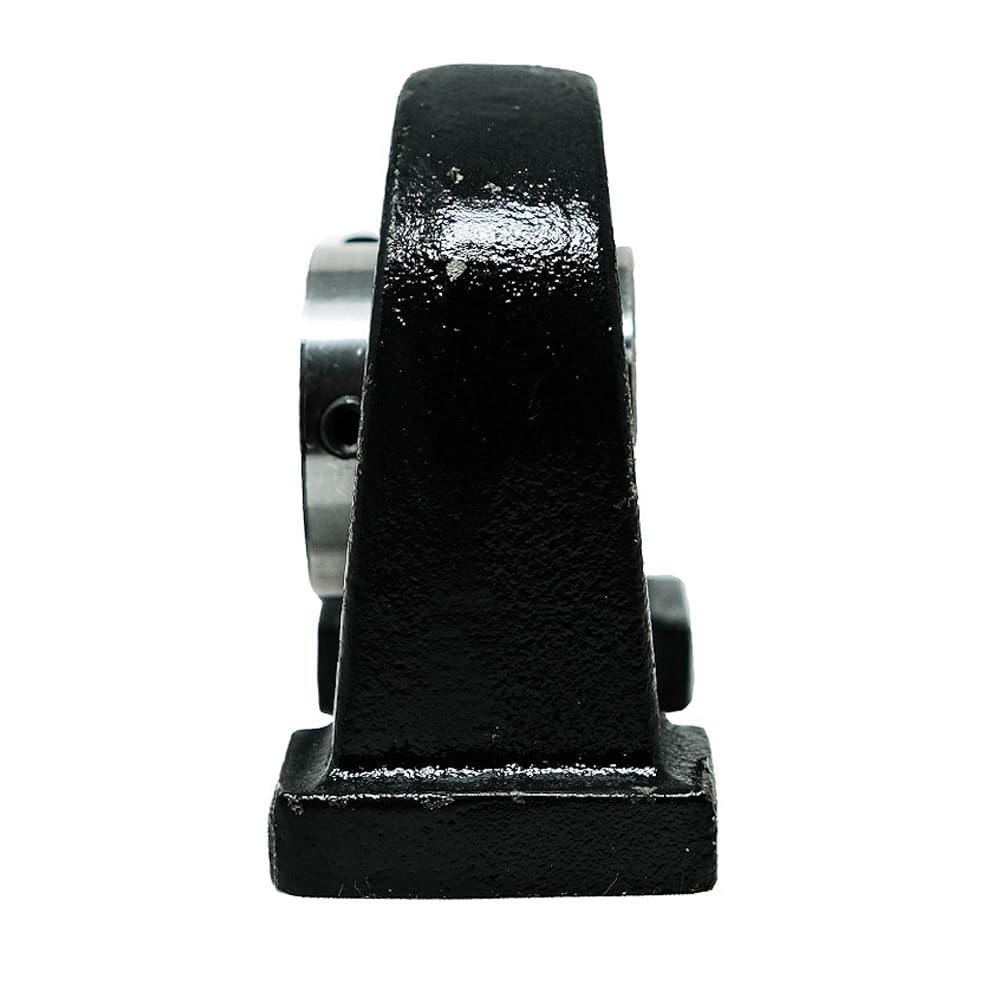

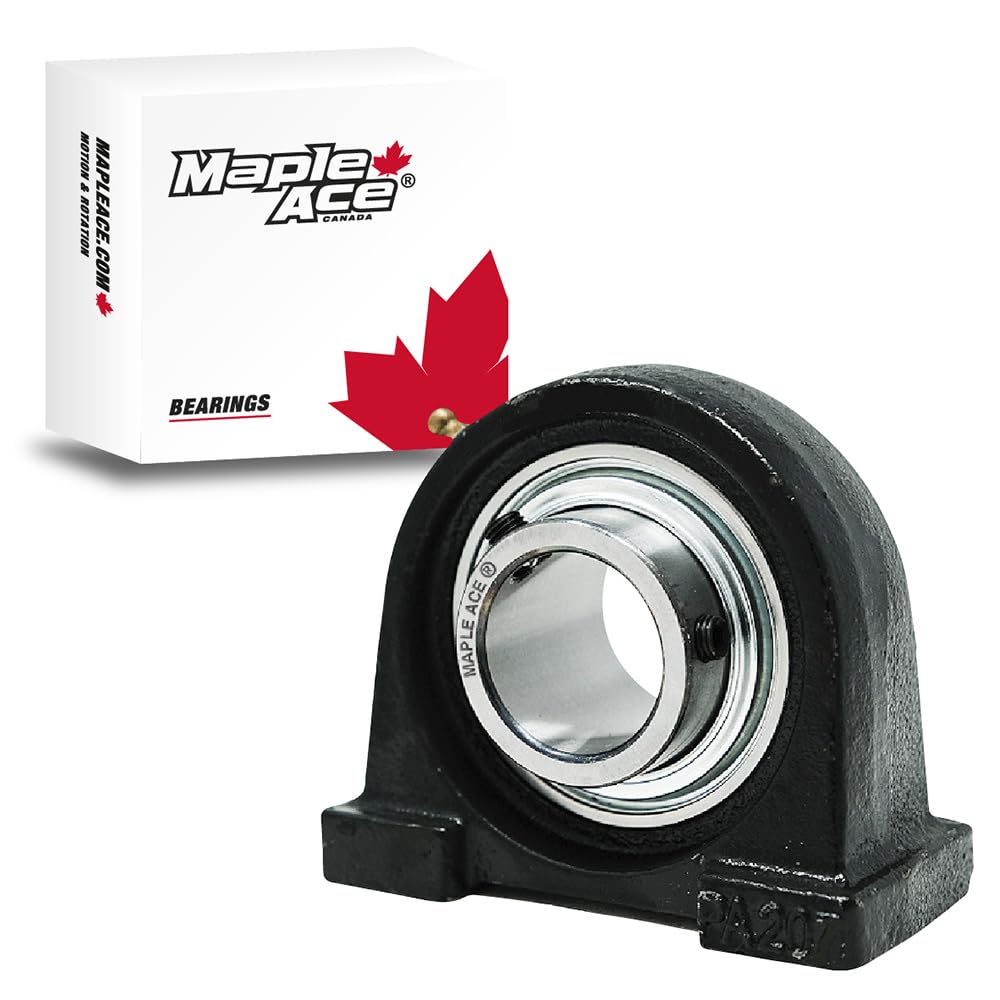

This UCPA PILLOW BLOCK TAPPED BASE MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing. The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes. Grease Fitting Offset on top, to Relubricate the bearing. Has a Set Screw Lock on its surface, for securing the shaft. - Specification: Item UCPA205-16R3, Series UCPA200, Bearing Number UC205-16R3, Housing Number PA205, Bearing Bore Diameter Metric 25.4 mm, Bearing Bore Diameter Inch 1.00 in, Bearing Width Inner Ring Matric 34.00 mm, Bearing Width Inner Ring Inch 1.339 in, Bolt Size 3/8 in, Number of Bolts 2, Bolt Hole Center to Center (e) Matric 56 mm, Bolt Hole Center to Center (e) Inch2.2 in, Overall Length (a) Matric 70 mm, Overall Length (a) Inch 2.756 in, Overall Height (w) Matric 70 mm, Overall Height (w) Inch 2.756 in, Overall Width (b) Matric 36 mm, Overall Width (b) Inch 1.417 in, Mounting Surface to Shaft Center (h) Matric 36.5 mm, Mounting Surface to Shaft Center (h) Inch 1.433 in, Dynamic Load Rating Cr 9560 N, Static Load Rating Cor 4750 N, Limiting Speed 9500 r/min, Clearance Normal, Bearing Sealing type R3 Triple-Lip Seal, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Rolling Element Indicator Ball, Bearing Material Gcr15, Housing Material H200 Cast Iron, Locking Type Set Screws, Weight 0.660 KG.
