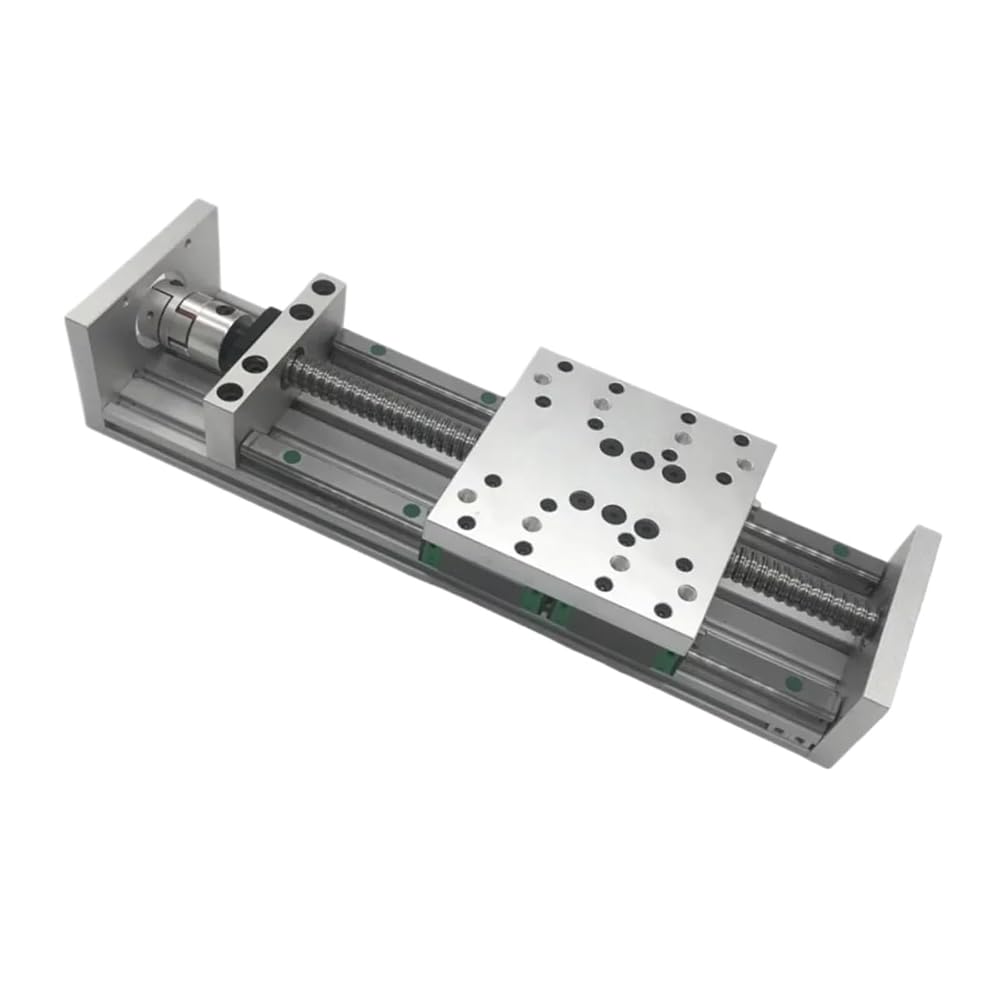

1PCS Heavy Duty 100mm Width Linear Rail Sliding Table SFU1605/1610 BallScrew 50-1200mm XYZ Actuator for CNC HGR15 Guide
If you choose '' For Nema23 Bracket '':
1* SXG120*120 Sliding Table
1* 8mm Coupling For Nema 23 57mm Stepper Motor
If you choose '' For Nema34 Bracket '':
1* SXG120*120 Sliding Table
1* 14mm Coupling For Nema 34 86mm Stepper Motor
If you choose ''For 60 Servo Bracket'':
1* SXG120*120 Sliding Table
1* 14mm Coupling For 60mm Servo Motor
If you choose ''For 80 Servo Bracket'':
1* SXG120*120 Sliding Table
1* 19mm Coupling For 80mm Servo Motor
Model:SXG120*120
Ballscrew type:SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1610
Ballscrew accuracy:C7 level
Effective stroke: 50mm-1200mm Optional
Total length: Effective stroke+207mm
Mobile panel size: 120*120mm
Slide width: 100mm
Guide diameter: 15mm
Guide Type:2*HGR15
Slider Type:2*HGH15CA
Horizontal load: Max 100KG
Vertical load: Max 50KG
Maximum speed:500mm/s
Ballscrew Repeat positioning accuracy: 0.02-0.03mm
Supported motor bracket : Nema 23 /34stepper motor;60/80 Sevor Motor
Ballscrew and linear rail material: Carbon steel and bearing steel
Base plate material: Aluminium alloy
Model Number : SXG120*120
Guide Width or Diameter : 15mm
Ballscrew type : SFU1605/SFU1610
Ballscrew accuracy : C7 level
Effective stroke : 50mm-1200mm Optional
Slider Type : 2*HGR15
Maximum speed : 500mm/s
Repeat positioning accuracy : 0.02mm-0.03
Slide Material : Aviation aluminum
