1PCS 150mm Double Linear Guide Heavy Duty Ballscrew Sliding Table SFU1605/2005/2010 X Y Z Axis Stage Actuator 4 HGR15
If you choose ; For Nema23 Bracket ;:
1* SXG150*125 Sliding Table
1* 8mm Coupling For Nema 23 57mm Stepper Motor
If you choose ; For Nema34 Bracket ;:
1* SXG150*125 Sliding Table
1* 14mm Coupling For Nema 34 86mm Stepper Motor
If you choose ;For 60 Servo Bracket;:
1* SXG150*125 Sliding Table
1* 14mm Coupling For 60mm Servo Motor
If you choose ;For 80 Servo Bracket;:
1* SXG150*125 Sliding Table
1* 19mm Coupling For 80mm Servo Motor

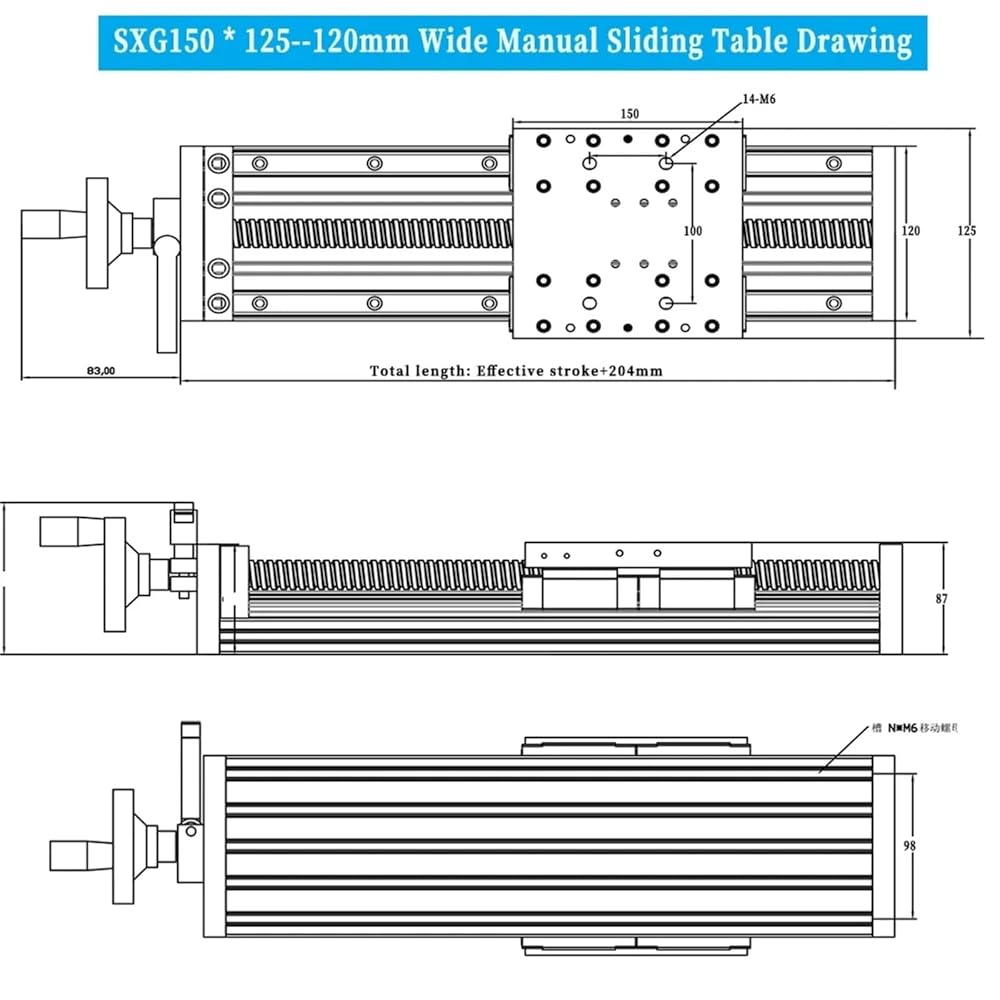

1.3D drawings can be obtained by contacting customer service
2.To build XZ, XY, XYZ axis, it is necessary to customize the connecting plate, please contact customer service for quotation.
3. If you need a slide table with a stepper motor and driver, please contact customer service for quotation.

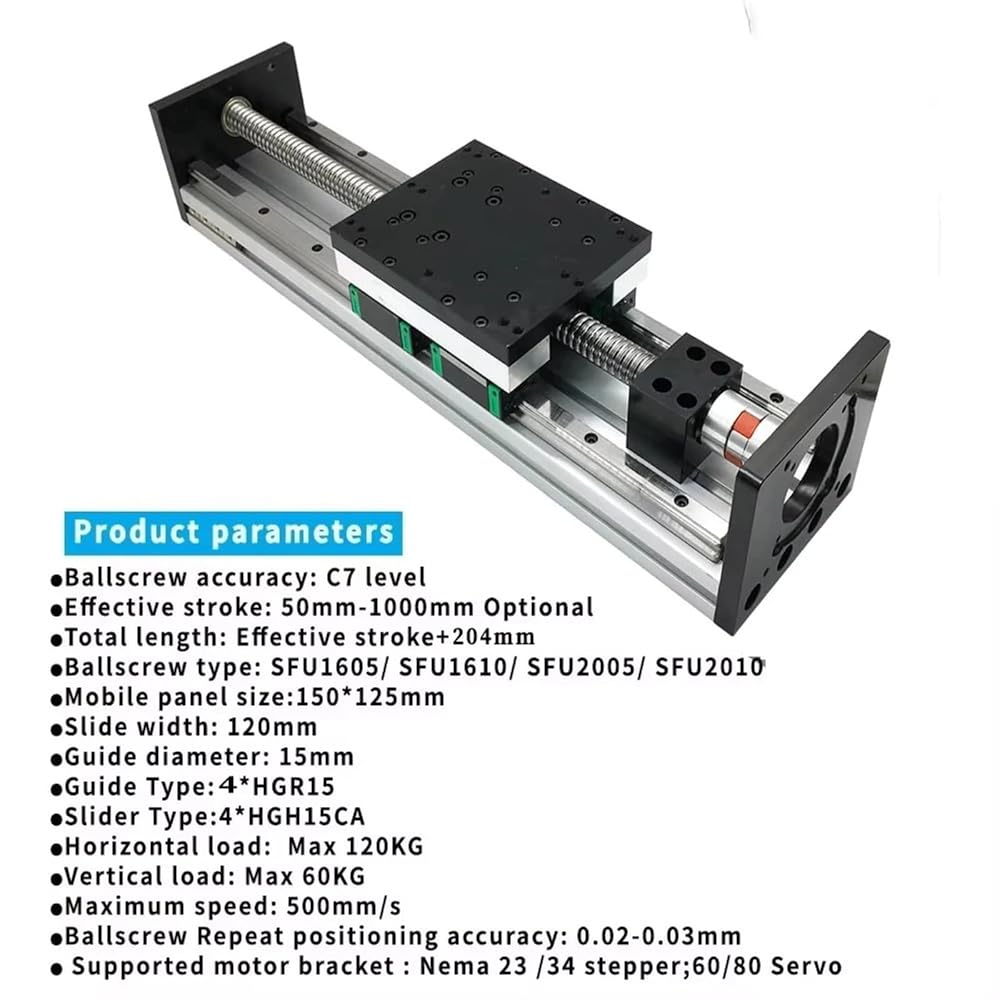

Model: SXG150*125
Ballscrew type: SFU1605 / SFU1610/ SFU2005/ SFU2010
Ballscrew accuracy: C7 level
Effective stroke: 50mm-1000mm Optional

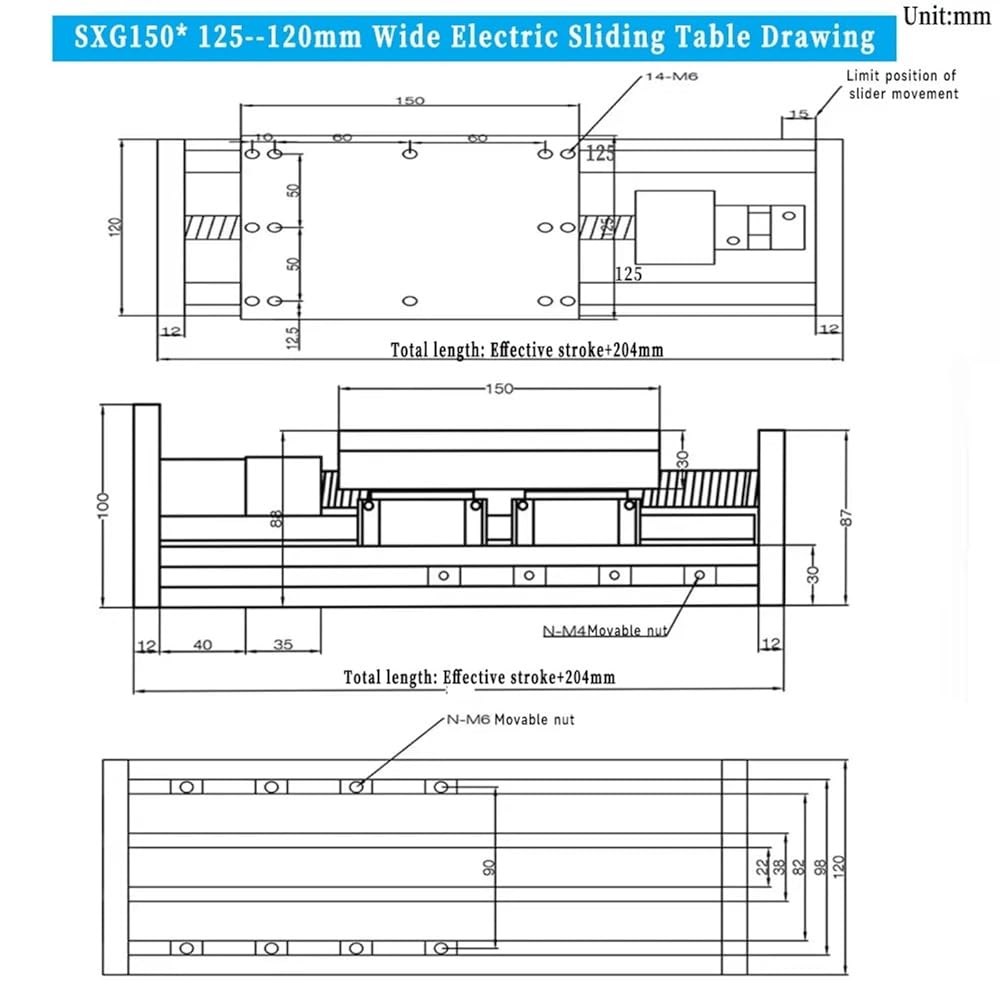

Total length: Effective stroke+204mm

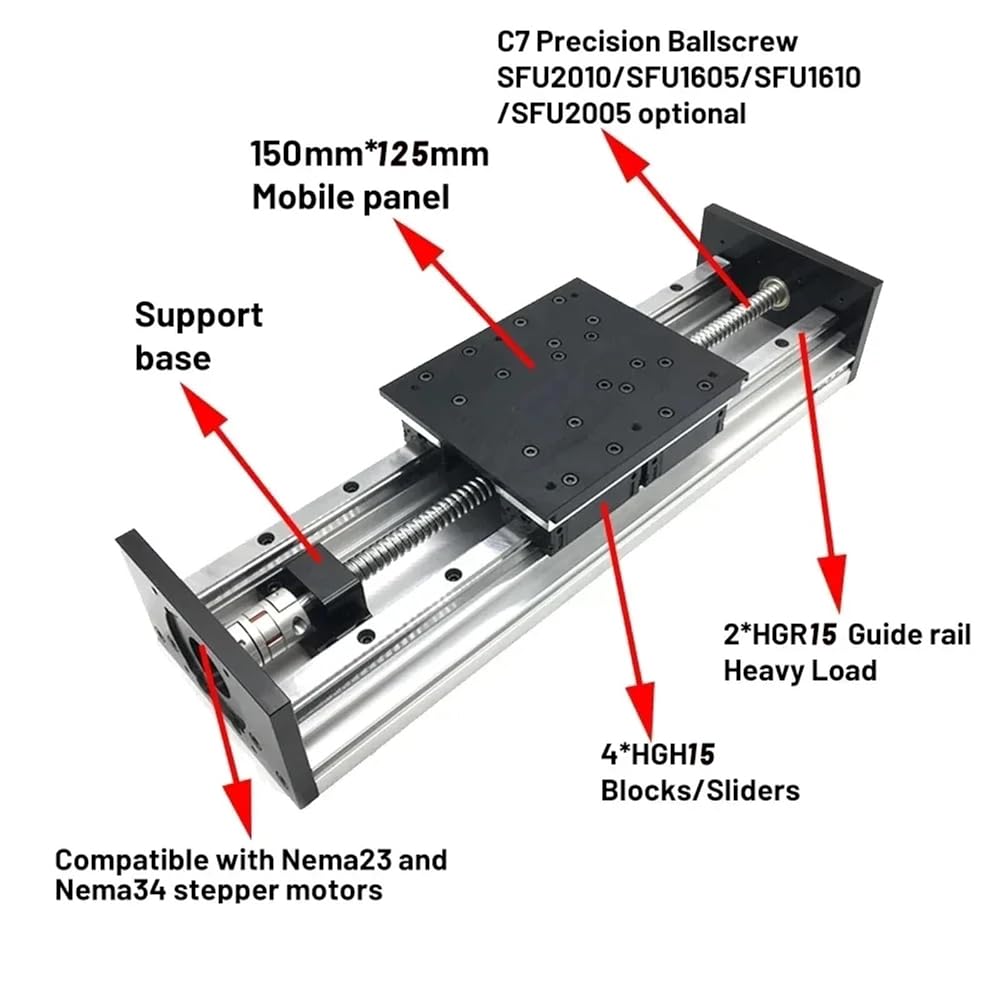

Mobile panel size: 150*125mm
Guide diameter: 15mm
Guide Type: 2*HGR15
Slider Type:4*HGH15CA

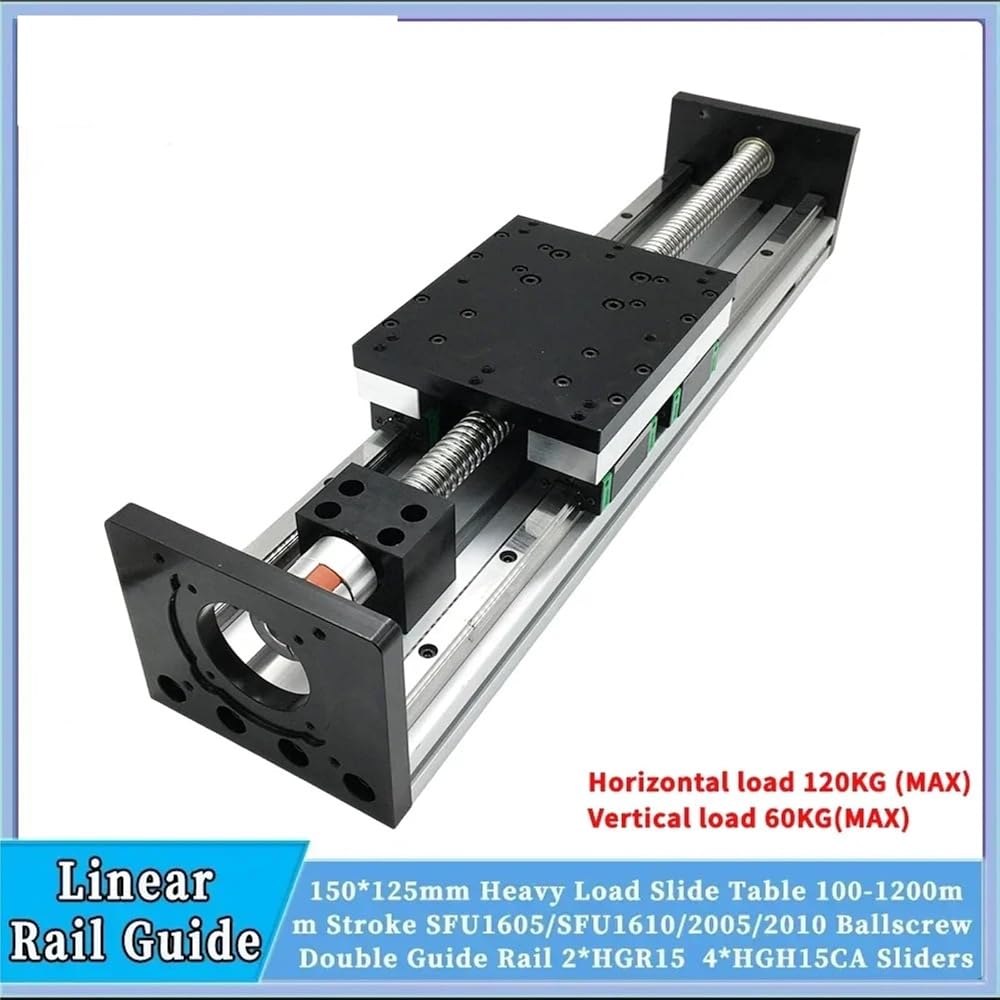

Horizontal load: Max 120KG
Vertical load: Max 60KG
Maximum speed: 500mm/s
Ballscrew Repeat positioning accuracy: 0.02-0.03mm
Supported motor bracket : Nema 23 /34stepper motor;60/80 Sevor Motor
Ballscrew and linear rail material: Carbon steel and bearing steel
Model Number : SXG150*125
Ballscrew type : SFU1605/SFU1610/SFU2005/SFU2010
Maximum speed : 500mm/s
Repeat positioning accuracy : 0.02mm-0.03
Slide Material : Aviation aluminum
Type 1 : linear actuator
Type 2 : z axis cnc
Type 3 : linear rail
Type 4 : cnc z axis
Type 5 : linear stage
Type 6 : xy table
Type 7 : cnc axis
Type 8 : sliding table
Type 9 : linear guide
Type 10 : linear guide rail
Type 11 : linear axis
Type 12 : xyz stage
