MATEKSYSSYS 12S Pro BEC - 9-55V to 5V/8V/12V - 5A - 0.5 - Blue in Kuwait MATEKSYSSYS 12S Pro BEC - 9-55V to 5V/8V/12V - 5A - 0.5 - Blue in Kuwait

MATEKSYSSYS 12S Pro BEC - 9-55V to 5V/8V/12V - 5A - 0.5 - Blue

KWD 10.500

Brand
MatekSys
Weight
14 g
1 +

Special Features

  • The MATEKSYSSYS 12S Pro BEC features a wide 9-55V Operating Input Range, 3x Output Voltage Options 5V/8V/12V and Supports continuous output current of up to 5A, peak current of 9A. This voltage regulator also features a synchronous switching step-down (buck) regulator, thermal Shutdown, output Short-circuit tolerance (2 seconds), overcurrent protection & self-recovery and much more!Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electr

Description

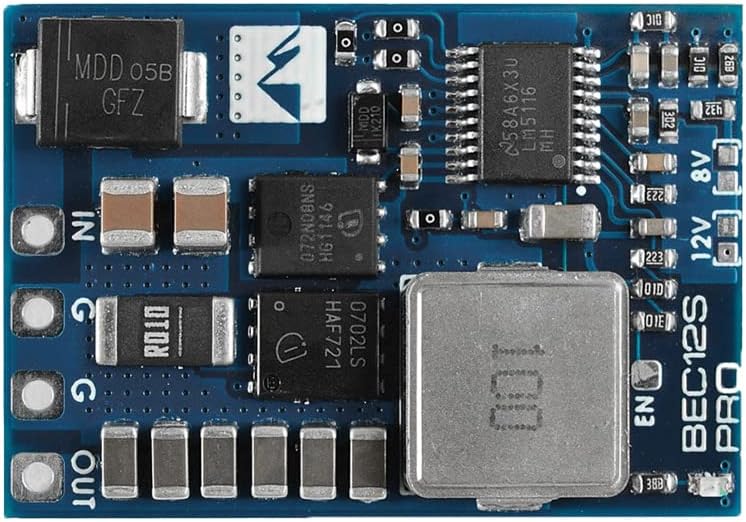

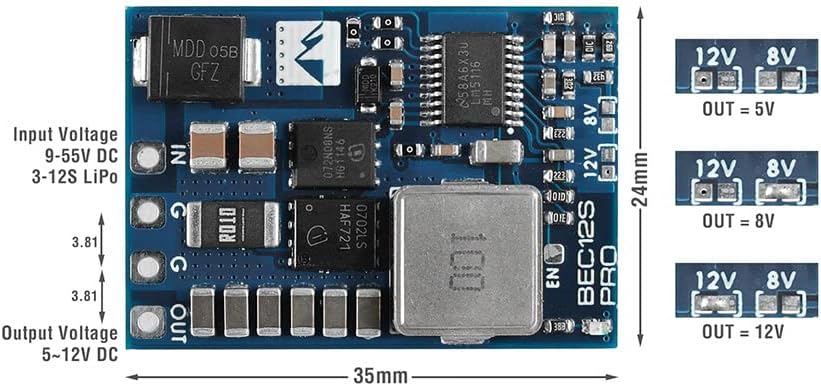

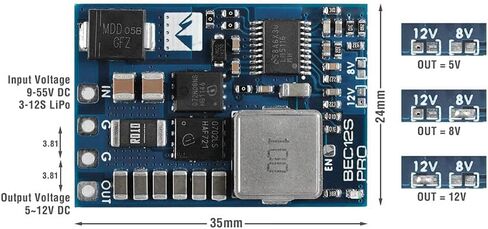

The MATEKSYSSYS 12S Pro BEC features a wide 9-55V Operating Input Range, 3x Output Voltage Options 5V/8V/12V and Supports continuous output current of up to 5A, peak current of 9A. This voltage regulator also features a synchronous switching step-down (buck) regulator, thermal Shutdown, output Short-circuit tolerance (2 seconds), overcurrent protection & self-recovery and much more!Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)VIDEO: (Insert Video Title here in Bold)FeaturesSynchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%Output ripple 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)Dropout voltage: 2V (Input>=14V is required for stable 12V output)Supports continuous output current of up to 5A, peak current of 9AWide 9V to 55V Operating Input Range with TVS protection3x Output voltage options, 5.2V, 8V or 12V. Default 5.2VOutput Short-circuit tolerant (2 seconds)Overcurrent protection & self-recoverySize & Weight: 35 x 24 x 5.5mm, 5gNo reverse-input voltage protectionStandby current: 5~10mAPins distance: 3.81mmPacking: 1pc/packageThermal ShutdownUSE BULLETED FEATURE HERE IN BOLD CAPS.Add additional feature descriptions here to describe the above.USE BULLETED FEATURE HERE IN BOLD CAPS.Add additional feature descriptions here to describe the above.SpecificationsOutput ripple: 30mV (VIN=50V, Output 5.2V @ 5A), 60mV (VIN=50V, Output 12V @ 5A)Dropout voltage: 2V (Input>=14V is required for stable 12V output)Operating Input Range: 9V to 55V with TVS protectionOutput voltage options: 5.2V, 8V or 12V. Default 5.2VBuck regulator efficiency: 88% to 96%Standby current: 5~10mASize: 35 x 24 x 5.5mmPins distance: 3.81mmPacking: 1pc/packageWeight: 5gIMPORTANT NOTESInsert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."Recommended (Not Included) (Insert recommende
