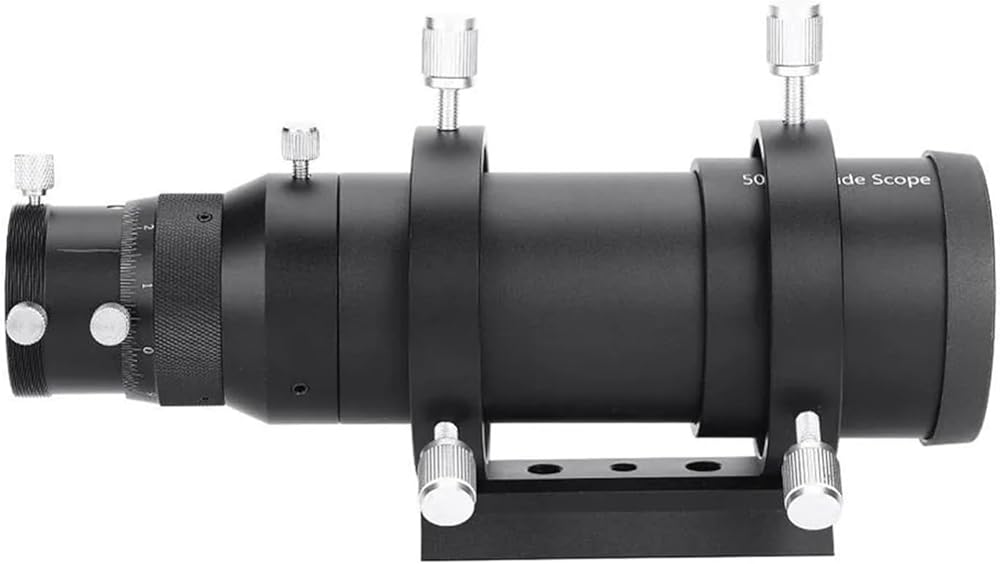

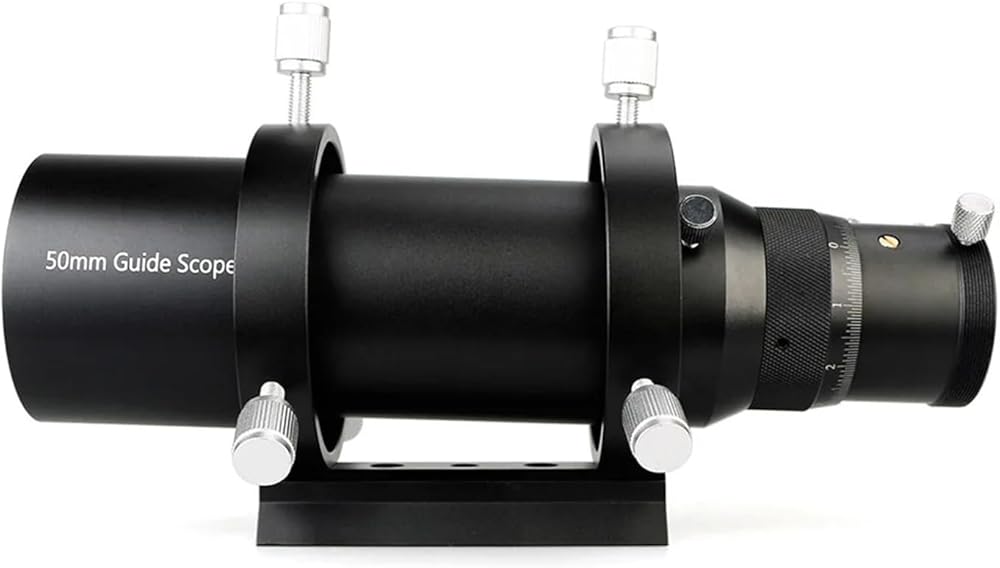

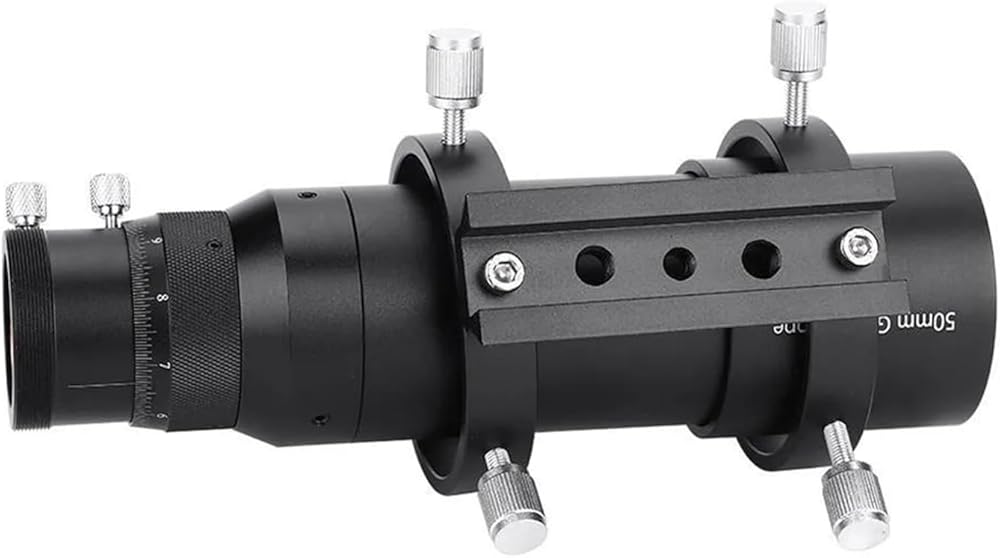

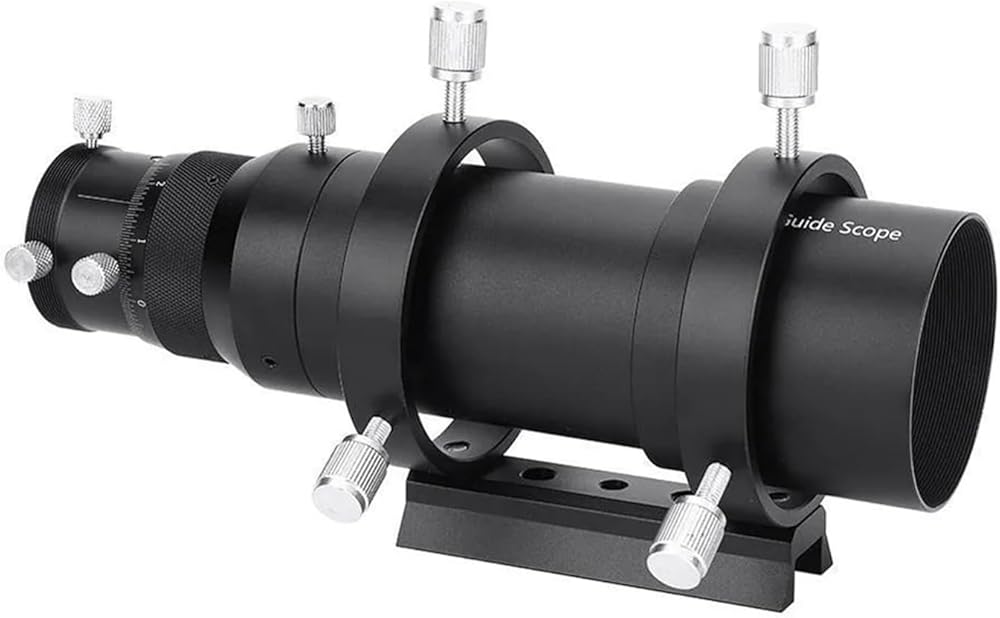

50mm Guide Scope Multi-Use CCD Imaging with Helical Focuser for Astronomy Camera Black
This solidly built 50mm Guide Scope will help guide you to capturing higher quality astrophotos. With its 50mm lens and smooth helical focuser, the versatile 50mm Multi-Use Guide Scope with Helical Focuser is an ideal addition to any astrophotographers collection of gear. What's more, you can use this handy scope as a deluxe, straight-through 50mm finder by inserting an optional 1.25" eyepiece (sold separately). A practical benefit of this is that prior to guiding, you can insert an eyepiece into the guide scope and easily align the guide scope with your main imaging telescope. Then remove the eyepiece and attach your autoguider camera.
For those nights when you don't plan to capture astrophoto exposures, this versatile Guide Scope can double as a straight-through finder scope with an optional 1.25" eyepiece installed. For example, inserting a 20 mm eyepiece creates a 9.5x50 finder scope, or you can insert one Illuminated Centering Eyepieces for use as a finder with illuminated crosshairs for easy aiming. (Eyepieces sold separately).
Features:
Compact mini guide scope designed for use with astrophotography telescopes
190mm focal length. Compact mini guide scope designed for use with astrophotography telescopes up to 1500mm focal length
50mm guide scope with bright, wide-field optics puts numerous potential guide stars in view
Very small and compact auto guiding system adds hardly any weight to an astrophotography setup and can conveniently be stashed in an accessory case between uses
Quick focus retractable tube with 1mm scale, can be locked in place
Precision non-rotating micro-focuser with 1/10mm scale
The main focus of the finder eyepiece PL level
Specification
Aperture 50mm / 1.97in
Focal Length: 190mm / 7.48in
Focal Ratio: F4
Rough Focusing Range: 30mm
Focuser: Helical Focuser with 8 mm Travel
Connection to eyepiece: 1.25inch

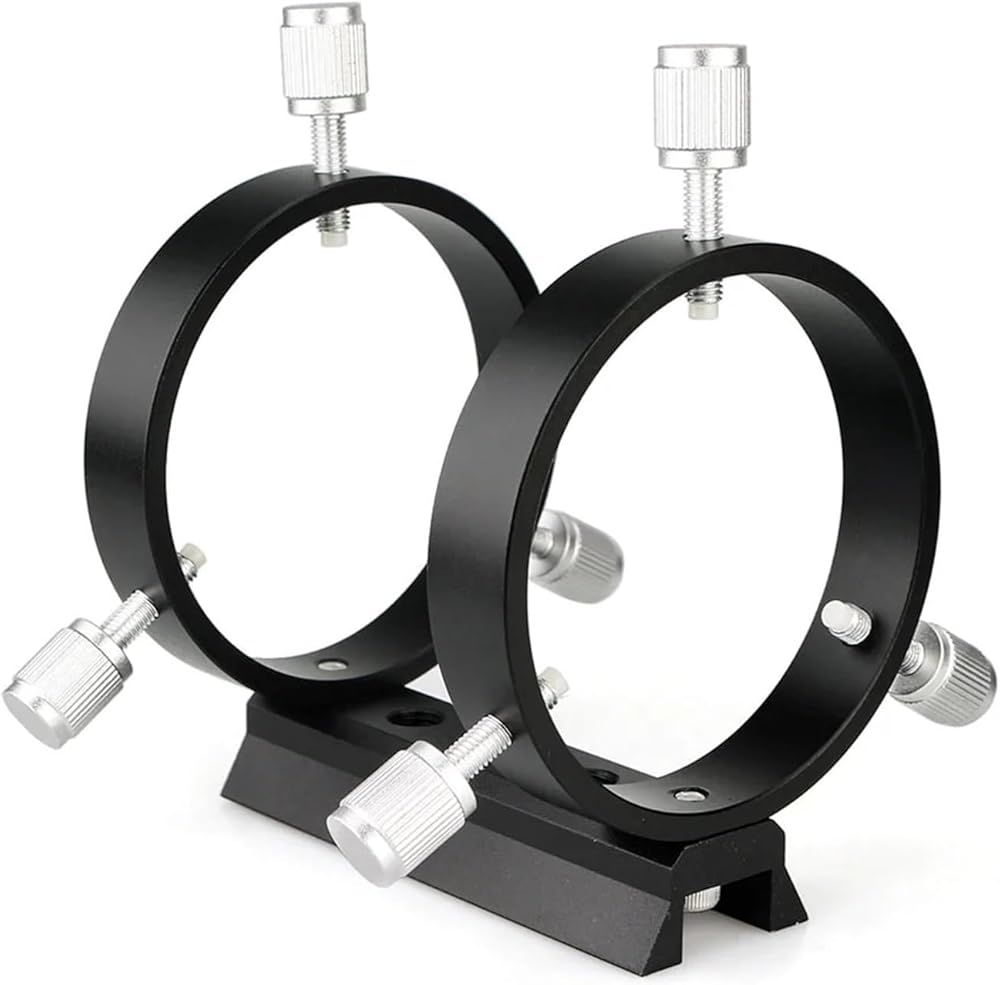

Included accessories: Tube Rings and Dovetail Rail
Net Weight: Approx. 604g / 21.31oz

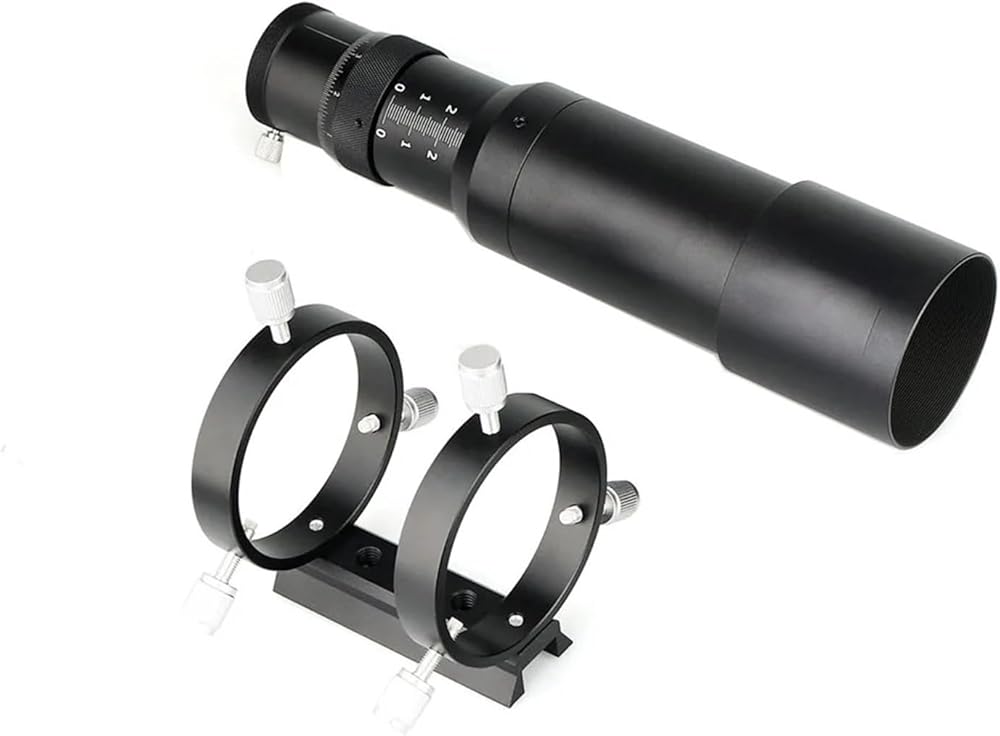

Package Includes:
Primary Mirror
Guiding Bracket w/ 89mm Dovetail Plate
1.25inch Helical Focuser
Thumbscrews
==========
High-concerned chemical : None
Lens Diameter : 50mm
Focal Length : 190mm / 7.48in
Type : Monocular
Aperture : 50mm / 1.97in
Focal Length : 190mm / 7.48in
Focal Ratio : F4
Rough Focusing Range : 30mm
Connection to eyepiece : 1.25inch
50mm Guide Scope : for Astronomy Camera
Guide Scope Kit : for Monocular Telescope
CCD Imaging Guide Scope : with Helical Focuser
Focuser : Helical Focuser with 8 mm Travel
50mm Guide Scope Finderscope : For Monocular binocular eyepiece
