All-metal or high-strength engineering plastic construction for durability. Lenses have anti-reflective coatings for better light transmission. Some models include a dew shield.

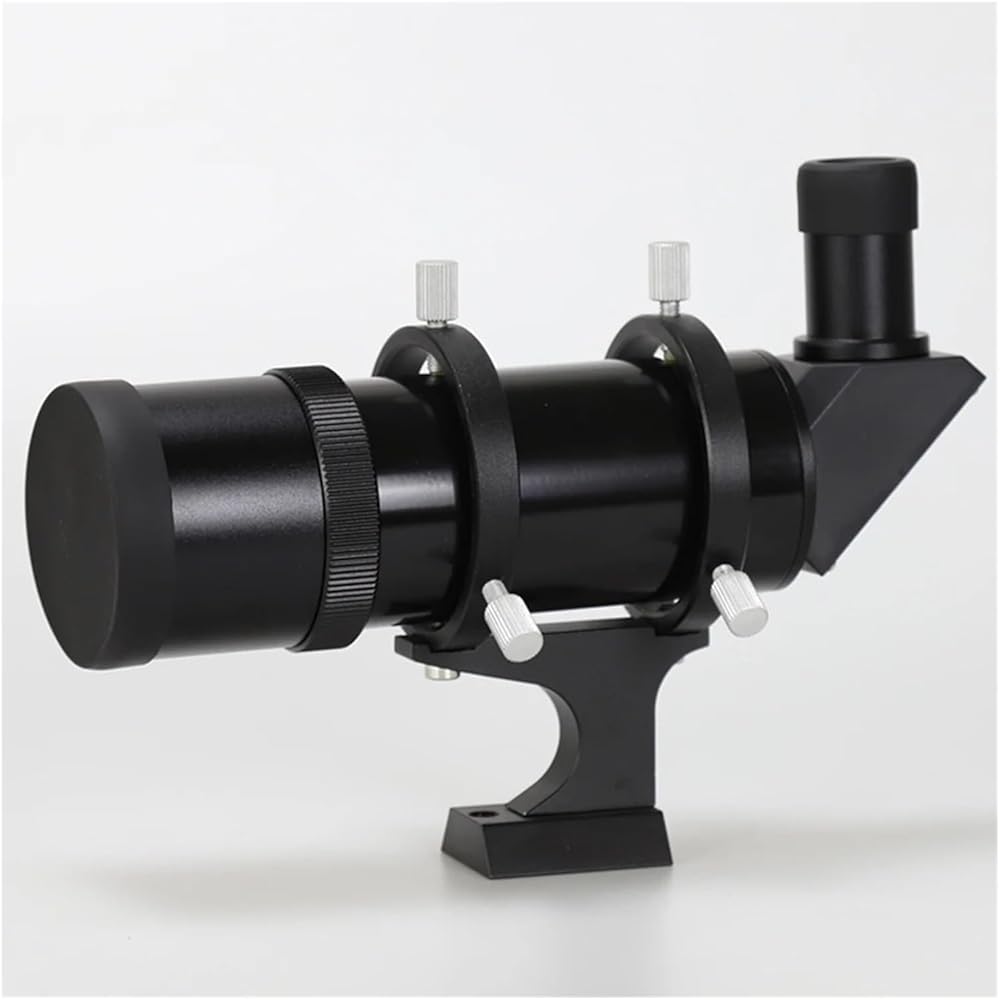

This 9×50mm right angle correct-image finder scope OTA is equipped with built-in crosshair, featuring fully upright imaging for fast celestial alignment and auxiliary positioning of main telescopes.
With clamping guiding rings, it can be stably mounted on telescope tubes with firm locking, preventing displacement and looseness during long-time outdoor observation.
The right-angle optical structure optimizes viewing posture without excessive bending, which is suitable for prolonged outdoor astronomical observation.
High-transmittance optical elements provide a wide and transparent field of view with good celestial recognition for smoother star finding.
It adopts universal mounting design to fit most conventional astronomical telescopes. The sturdy body supports simple installation and adjustment.
Standard dovetail base compatible with finder scope mounts on most telescope tubes for quick attachment. Adjustment screws enable easy alignment with main scope.
وصف
Product Description:
If you are looking to upgrade your stock finder, 9x50mm right angle finder may be just what you need. It features a multi-coated 50mm achromatic objective, a prism that provides a non-inverted, non-reversed correct-image, and single eyepiece cross-hairs that allow for precise centering of faint objects.
Right-angle 9x50 finder makes it easier to hunt faint objects without back and neck strain
Large 50 mm aperture lets you star hop using fainter stars and see many deep-sky objects directly
Correct-image orientation shows a view of the sky that matches most star charts
The diagonal and eyepiece are removable, changeable or rotatable.
The finder comes with two protective end caps for the objective and the eyepiece.
The finder is easily focusable from the objective end by turning the objective assembly and locking focus using the focus lock ring just behind the dewshield.
Magnification: 9x
Caliber: 50mm
Coated: FMC
Total Finder Weight (OTA)= 12.7 oz/ 0.36kg
Tube Diameter = 2.09in/ 53mm
Dewshield Diameter = 2.26in/ 57.5mm
Total Finder Length = 7.87in/ 200mm
Package include:
1 x 9x50mm Finder Scope
1 x Clamping Guiding Rings
Note:
Please allow 0-2mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Most telescopes come with a small, straight-through finder telescope. But many astronomers prefer the use of larger, right-angle finders that offer many more advantages. With a 50mm finder, you can hunt down fainter objects that you would not see in smaller 24mm or 30mm stock finders. "Correct Image" finders present a view that matches the orientation of the sky or the orientation of the stars in star charts. And, perhaps most importantly, your back and neck will thank you for using a "Right-Angle" finder and no longer subjecting them to various contortions at the telescope.
==========
Lens Diameter : 50MM
Tube Travel : 20cm
Back Focus : NA
Focus Type : Fixed-focus
Focal Length : NA
Material : Metal
Model Number : 90862+
Type : Monocular
