5pcs FE1.1S USB 2.0 High‑Speed 4‑Port Hub Expansion Module, 1‑to‑4 USB Interface, 5 V Supply in Kuwait 5pcs FE1.1S USB 2.0 High‑Speed 4‑Port Hub Expansion Module, 1‑to‑4 USB Interface, 5 V Supply in Kuwait 5pcs FE1.1S USB 2.0 High‑Speed 4‑Port Hub Expansion Module, 1‑to‑4 USB Interface, 5 V Supply in Kuwait 5pcs FE1.1S USB 2.0 High‑Speed 4‑Port Hub Expansion Module, 1‑to‑4 USB Interface, 5 V Supply in Kuwait 5pcs FE1.1S USB 2.0 High‑Speed 4‑Port Hub Expansion Module, 1‑to‑4 USB Interface, 5 V Supply in Kuwait 5pcs FE1.1S USB 2.0 High‑Speed 4‑Port Hub Expansion Module, 1‑to‑4 USB Interface, 5 V Supply in Kuwait

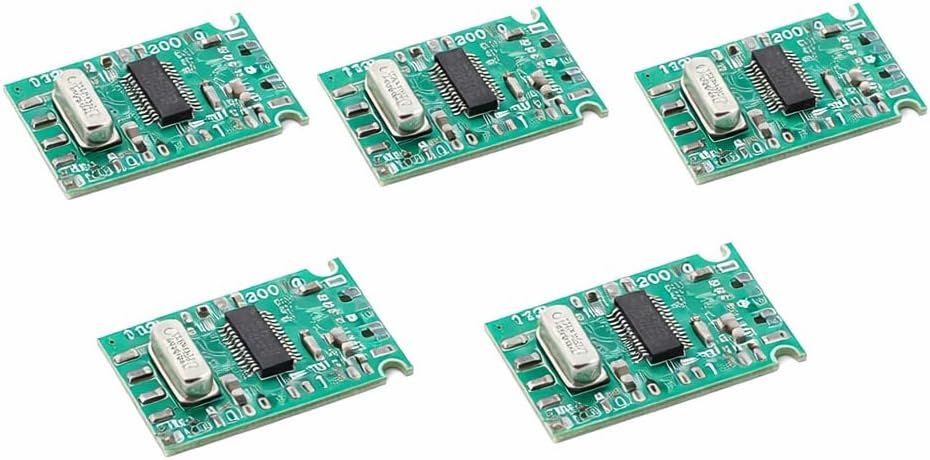

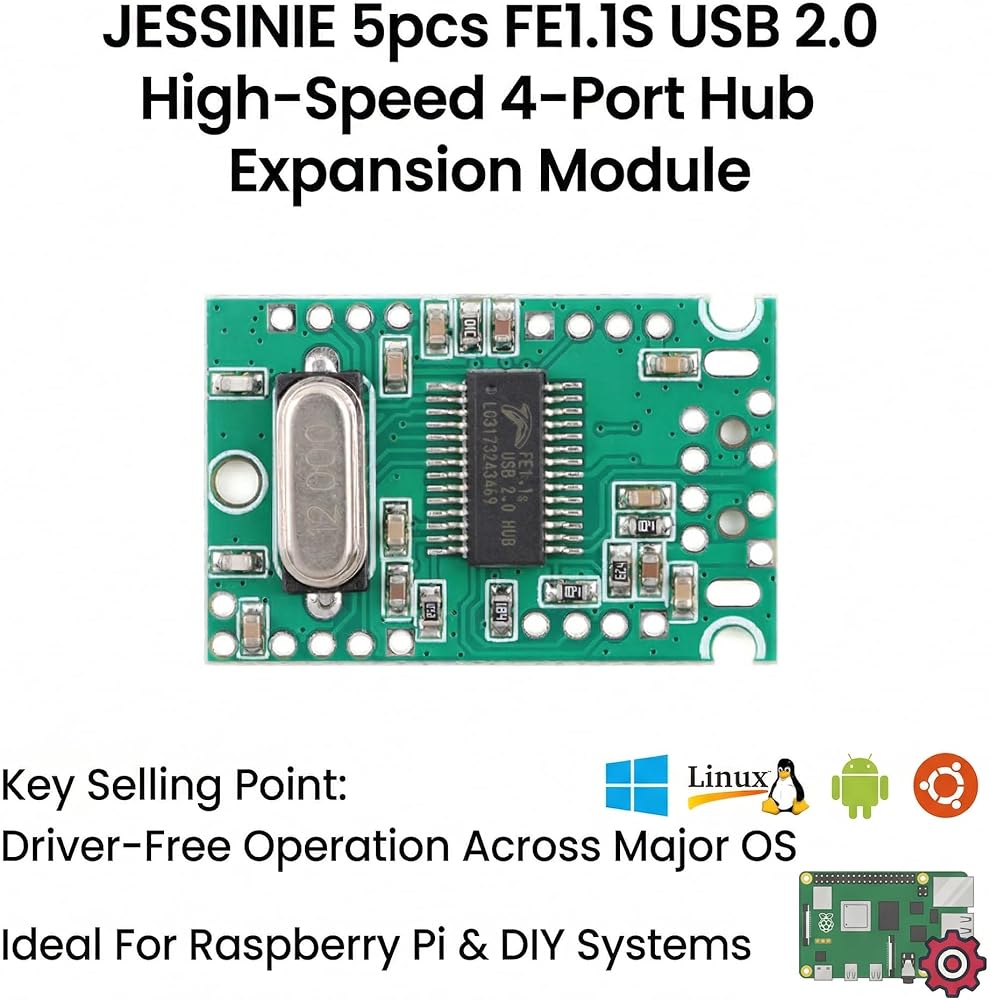

5pcs FE1.1S USB 2.0 High‑Speed 4‑Port Hub Expansion Module, 1‑to‑4 USB Interface, 5 V Supply

KWD 6
Brand
JESSINIE
Weight
50 g
– 1 +

Special Features

  • 【USB 2.0 One‑To‑Four HUB Expansion】 FE1.1S controller expands one USB 2.0 upstream port into four downstream ports; supports high‑speed, full‑speed, and low‑speed devices; stable signal routing with low power draw; enables compact USB port expansion for embedded and DIY systems
  • 【Driver‑Free Operation Across Major OS】 Designed for plug‑and‑play use on Windows, Linux, Android, and Ubuntu; no driver installation required; simplifies deployment and reduces setup time; allows quick connection of multiple USB peripherals without software configuration steps
  • 【Low Power Consumption And Thermal Stability】 Optimized internal architecture delivers low power usage and minimal heat generation; supports continuous operation with stable performance; suitable for small enclosures where airflow is limited; helps maintain consistent USB communication over time
  • 【External 5.0 V Power Support For High Loads】 Powered by a DC 5.0 V input from the host USB port; includes reserved pads for external 5.0 V supply when high‑current devices are connected; improves power stability; prevents voltage drop when multiple peripherals are used
  • 【Compact PCB With Flexible Solder Pads】 Small 29.5 × 18.9 × 4.8 mm module with exposed USB signal pads and pin headers; no fixed connectors; supports direct wiring or custom connectors; ideal for for Raspberry Pi and other development boards requiring space‑efficient USB expansion

Description

Product Overview

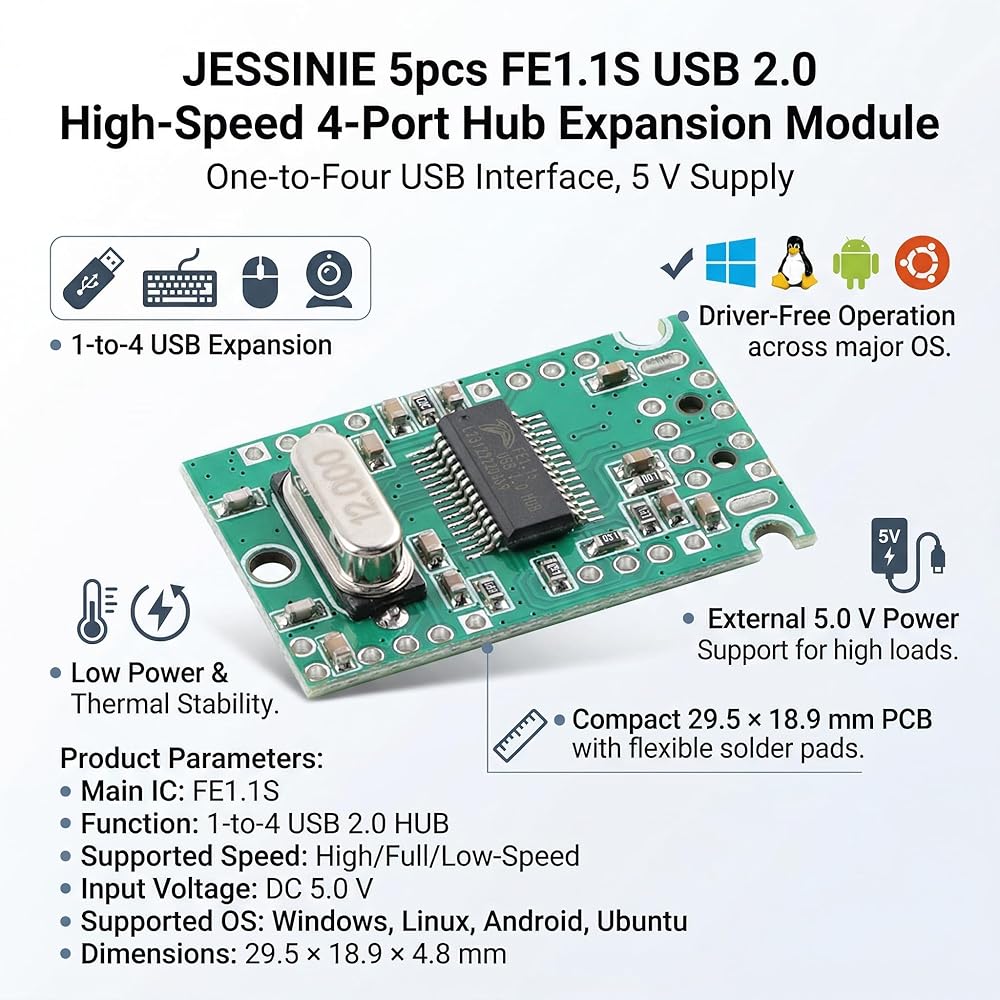

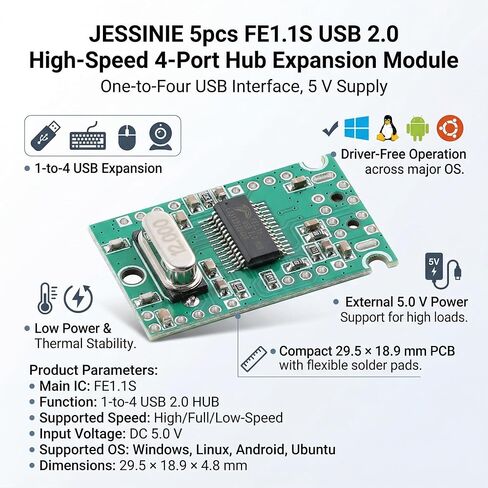

Industrial‑grade USB 2.0 4‑Port HUB Module based on FE1.1S high‑integration controller. Designed for embedded systems and USB expansion, offering low power consumption, stable performance, and driver‑free operation across major operating systems. Ideal for DIY and industrial applications.

1. Product Parameters
Main IC: FE1.1S
Function: USB 2.0 1‑to‑4 HUB controller
USB Standard: USB 2.0
Supported Speed: High‑Speed / Full‑Speed / Low‑Speed
Input Voltage: DC 5.0 V
Power Consumption: Low power, low heat
Driver Requirement: Driver‑free, plug and play
Supported OS: Windows, Linux, Android, Ubuntu

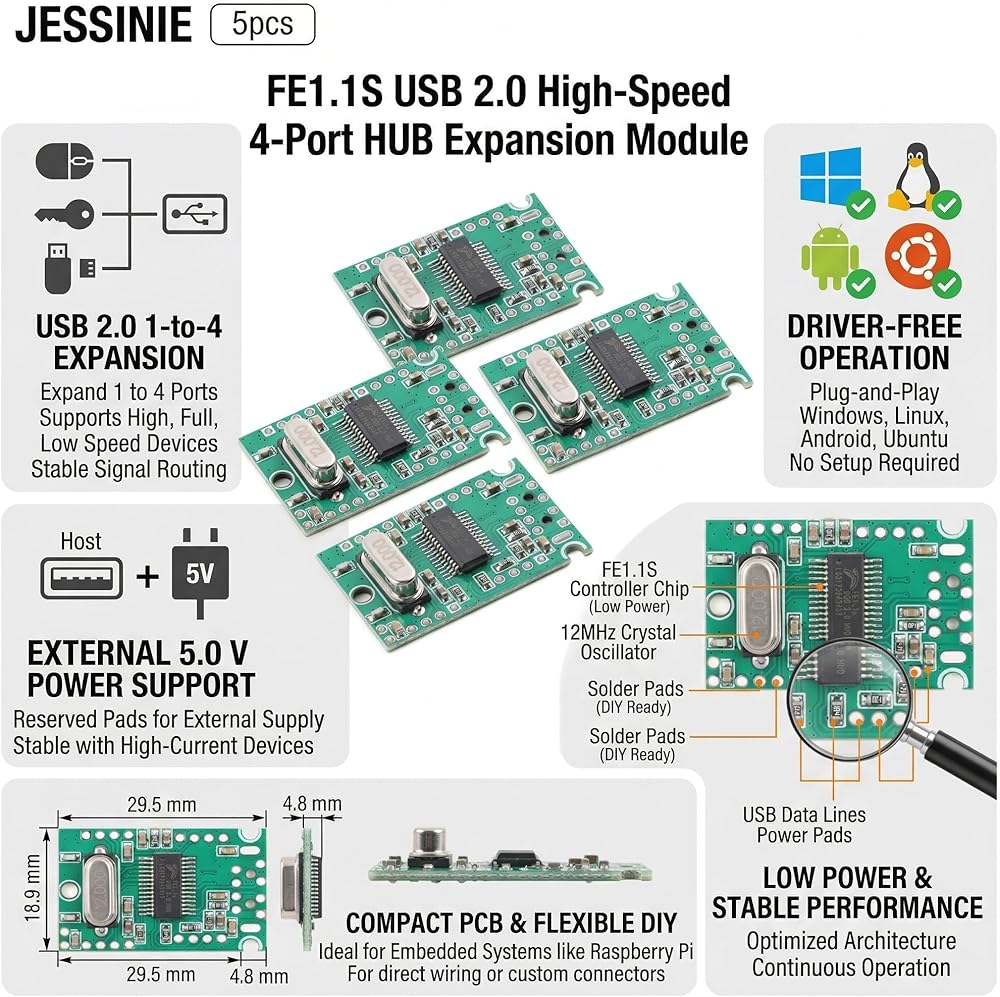

Module Dimensions: 29.5 × 18.9 × 4.8 mm
External Power Input: Supported when high‑current devices are used

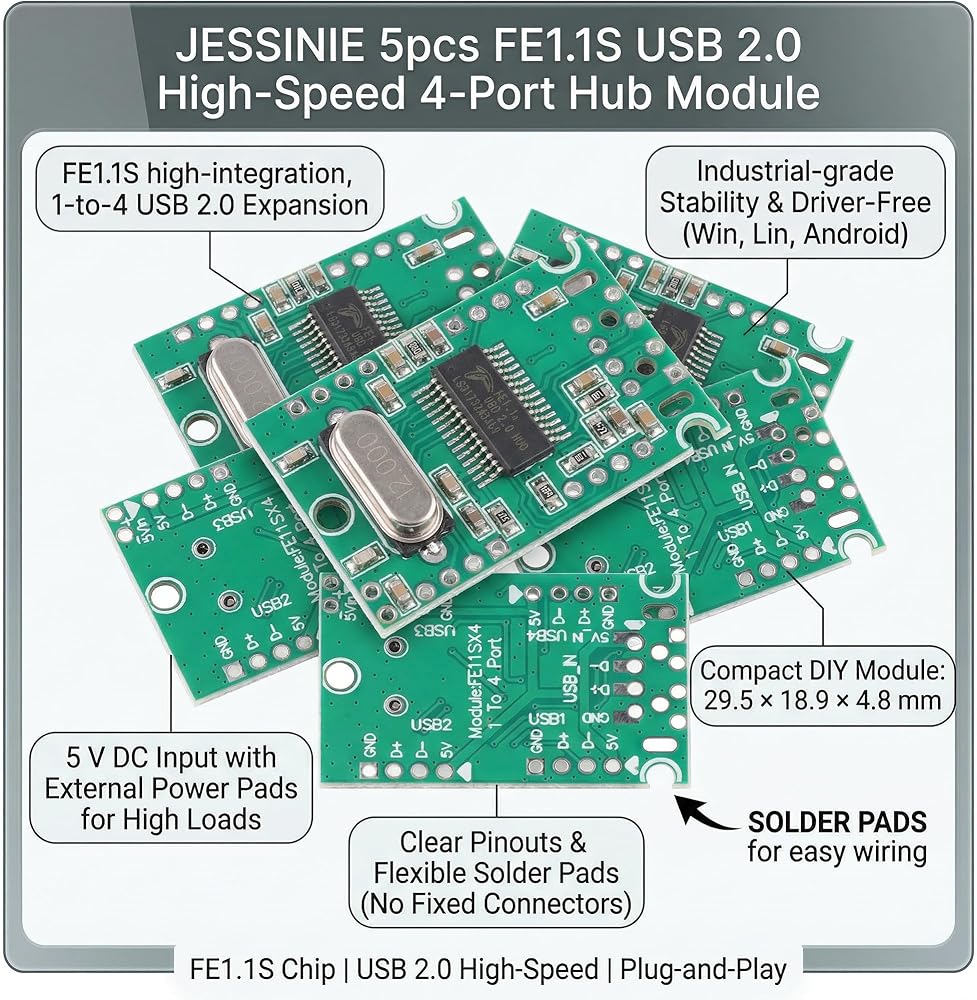

2. Pin Function Description
VCC (IN+): DC 5 V power input positive
GND: Power ground
USB‑D+: USB data positive
USB‑D‑: USB data negative
USB1–USB4: Downstream USB ports
3. Common Questions & Answers (FAQ)
Q1: Does this HUB require drivers?
A1: No, it is plug‑and‑play on major operating systems.

Q2: How many USB devices can be connected?
A2: It expands one USB port into four USB ports.

Q3: Can it support high‑current USB devices?
A3: Yes, with an external 5V power supply if needed.

Q4: Is it suitable for embedded boards like Raspberry Pi?
A4: Yes, it is widely used for embedded USB expansion.

Q5: Are USB connectors included on the board?
A5: No, it provides solder pads and pin headers for DIY use.
