Description:

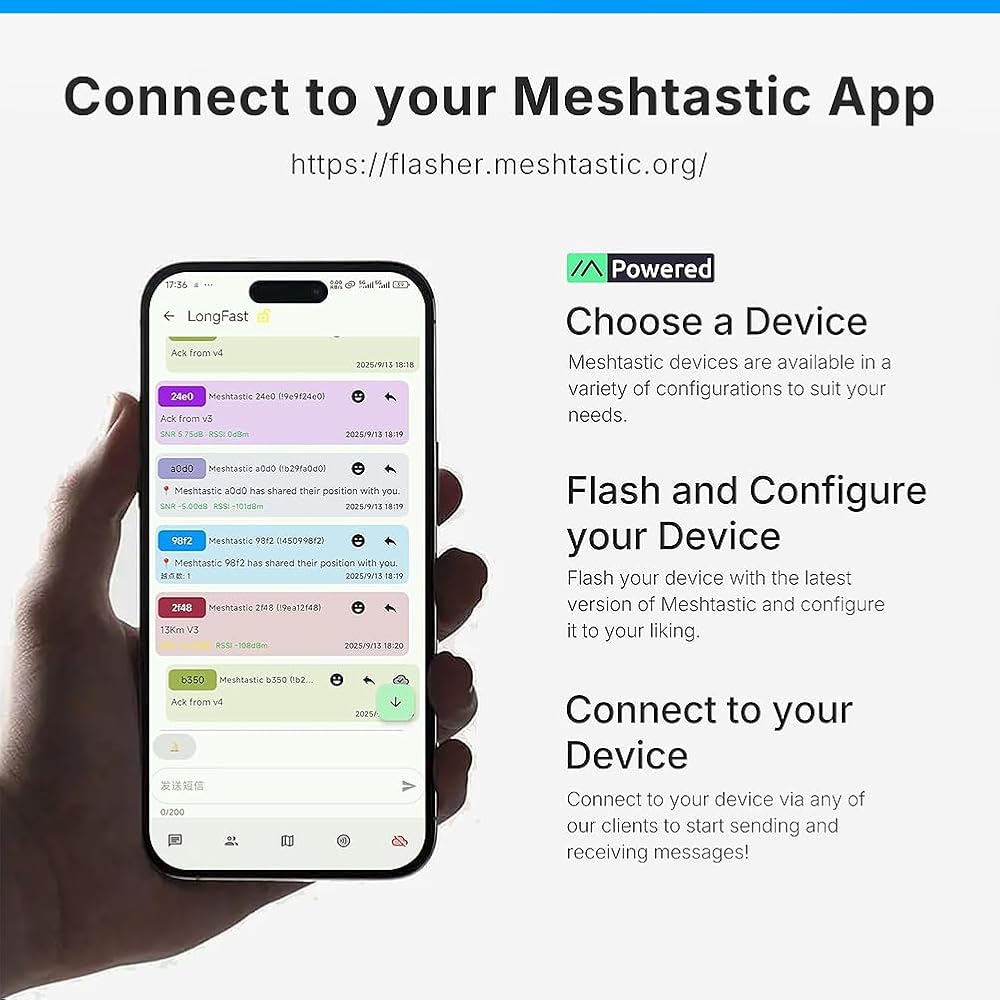

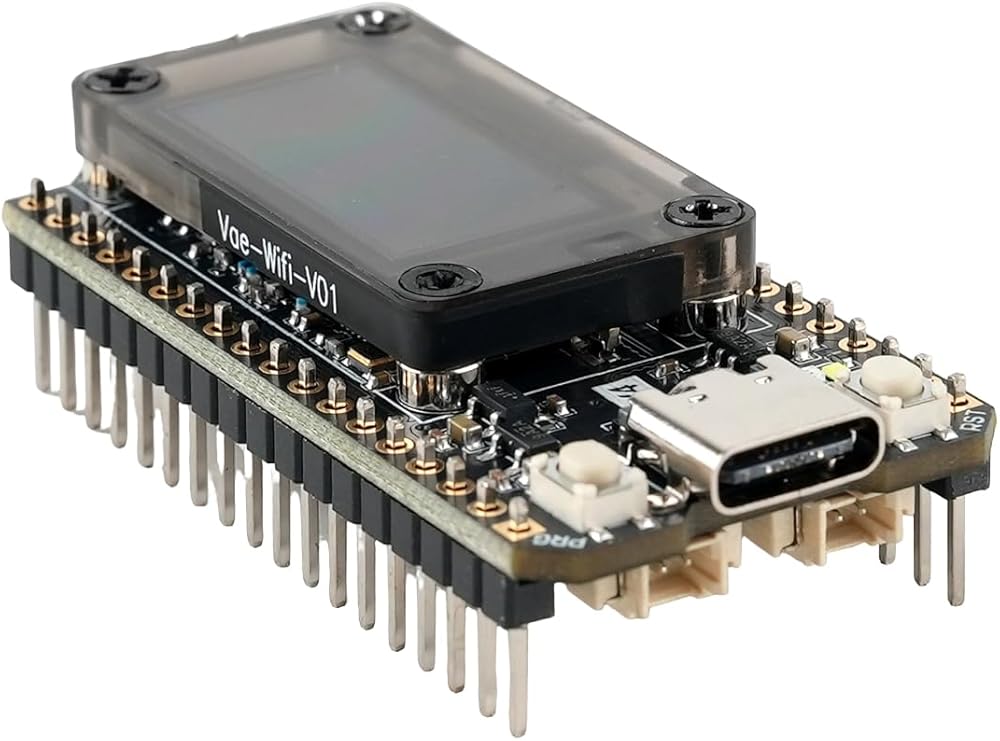

The WiFi LoRa 32 V4, the next generation of the Heltec V3, is a powerful and high-efficiency IoT development board. It features an ESP32-S3 MCU and an SX1262 LoRa chip, retaining the V3's size and pinout. The board integrates performance upgrades including a built-in Wi-Fi/Bluetooth antenna, 28 ±1 dBm LoRa output power, and a protected OLED display. Its superior RF performance and stable system design ensure it is ready to use and highly beginner-friendly. It supports development via Arduino, PlatformIO, ESP-IDF, and MicroPython, making it ideal for long-range wireless open-source projects such as Meshtastic, LoRaWAN, and Meshcore, in applications including smart cities and industrial control.

Specifications:
MCU: ESP32-S3R2 (Xtensa 32-bit LX7 dual-core processor)
LoRa Chip: SX1262

Frequency:
High-power version: 863–928 MHz
Low-power version: 433, 470–510, 863–928 MHz

Max. TX Power:
High-power version: 28 ±1 dBm
Low-power version: 21 ±1 dBm

Max. Receiving Sensitivity: -137 dBm @ SF12, BW=125 kHz
Wi-Fi: 802.11 b/g/n, up to 150 Mbps
Bluetooth: Bluetooth Low Energy (LE), Bluetooth 5, Bluetooth Mesh

Hardware Resources
7×ADC1 + 2×ADC2;
7×Touch;
3×UART;
2×I2C;
2×SPI;

Memory: 384 KB ROM; 512 KB SRAM; 16 KB RTC SRAM; 2 MB PSRAM; 16 MB Flash

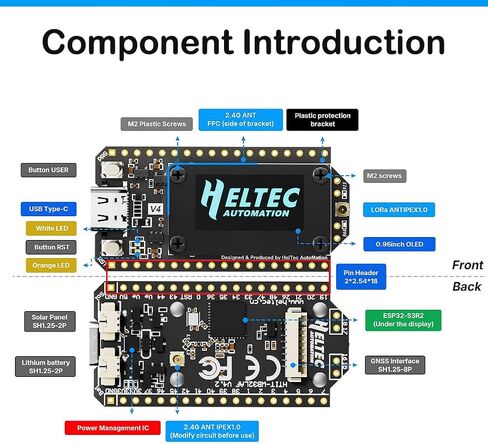

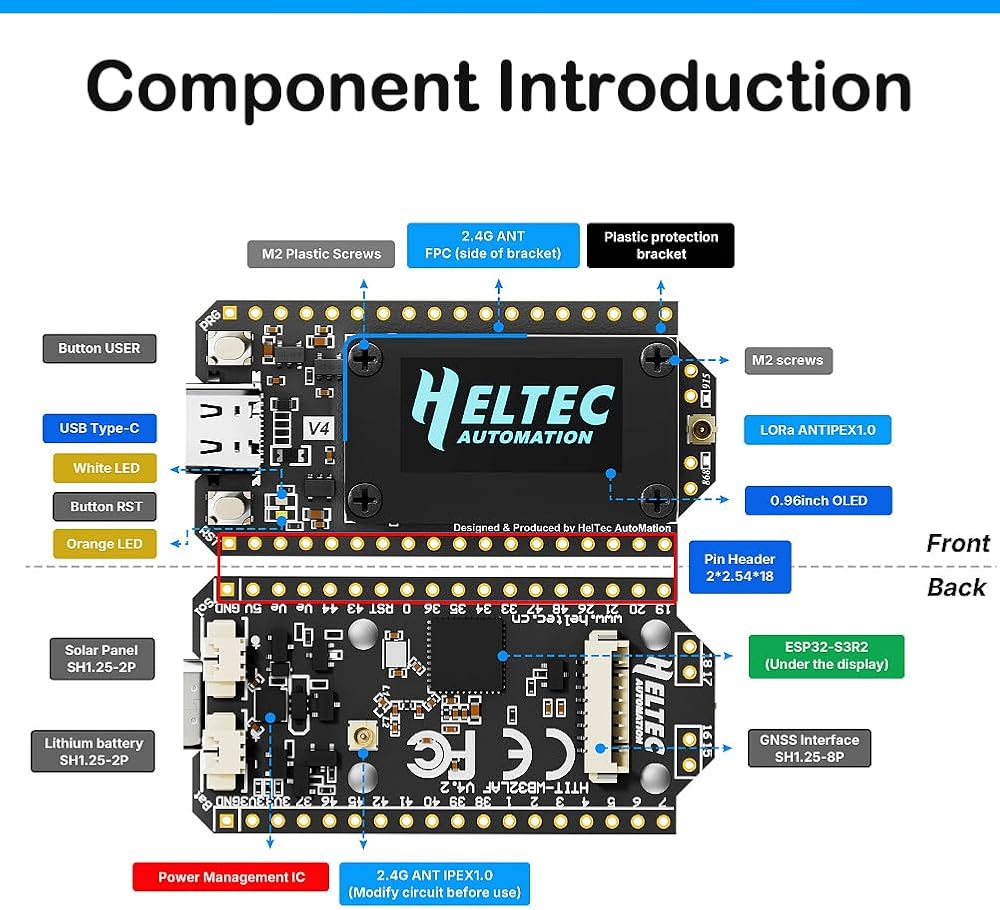

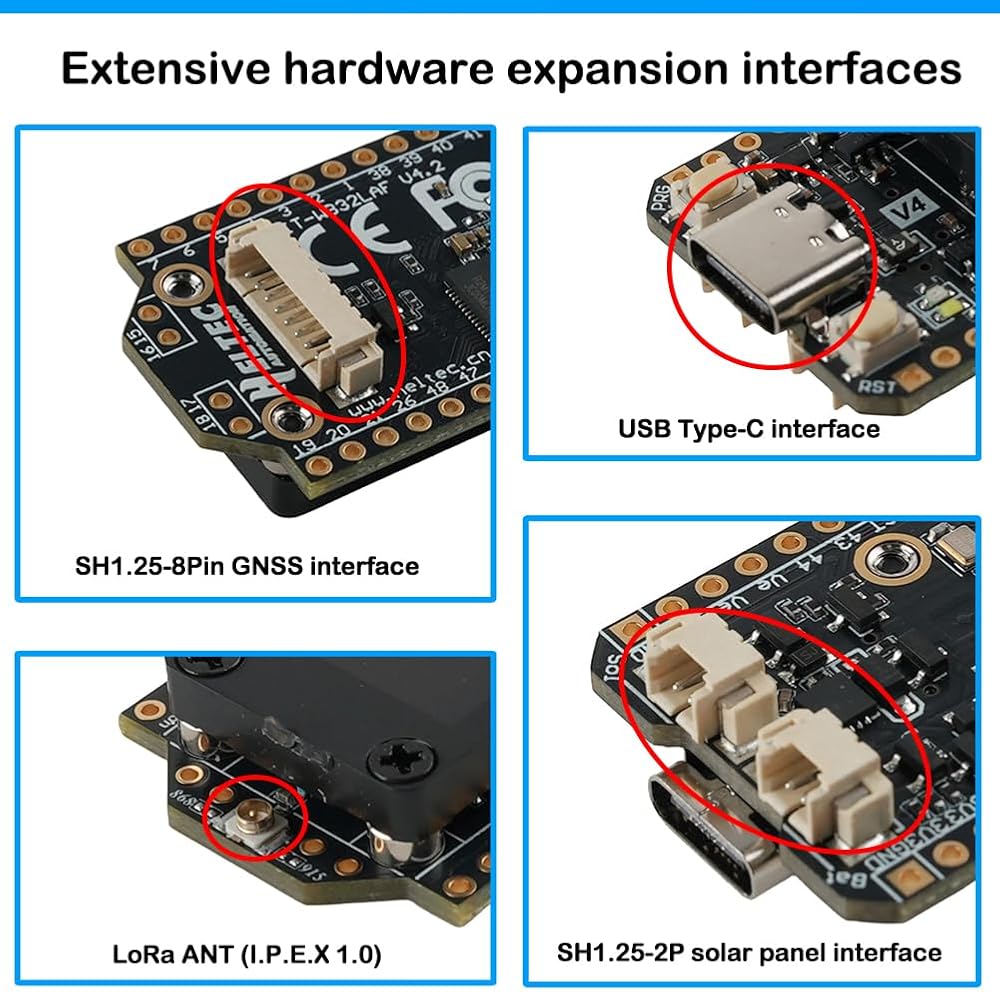

Interface:
USB Type-C;
SH1.25‑2P lithium battery interface;
SH1.25‑8P interface;
LoRa ANT (I.P.E.X 1.0);
2.4G ANT (I.P.E.X 1.0)

Battery Range: 3.3–4.4 V lithium battery (Not included in package)
Operating Temperature: -20 ℃ to +70 ℃
Dimensions: 51.7×25.4×10.7mm

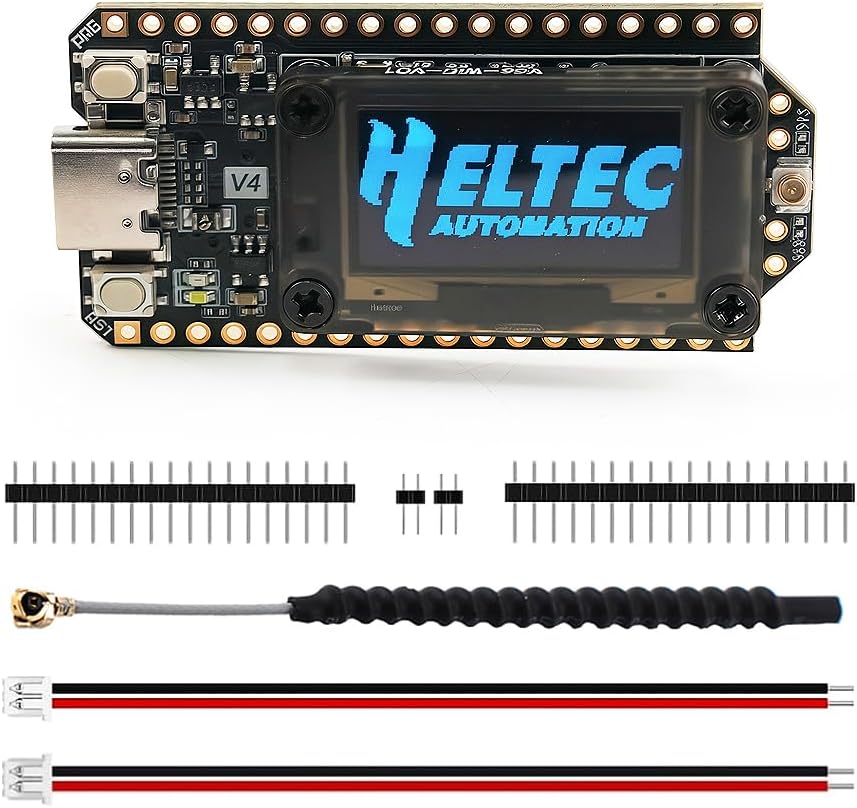

Package includes:
1 x Heltec LoRa 32 V4 Meshtastic 0.96inch OLED Dev-Board
1 x 868MHz 915MHz 2DBi Antenna
2 x 2P Terminal Cable
