Description:

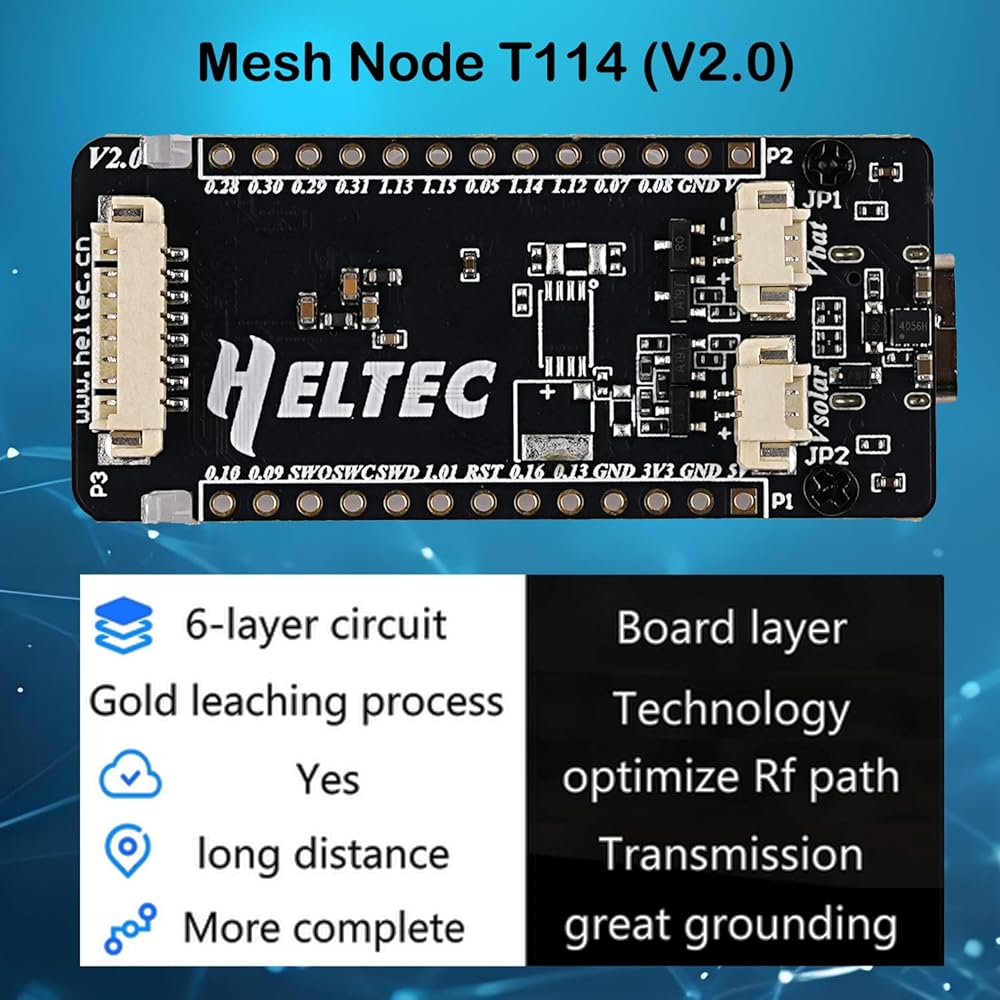

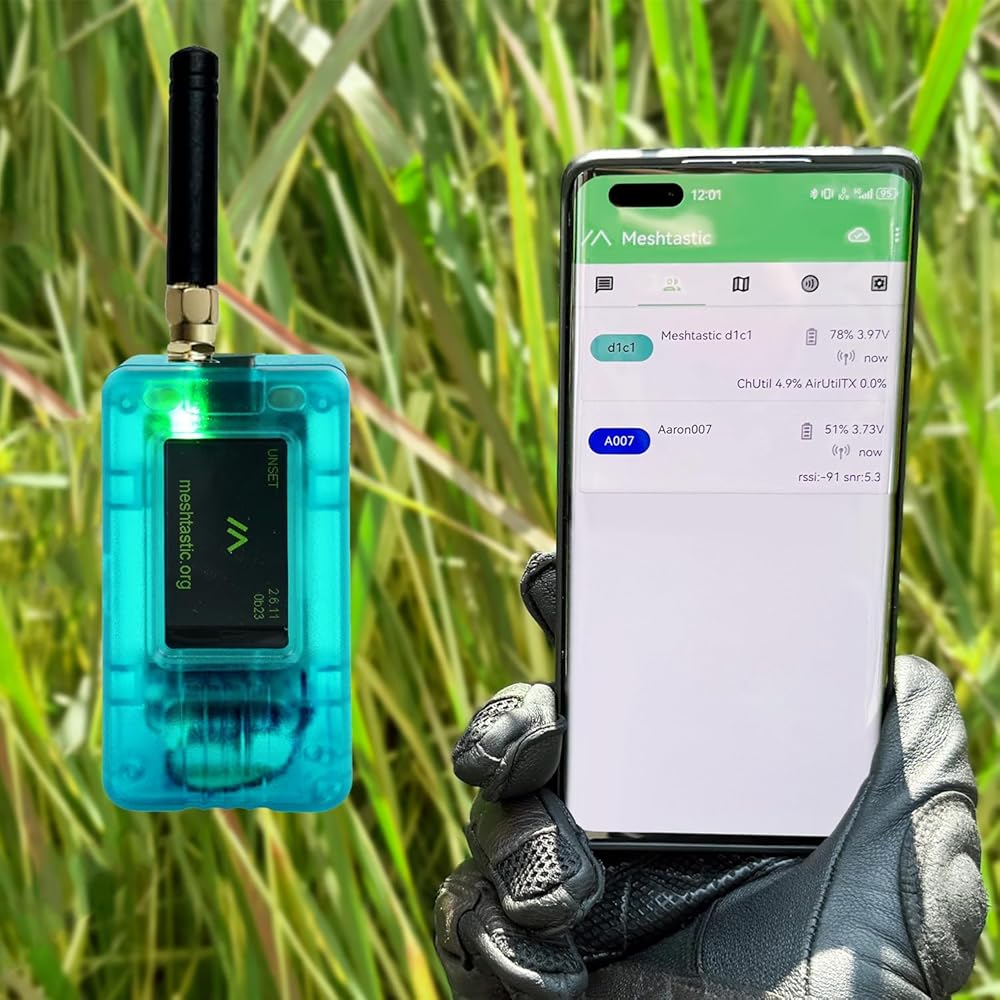

The Mesh Node T114 integrates a dual-chip design featuring the nRF52840 and SX1262, supporting both LoRa and Bluetooth communication simultaneously. It offers optional GPS and display modules, and enables flexible power management through USB, lithium battery, and solar panel interfaces. Compared to the Heltec V3, it demonstrates superior low-power performance. Its six-layer PCB layout and optimized RF circuit design make it particularly well-suited and reliable for LoRa/LoRaWAN applications such as device tracking and remote monitoring systems. Furthermore, the T114 supports development via environments like Arduino and PlatformIO and is fully compatible with established open-source projects such as Meshtastic and MeshCore.
Specifications:
MCU：nRF52840
LoRa Node Chip：SX1262

Frequency：
470~510MHz；
863~870MHz；
902~928MHz

Max. TX Power：21±1dBm
Max. Receiving Sensitivity：-135dBm @ SF12, BW=125kHz
Bluetooth：Bluetooth LE, Bluetooth 5, Bluetooth mesh
Hardware Resource：USB 2.0, 4×SPI, 2×TWI, 2×UART, 4×PWM, QSPI, I2S, PDM, QDEC, etc.
Memory：1MB ROM, 256KB SRAM

Interface：
Type-C USB,
2×1.25 lithium battery connector,
2×1.25 solar panel connector,
LoRa ANT (I.P.E.X 1.0),

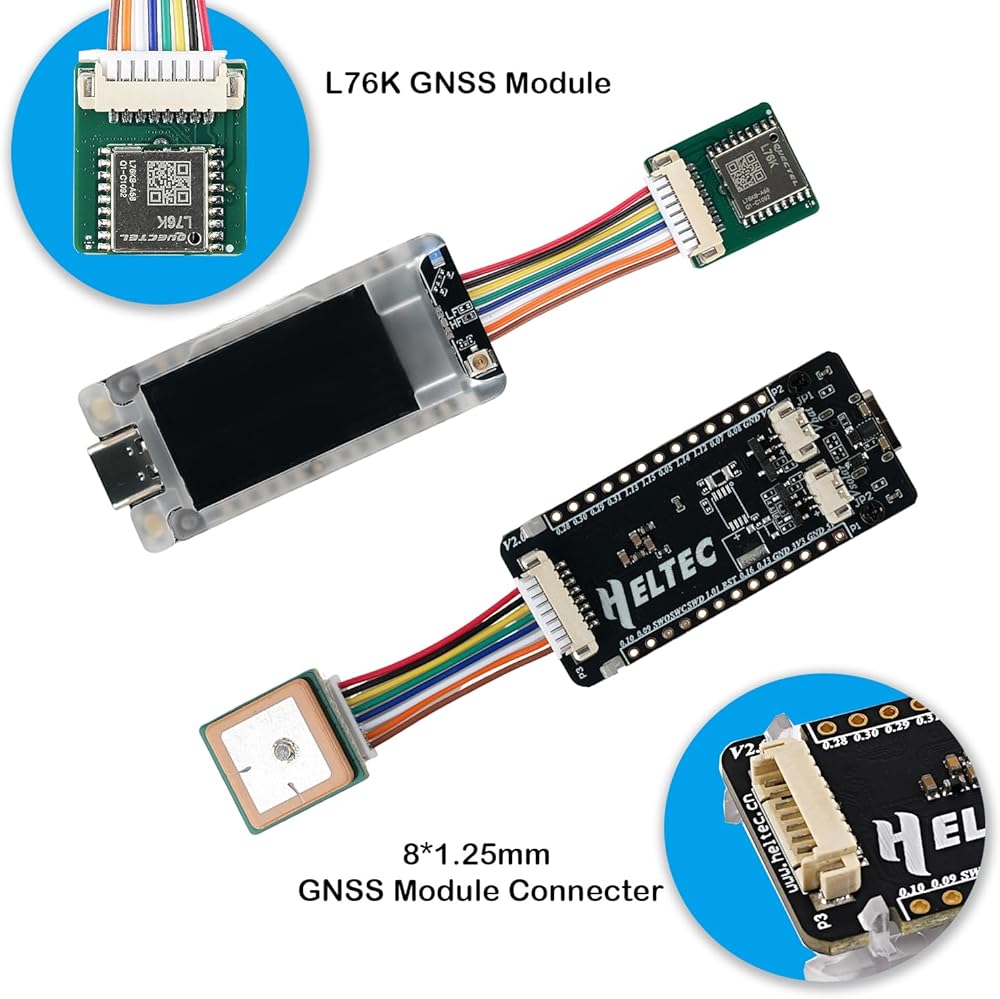

8×1.25 GPS module connector,

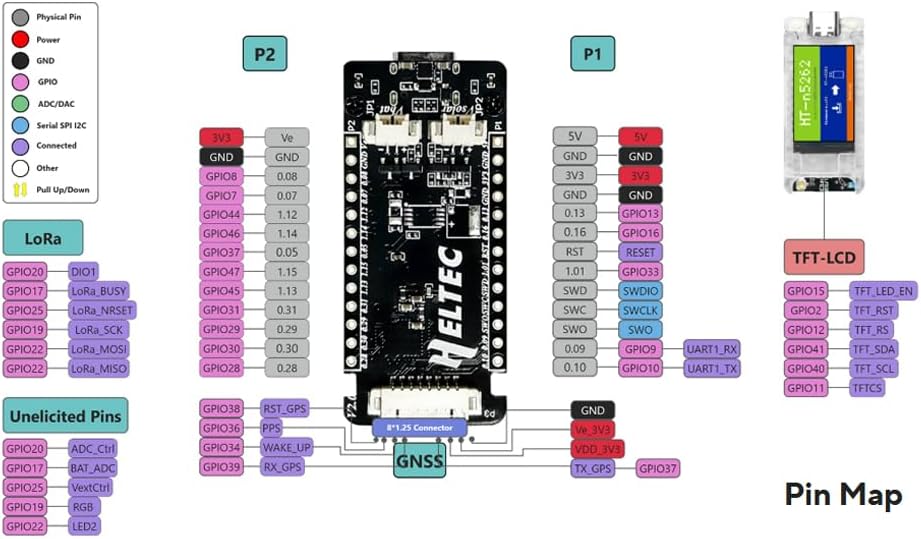

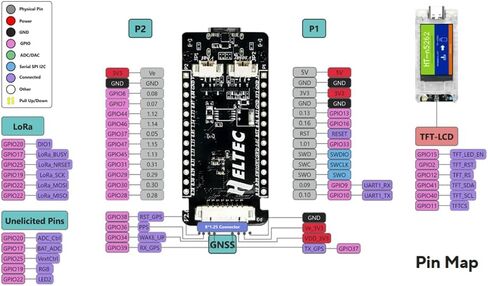

2×13×2.54 Header Pin

Battery：3~4.2V battery power supply and charging (Not included)
Operating Temperature: -20℃ ~ 70℃

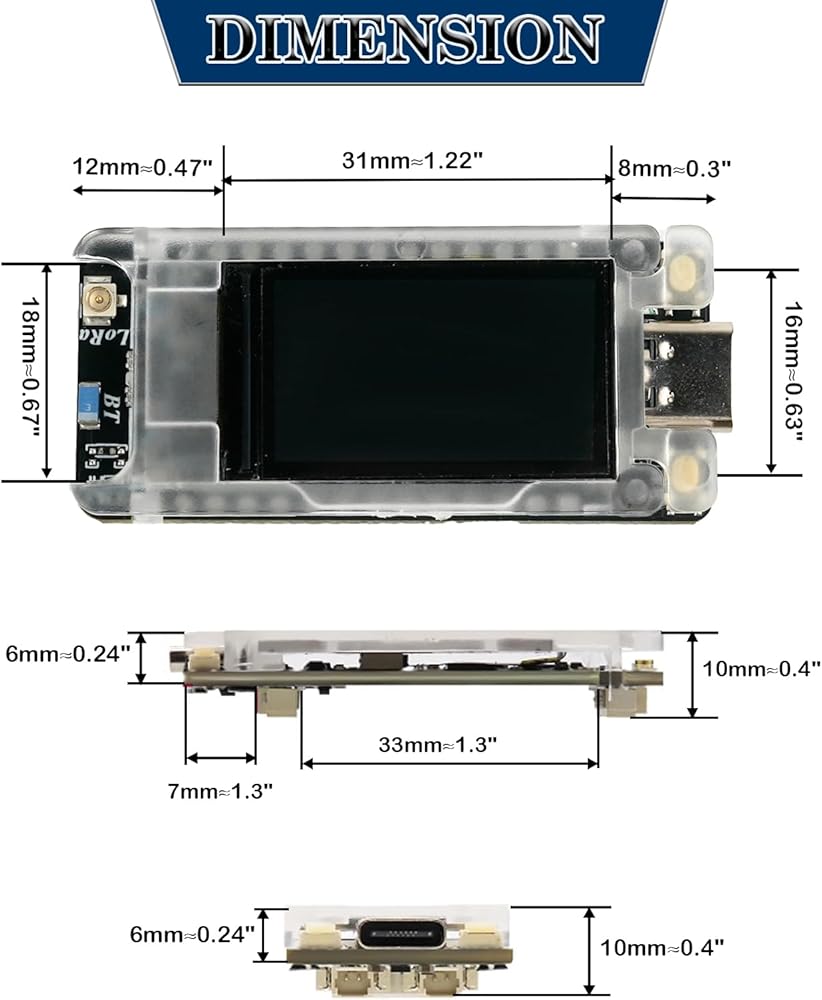

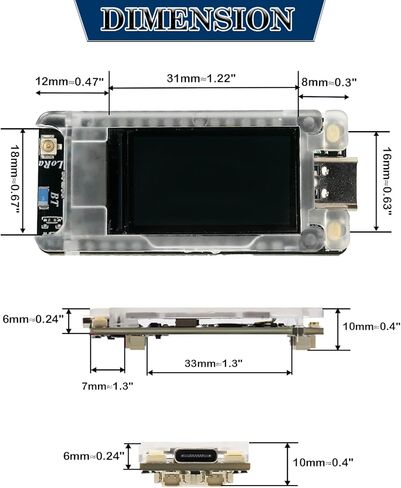

Dimensions: 50.80×22.86mm
Low Power Consumption in Deep Sleep: 11μA
Display: Onboard 1.14-inch TFT-LCD display

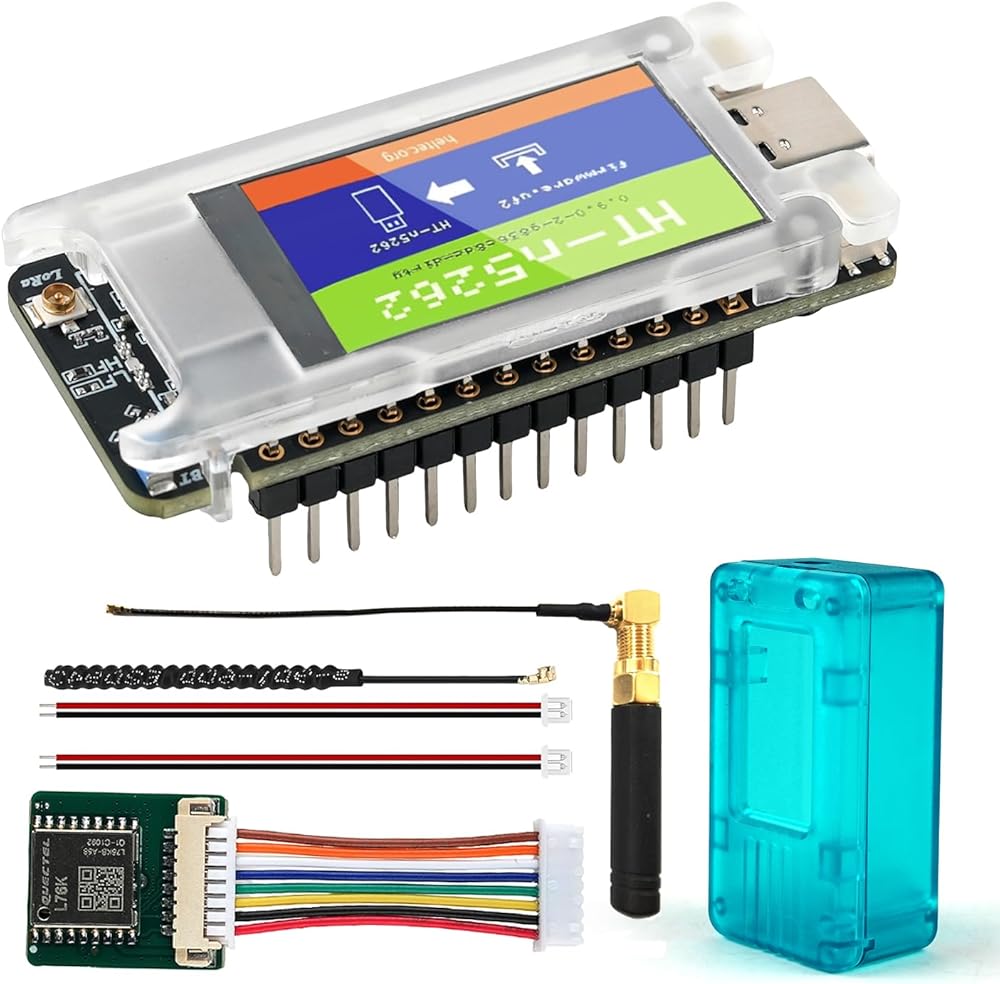

Package includes:
1 x Mesh Node T114
1 x LoRa Antenna
1 x SH1.25x2 Battery Connector
1 x Sensor connection wire
1 x L76K GNSS Module
1 x Protective Case Set
