مميزات خاصة

1. M10G-5883 module uses multi-constellation GNSS chip powered by for M10050.

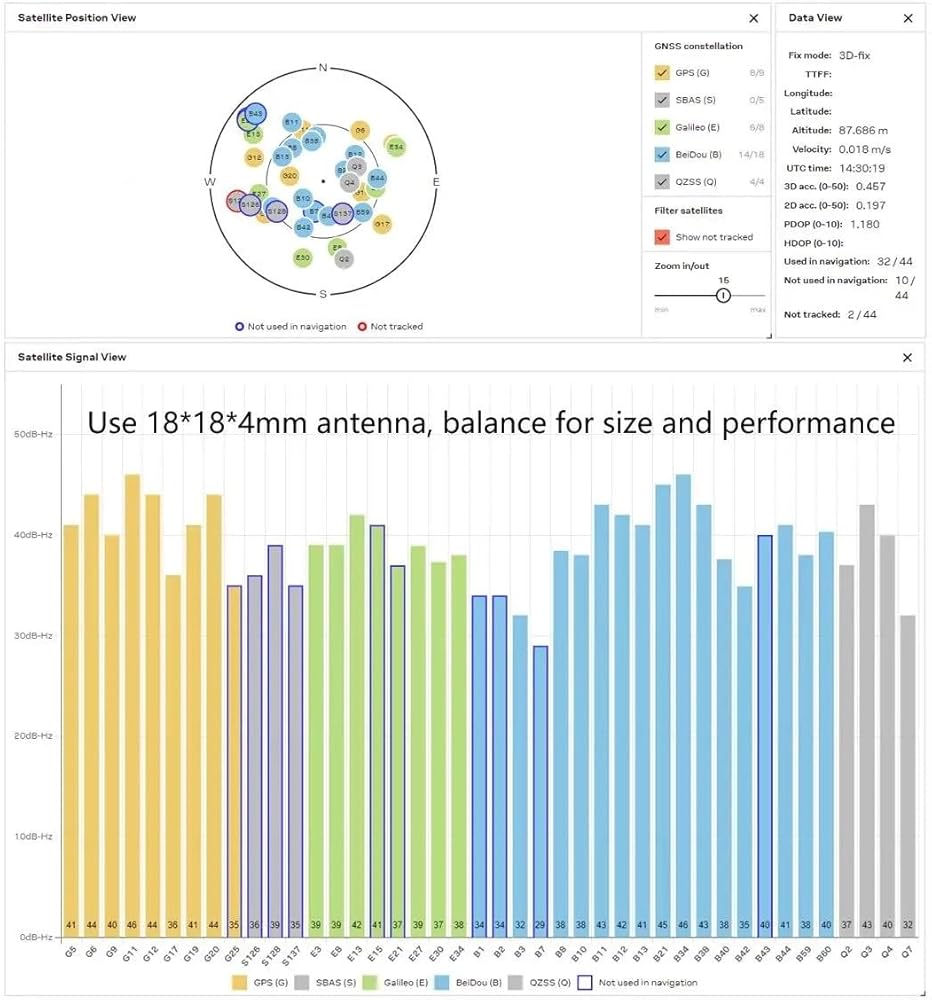

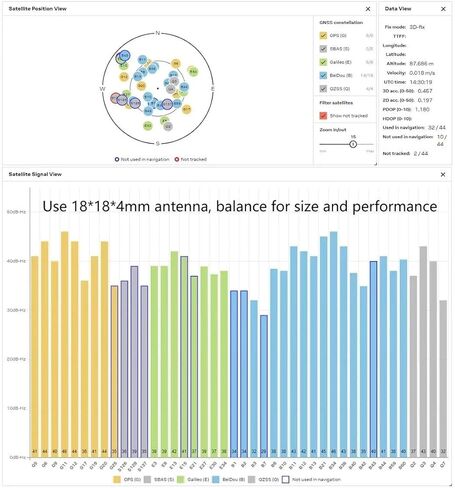

2. M10G-5883 supports concurrent reception of GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons.
3. For Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.

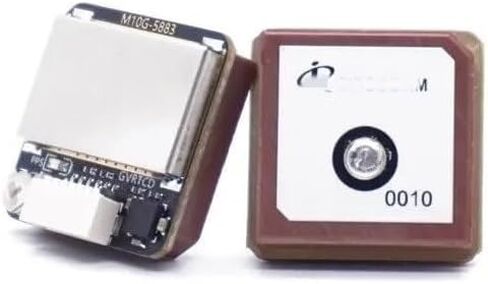

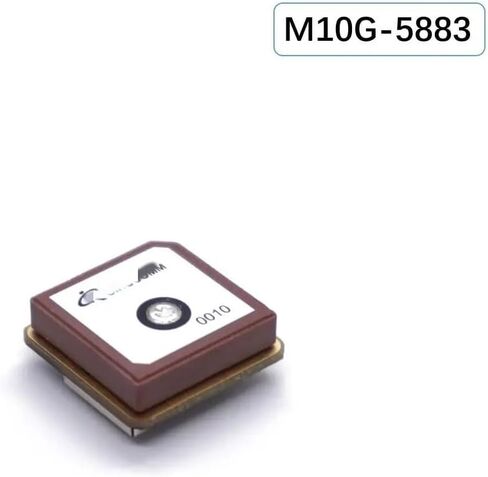

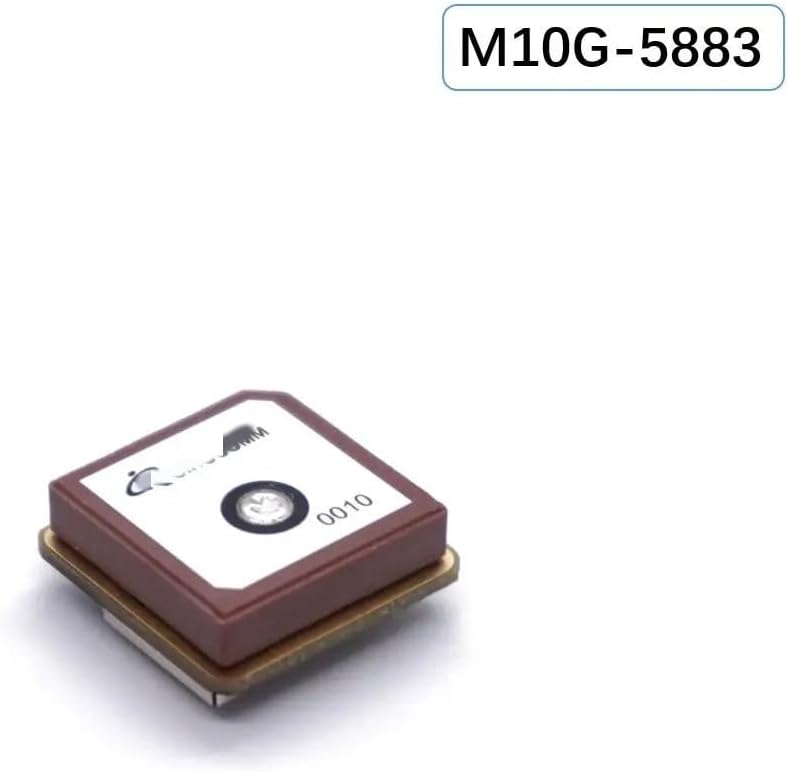

4. The high-gain 18 x 18 x 4 mm ant from for CIROCOMM provides the best balance between performance and small size.
5. The omnidirectional ant radiation pattern increases flexibility for device installation.

وصف

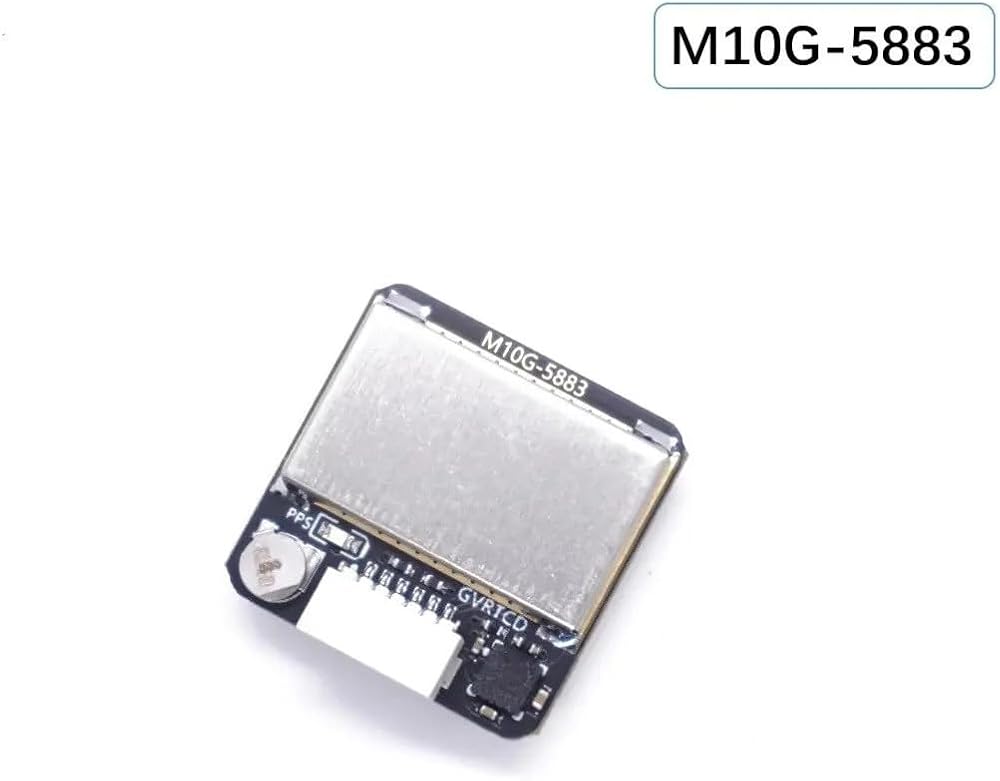

For M10G-5883 MicoAir Tech M10 GPS with Compass QMC5883L Module For FPV/Racing Drones/Robotics/Boats

GNSS For M10050 (GPS, GLONASS, Galileo and BeiDou)
Magnetic Compass QMC5883L
Patch ant 18*18*4mm
Input voltage range: 4~6V (5V pad/pin)
Power consumption: 30mA
UART baudrate: 115200 default
Operating Temperatures: -20~80 °C

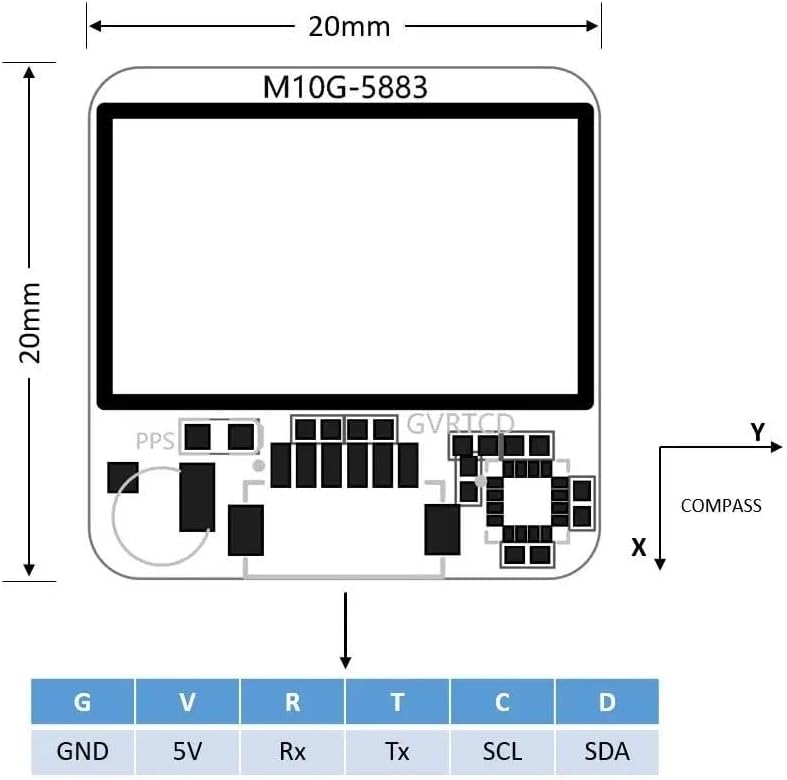

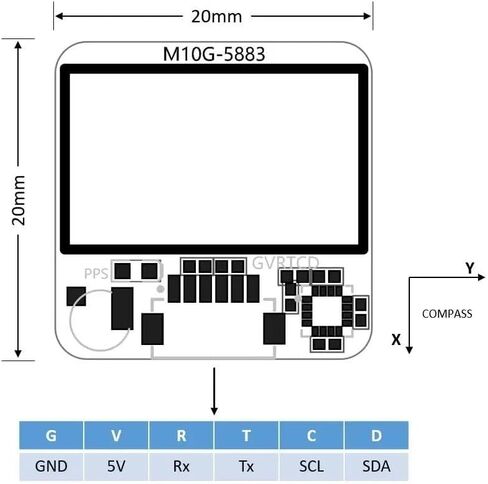

UART(TX, RX) interface for M10050
I2C(DA, CL) interface for Compass QMC5883L

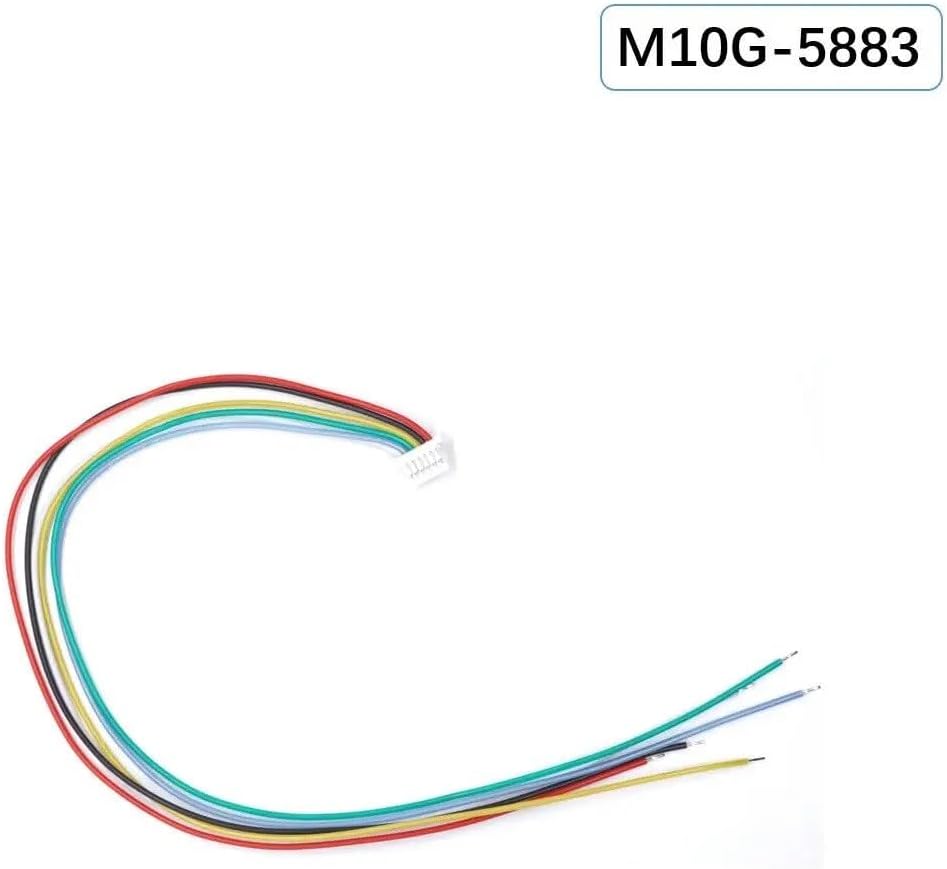

SH-1.0 6P connector ,1.00mm pitch
GNSS PPS , Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
Protocol: For 10Hz@GPS+GAL+BDS or for NMEA 1Hz
20mm*20mm*8mm
7g
