Motor Drives
The SW and DW series thrusters feature a sealed design, with critical components housed within a sealed casing, effectively preventing damage from sand and other debris. This design enables them to handle complex underwater environments, meeting the requirements for long life, corrosion resistance, and maintenance-free operation.
The thrusters incorporate comprehensive protection, while also addressing the issue of heat dissipation during operation. They are filled with highly efficient thermal conductive materials, allowing them to dissipate heat through water immersion, achieving efficient performance.

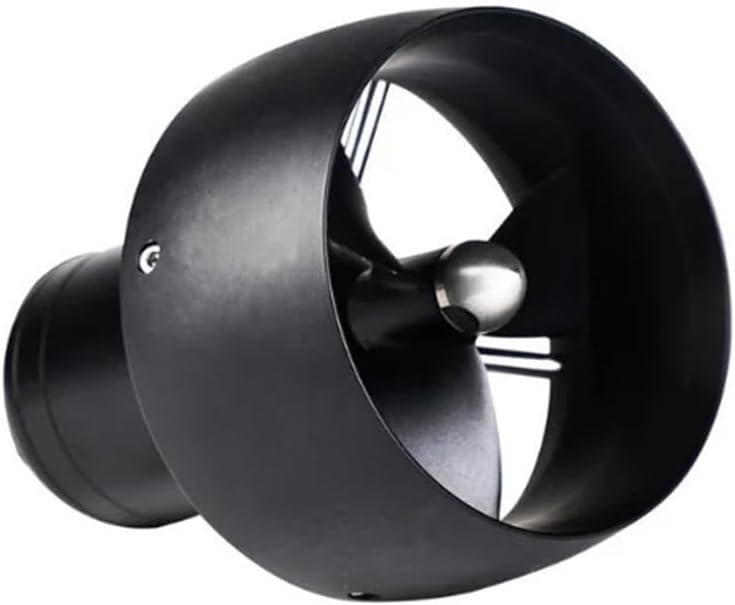

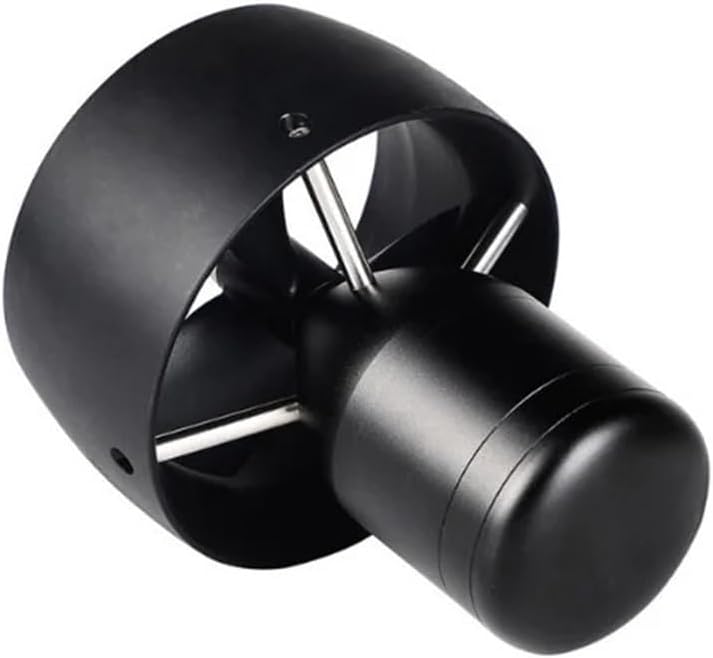

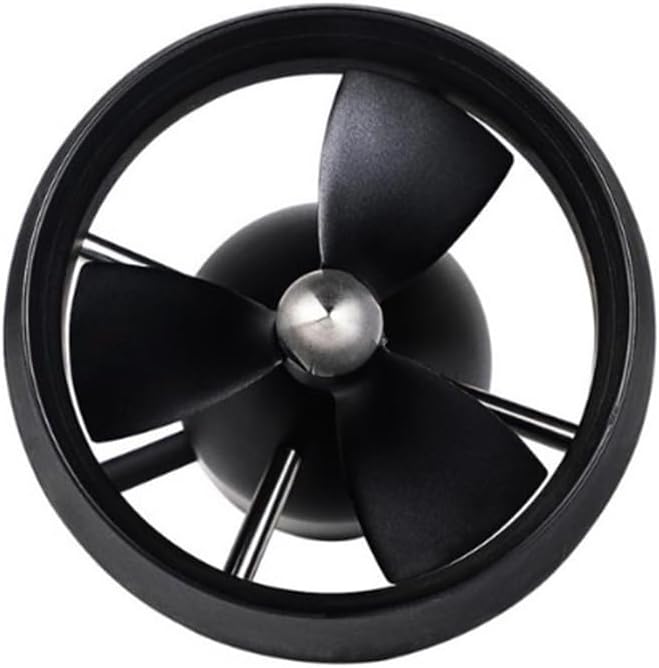

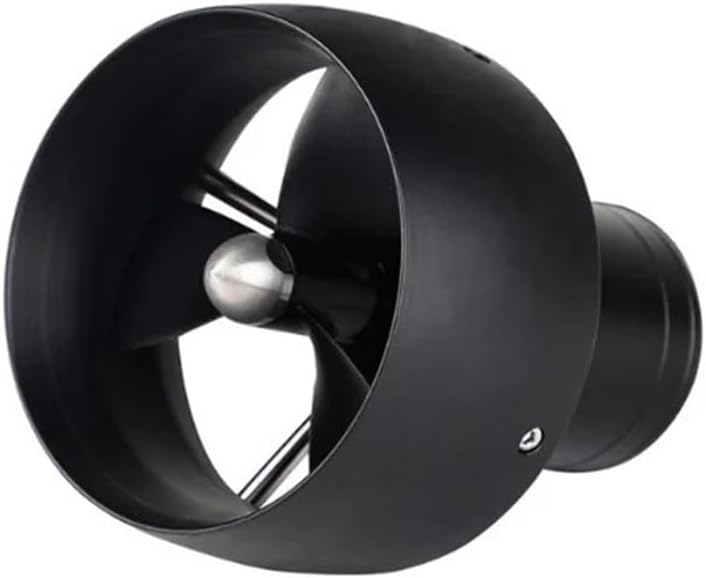

The SW12 thrusters' sealed casings are sturdy and , with a maximum operating depth of 30 meters and a maximum bollard thrust 12 kgf, making them suitable for various levels of ROVs, unmanned boats, surfboards, and other surface and underwater applications.
==========
High-concerned chemical : None
Certification : ,FCC,
Origin : Mainland
Model Number : SW12
Model Number : SW12
Color : Black
Rated Voltage(V) : 48
Rated Power(W) : 520
Maximum Mooring Thrust (KGF) : 12
Applicable Water Depth (M) : 0-30
Weight (G) : 1180g(in the air) 640g(in the water)
Commutation : Brushless
Protect Feature : Waterproof
Use : Unmanned surface vehicle, Electric surfboard Handheld thruster,etc.
Motor Mounting Type : Panel Mount
Speed (Rpm) : 3200
Construction : Permanent Magnet
