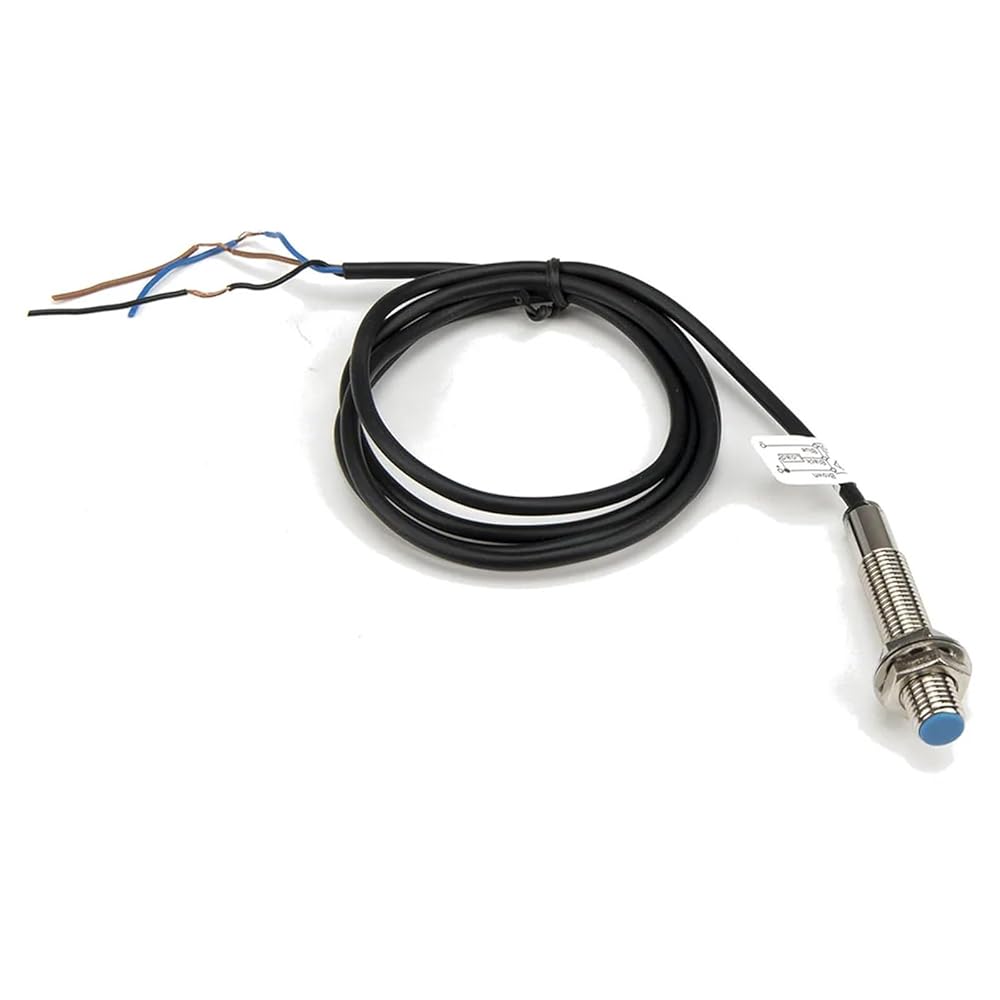

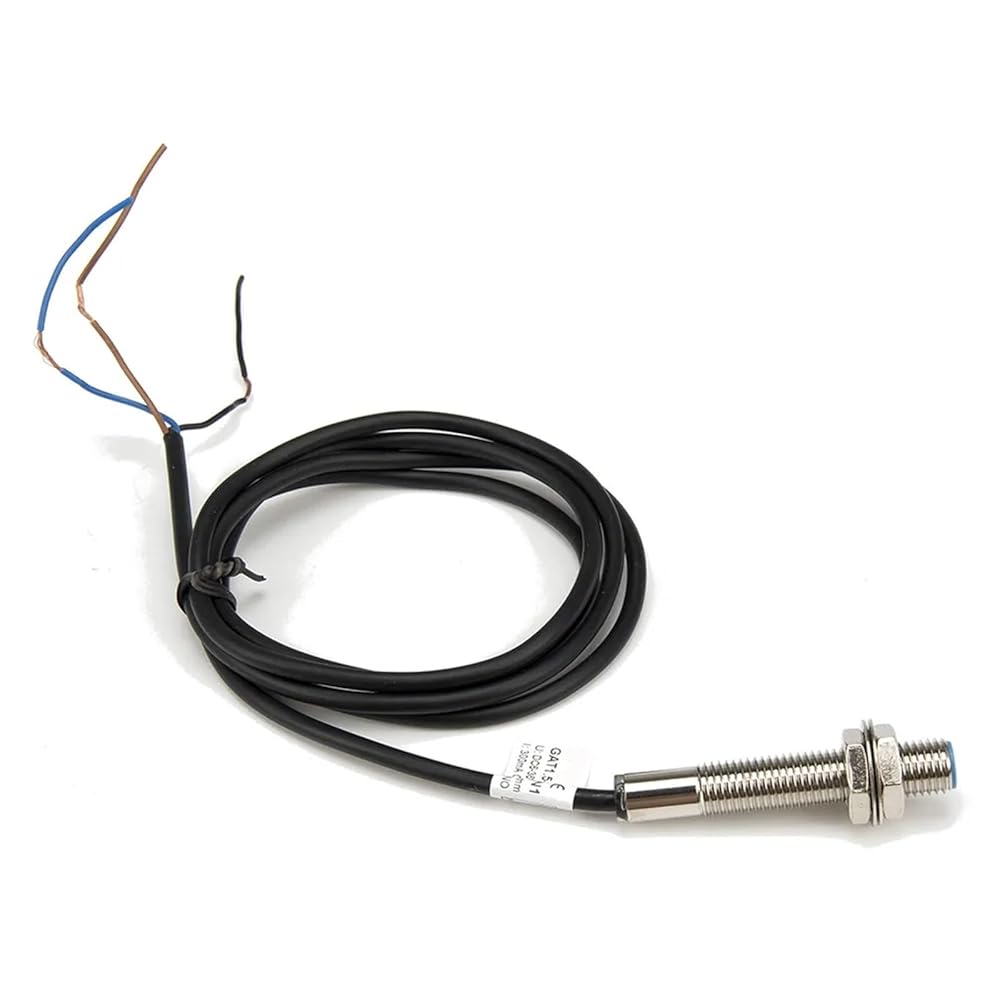

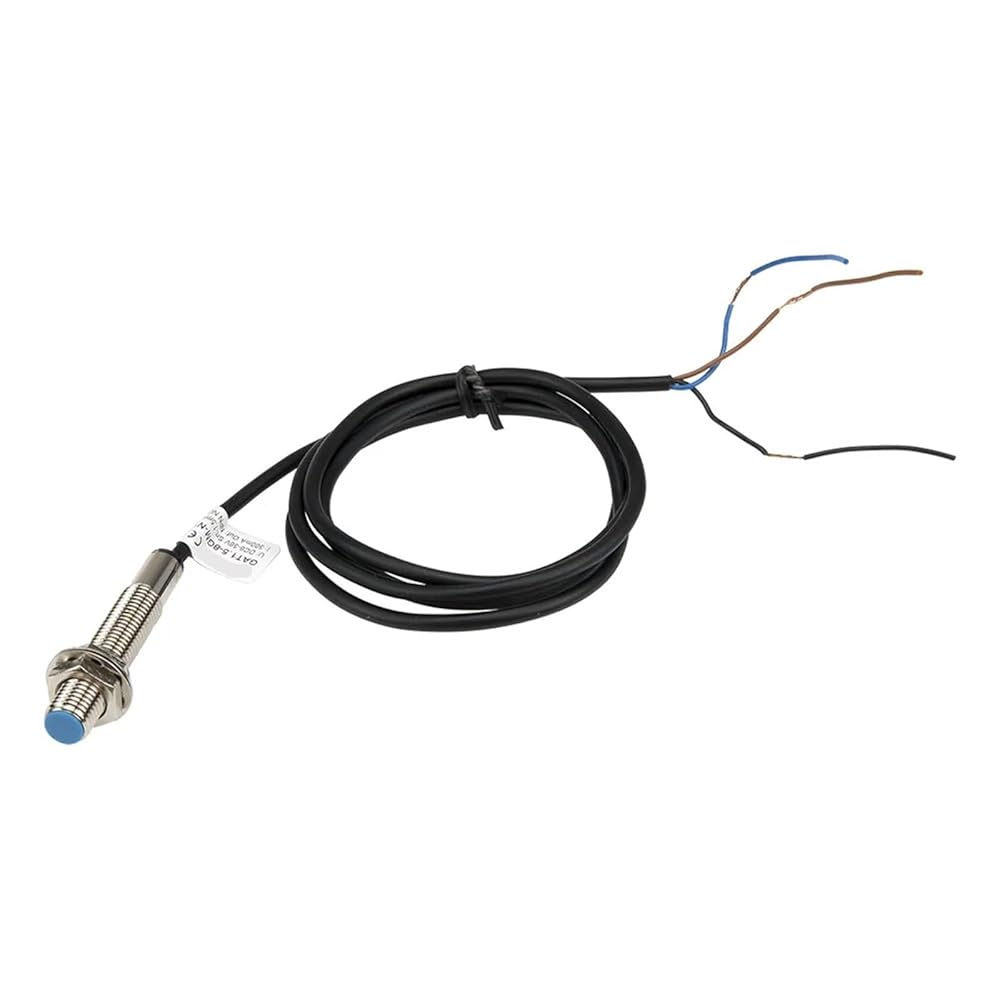

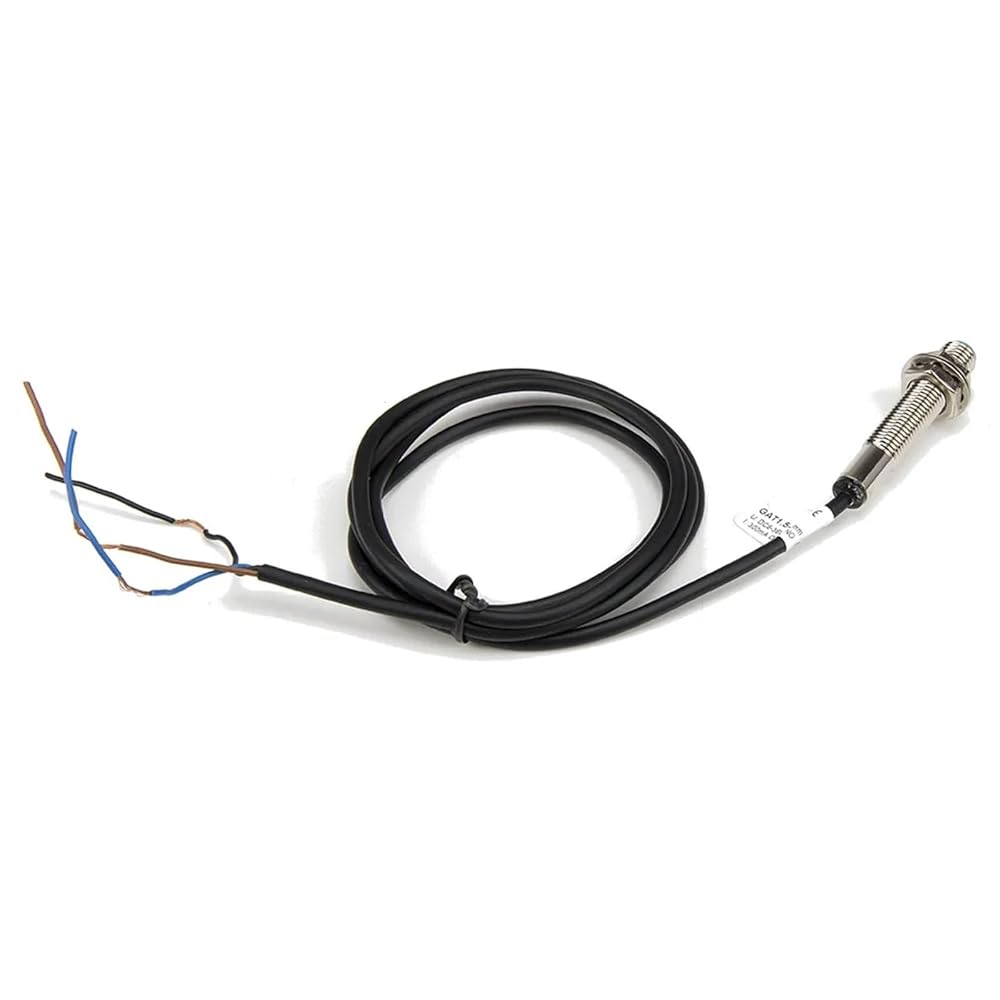

M8 1.5mm Sensing NPN NO GAT1.5-8GM-N1 General Inductive Proximity Sensor Switch, 1pc
Model number:GAT1.5-8GM series
External dimensions:M8x1x40
Installation type:Shielded
Detection distance:1.5mm±10%
Setting distance:0-1.2 mm
Supply voltage:12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current
N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object
Mild steel (8x8x1mm)
Response frequency:NPN or PNP: 2kHz; Two wires of DC: 1.5kHz; Two wires of AC: 25Hz
Leakage current
N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis:10% max. of sensing distance
Protection circuit
DC: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance:50M min (between charging part and housing)
Dielectric strength:1000Vac, 1min (between charging part and housing)
Temperature influence
±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C
±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence
±10% max. of sensing distance in rated voltage range ±15%
Model Number : GAT1.5-8GM-N1
