مميزات خاصة

【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

وصف

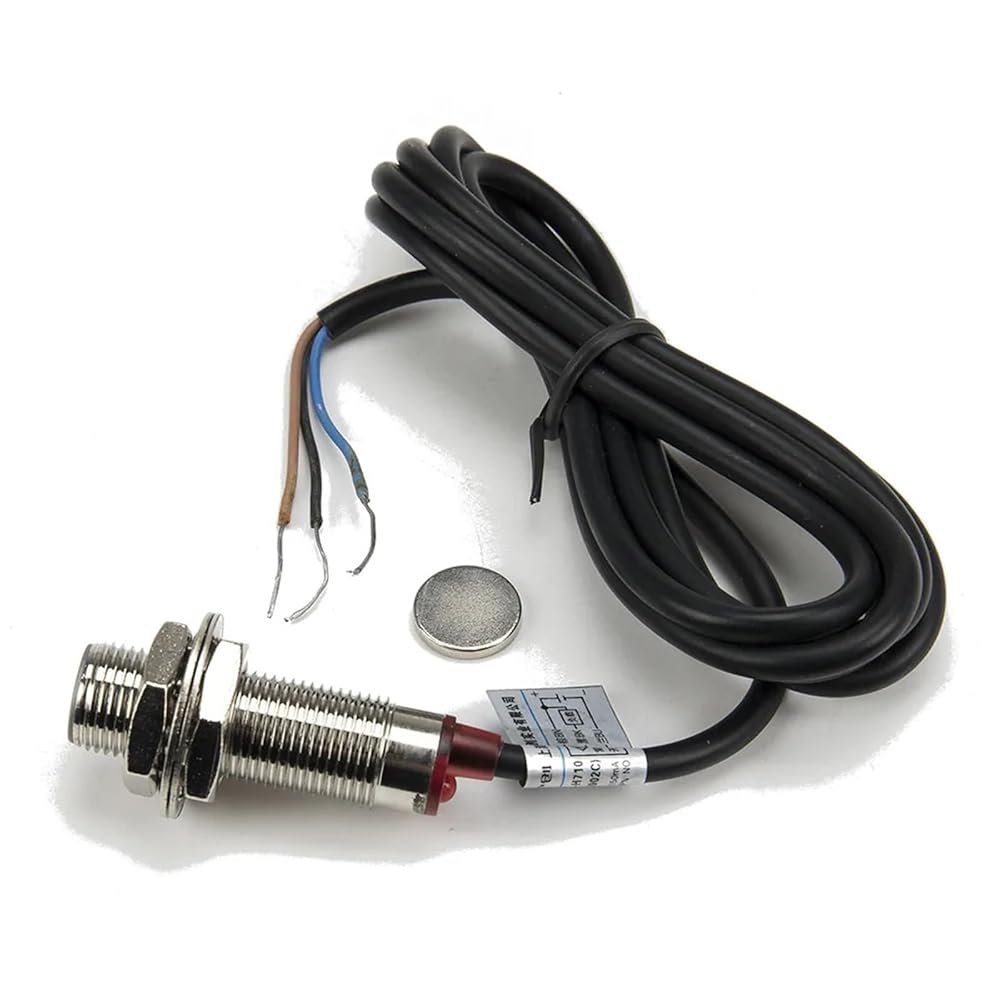

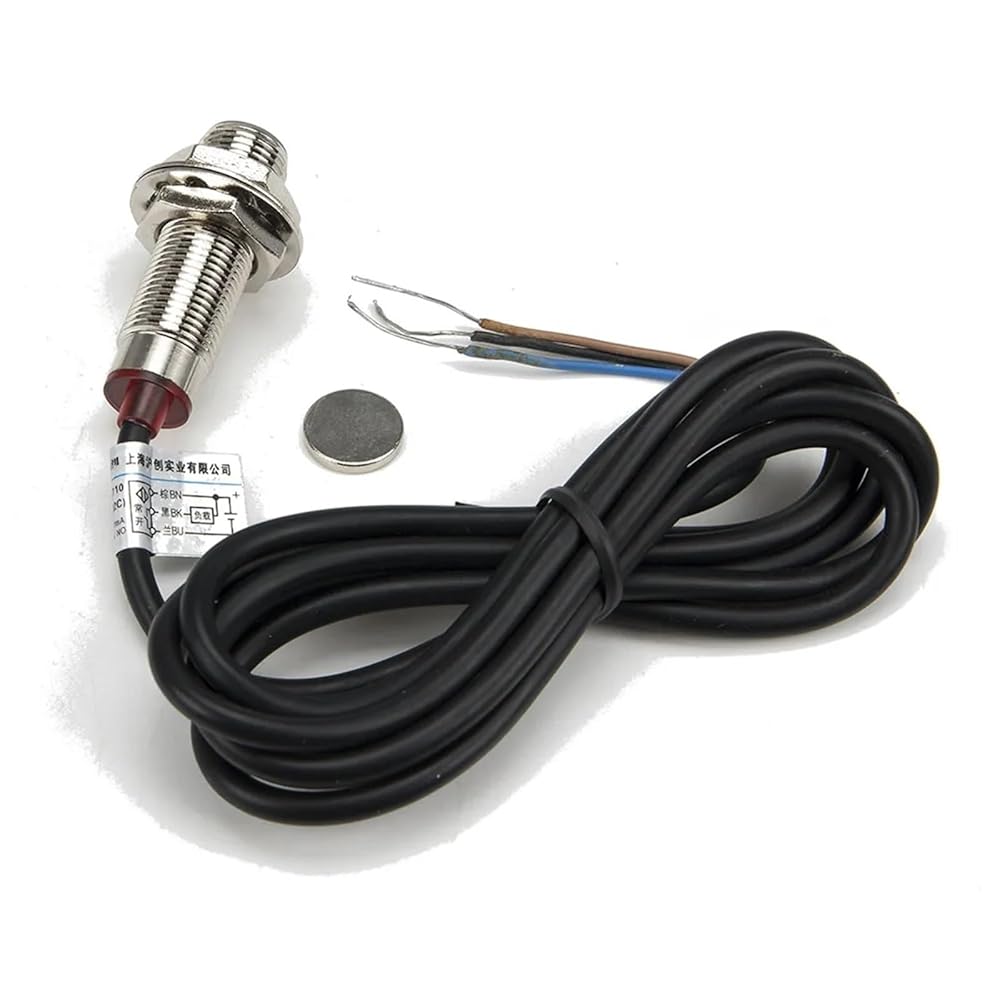

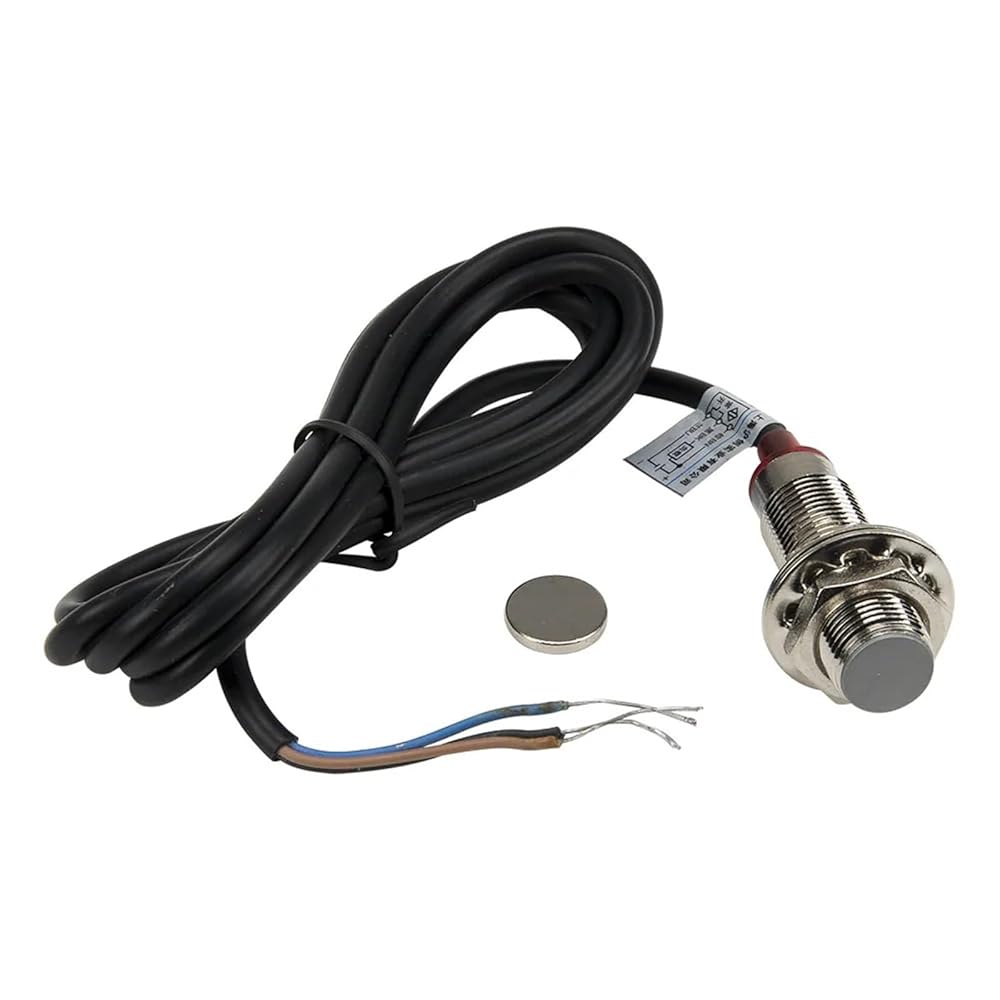

NJK-5002C M12 10mm Sensing NPN NO Hall Effect Sensor Switch, 1pc
Model number:NJK-5002 series
External dimensions:M12
Detection distance:10mm, 20mm
Supply voltage-hall effect:5-30VDC
Continuous load current:150mA
Sensing object:Permanent magnet
Response frequency:100KHz
Protection:Reverse polarity protection/Surge suppressor
Dielectric strength:1500Vac, 1min (between charging part and housing)
Cable length:default is 1.2m
Material:Case: Brass-nickel plated
Model Number : NJK-5002C
