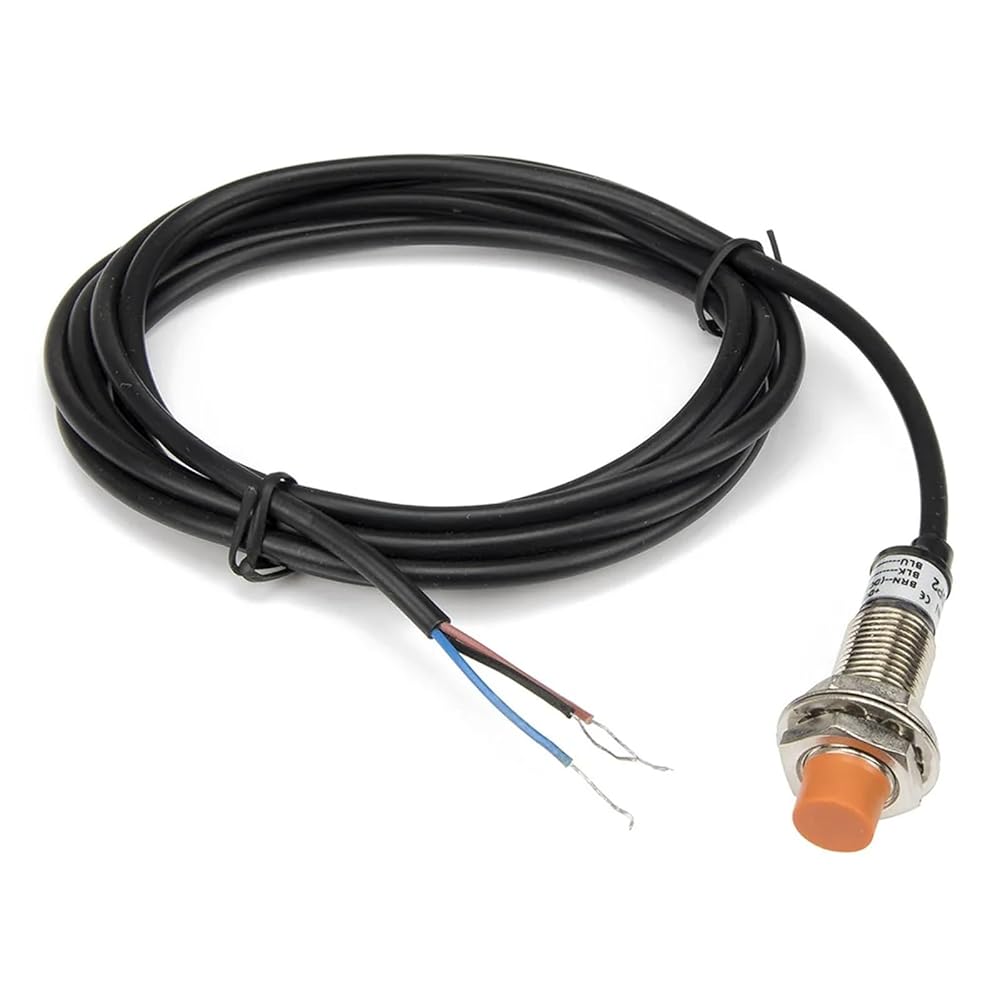

M12 4mm Sensing Proximity Sensor Switch, DC 6-36V NPN PNP NO NC PR12-4DN Non-shielded Full View, 1pc
Model number:PR12-4 series
External dimensions:M12x1x35.5
Installation type:Non-shielded
Detection distance:4mm±10%
Setting distance:0-3.2 mm
Supply voltage:12-24Vdc (6-36Vdc); 110-220Vac (90-250Vac), 50/60Hz
Rated output current
N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object:Mild steel (15x15x1mm)
Response frequency:NPN or PNP: 0.4kHz; Two wires of DC: 0.4kHz; Two wires of AC: 25Hz
Leakage current :N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis:10% max. of sensing distance
Protection circuit
DC: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance:50M min (between charging part and housing)
Dielectric strength:1000Vac, 1min (between charging part and housing)
Temperature influence
±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C
±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence:±10% max. of sensing distance in rated voltage range ±15%
Material
Case: Brass-nickel plated; Sensing surface: ABS
Model Number : PR12-4DN PR12-4N2 PR12-4P PR12-4P2
