BIGTREETECH KNOMI V1.0 Display Screen 1.28inch UI LCD for Voron StealthBurner Support Klipper Compatible with EBB SB2240/SB2209 CAN 3D Printer Parts

Sorry, this product is not available

Special Features

  • ✅BIGTREETECH KNOMI Display designed for Klipper Firmware,it can quick and easy monitoring of printer status. such as Heated Bed-warming up，Standby,Nozzle Warming Up,Leveling, Ready to Print, Start printing,printing progress,print completed.
  • ✅BTT KNOMI Display reserved Type-C port for DIY burn, Wider usage range and Built in ESP32 wifi Module Allow KNOMI to easily communicate with your printer via a WI-FI connection,Reduce constraints on installation position.
  • ✅KNOMI size is1.28inch 240RGBx240Dots Resolution 400Cd/m Brightness Wide Viewing Angle for Optimal Visibility，ensuring effortless monitoring of your 3D Printing process throughout.
  • ✅BIGTREETECH KNOMI UI is an open-source product that allows users to customize the user interface and design mounting brackets to fit their specific 3D printer,perfect for Voron StealthBurner, Use the print file provided by BIGTREETECH.

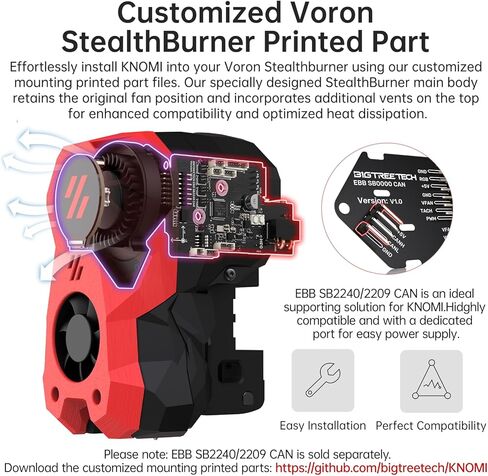

  • ✅KNOMI BTT support 5-24V DC input voltage,KNOMI can be easily powered by a variety of sources, EBB SB2240/SB2209 CAN is on ideal supporting solution for KNOMI,High compatible and with a dedicated port fir easy power suppply.

Description

Product Introduction

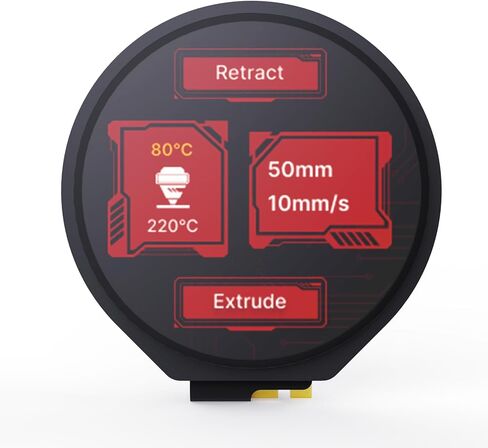

BIGTREETECH KNOMI is a mini circular display designed specifically for 3D printing with Klipper firmware, designed to provide users with a unique and personalized way to grasp the printer's operating status and data.
Display main information such as hot bed temperature, nozzle temperature, leveling status, printing progress, etc. through the KNOMI UI. KNOMI is an open source product that allows users to customize the user interface and design installation brackets to fit their 3D printers
Specifications:
Material:PCB
Overall Size:Approx.34.6x37.9x3.5mm/1.36x1.49x0.13inches
Screen Size:1.28 inches
Resolution:240RGBx240DOTS
Display Area:32.4x32.4mm
Viewing Angle:178°
Backlights Brightness:400Cd/m²
Driver Chip:GC9A01
Input:DC5V-24V
Power:6.4W
Communication:ESP32-WIFI 802.11bgn (802.11n, up to 150 Mbps)
perating center frequency range: 2412 - 2484 MHz
Memory:Flash: 4MB; PSRAM: 8MB
Firmware Support：Klipper
Operating Temperature:-20°C-70°C
Storage Temperature:-30°C-80°C
Backlights Lifespan>20,000 hours
Application:For EBB SB2240 CAN,EBB SB2209 CAN,Voron 2.4, Voron Stealthburner
