Function

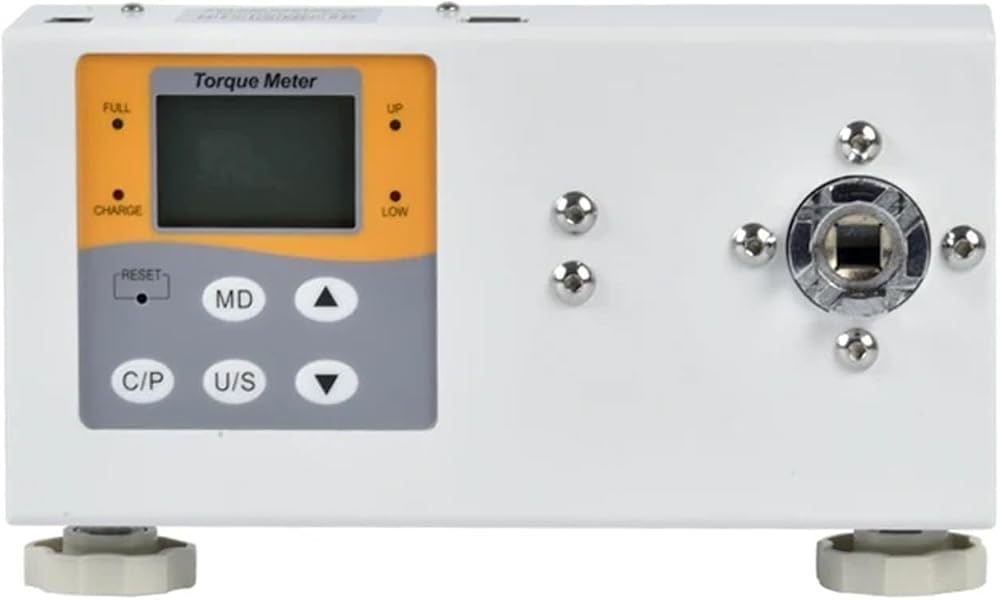

Digital torque meter is an intelligent multi-functional measuring instrument which is designed for testing
various kinds of torque. It main used in testing and calibration various kinds of electric pneumatic
screwdriver set, the torque of torque wrench, all kinds of products refer to testing of screw down force,
parts torsion destructive testing etc. It's widely used in various kinds of electric, light industry, machinery
manufacturing, research institutions, etc.
Main features
1 Accuracy ±1%
2 Four Units: N.m,kgf.cm, ft.lbf, in.lbf
3 Three Test modes: Peak, 1 Peak and Real Time modes.
4 USB interface and PC communications,using Modbus communication data format.
5 Without automatic shutdown function, time can be set freely.
6 Warning buzzer and LED lamp.
7 The preset target function: can be preset target and the target tolerance range.
TYPES
Test range
N.m
0.1000~1.0000
0.200~2.000
0.500~5.000
1.000~10.000
2.00~20.00
kgf.cm
1.0197~10.197
2.039~20.39
5.098~50.98
10.197
~101.97
20.39~203.9
ft.lbf
0.07375~0.737
5 0.1475~1.475
0.3687~3.687
0.7375~7.375
1.475~14.75
in.lbf
0.8850~8.850
1.770~17.70
4.425~44.25
8.850~88.50
17.70~177.0
Division value
N.m
0.0001
0.001
0.001
0.001
0.01
kgf.cm
0.001
0.01
0.01
0.01
0.1
ft.lbf
0.0001
0.001
0.001
0.001
0.01
in.lbf
0.001
0.01
0.01
0.01
0.1
Accuracy
±1%
transfer
USB Transfer
Mode
First Peak/Real Time/Peak
Unit
N.m/kgf.cm/ft.lbf/in.lbf
Operating
Temper
5~40
