1. Performance indicators and features
1.1. Technical Specifications
Display graduation-99999~999999;
The battery can be charged and discharged about 1,000 times;
3200mAh battery, can work continuously for 8 hours when fully charged
3200mAh battery, can work continuously for 15 hours when fully charged
Working environment -20 to 50
The weight of the meter is about 290g
Protection grade IP65
1.2. Main Function
Real-time curve display, view the force status during the work process.
Real-time automatic capture of equipment peak and valley values, analysis of sensor status.
When the battery is low, the indicator interface will display the low battery mark, when the charger is plugged in, it will display the charging mark and the charging light will indicate.
Use TYPE-C data cable (optional RS485) to directly connect with PC for Modbus communication, which is convenient for exporting force data.
A variety of alarm mode selection, upper limit alarm, lower limit alarm, peak and valley value alarm, automatic alarm of 1.2 times over range.

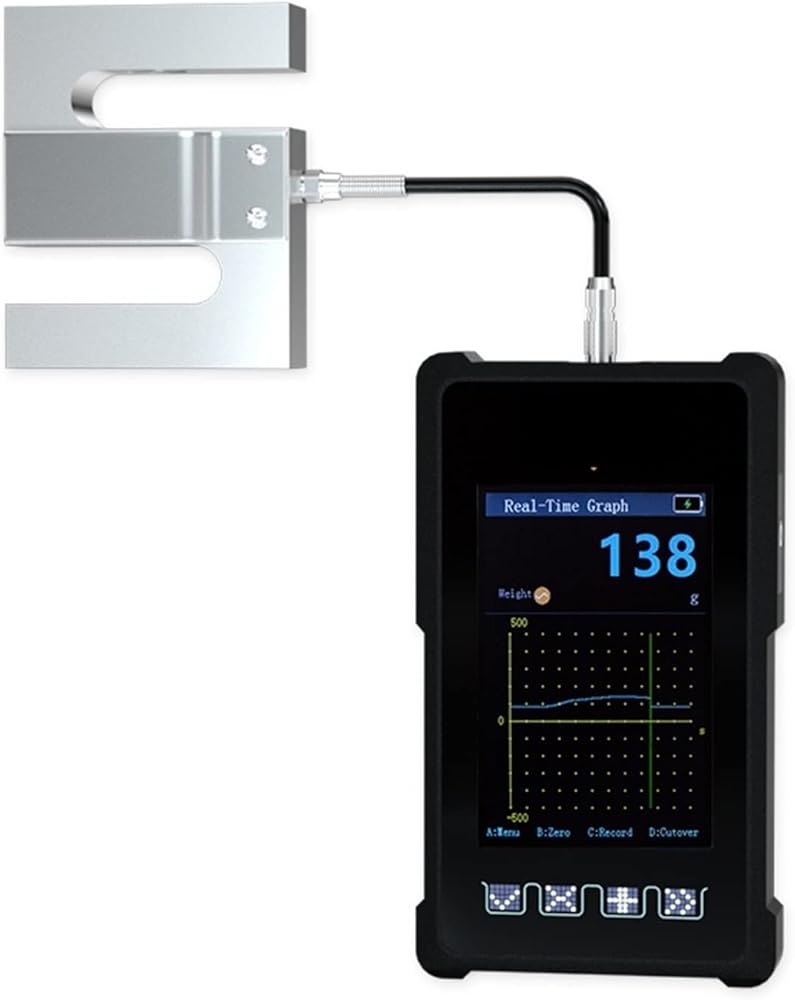

DYLY-103 S-type load cell:
1.Technical Parameters:
Parameter
Unit
Technical Specifications
Parameter
Unit
Technical Specifications
Sensitivity
mV/V
2.0±0.05
Temperature coefficient of sensitivity
%F.S/10
±0.03
Nonlinear
%F.S
±0.03
Operating temperature range
-20-+80
Hysteresis
%F.S
±0.03
Input resistance
350±20
Repeatability
%F.S
±0.03
Output Resistance
3 350±5
Creep
%F.S/3min
±0.05
Safe Overload
%F.S
150% F.S
Zero output
%F.S
±1
Insulation resistance
M
5000M(500VDC)
Zero temperature coefficient
%F.S/10
±0.03
