مستشعر مقياس زجاجي خطي 0.005 مم TTL 520 مم - 1020 مم مسطرة تشفير بصري للإزاحة الخطية لتحديد المواقع بدقة، KA300-520mm-1 in Kuwait

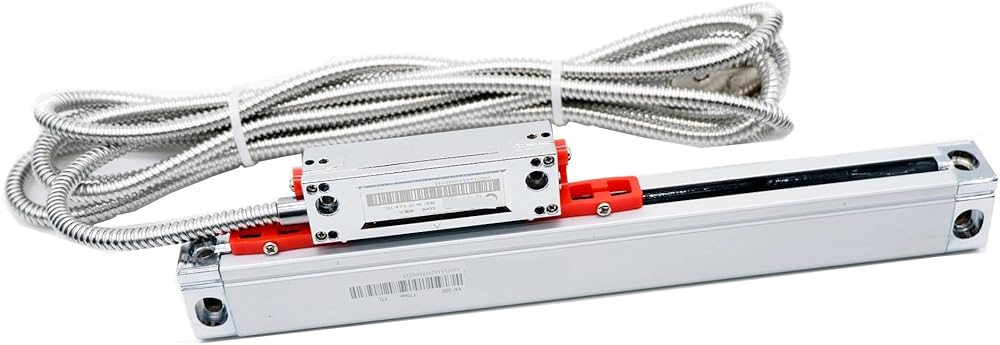

مستشعر مقياس زجاجي خطي 0.005 مم TTL 520 مم - 1020 مم مسطرة تشفير بصري للإزاحة الخطية لتحديد المواقع بدقة، KA300-520mm-1

KWD 84
اللونكا300
مقاس520 ملم
– 1 +

مميزات خاصة

  • Versatile Measurement Lengths: Available in various lengths from 520mm to 1020mm, accommodating different machine setups
  • High Precision: Offers accuracy of ±3, 5, or 10 micrometers, ensuring reliable measurements for precision applications
  • Fast Measurement Speed: Capable of measuring at speeds up to 60m/min, making it for high-efficiency operations
  • Design: With an IP55 protection rating, it is resistant to dust and water, ensuring longevity in various environments
  • Easy Installation: Comes complete with a scale cover, mounting bracket, and screws, facilitating straightforward setup and integration

وصف

Product name: Linear scale
Available measuring length: 520 570 620 670 720 770 820 870 920 970 1020mm
Cross-sectional area: 25mm X 34mm
Accuracy: +/- 3, 5, 10 (20 degrees, 680 F 1000mm)
Maximum measuring speed: 60m/min
Protection level: IP55
Resolution: 1um/ 5um (0.001mm/0.005mm)
Output signal: TTL / EIA-422-A
Cable standard: 3 meters
Bar spacing: 0.02mm
Power supply: +5V±5%, 80mA
Operating temperature: 0-45 degrees ℃
Connector: 9 pins
Order includes
-1 piece KA-300 scale
-1 piece scale cover
-1 piece mounting bracket
-1 piece screw bag
