Model number
Type
Range
Related product
DH-670
Ammeter
Direct Connection(AC)
1A,2A,3A,5A,10A,15A,20A,25A,30A,50A
Order
Need to equipcurrent
30/5,50/5, 75/5, 100/5,150/5, 200/5, 250/5, 300/5, 400/5, 500/5,600/5, 800/5, 1K/5, 1.5K/5, 2K/5, 3K/5A
Order
DH-670
Voltmeter
Direct Connection(AC)
5V,10V,15V,20V,30V,50V,100V,150V,200V,250V,300V,400V, 450V,500V
Order
Special specifications can be customizedand Please contact me.
Parameter

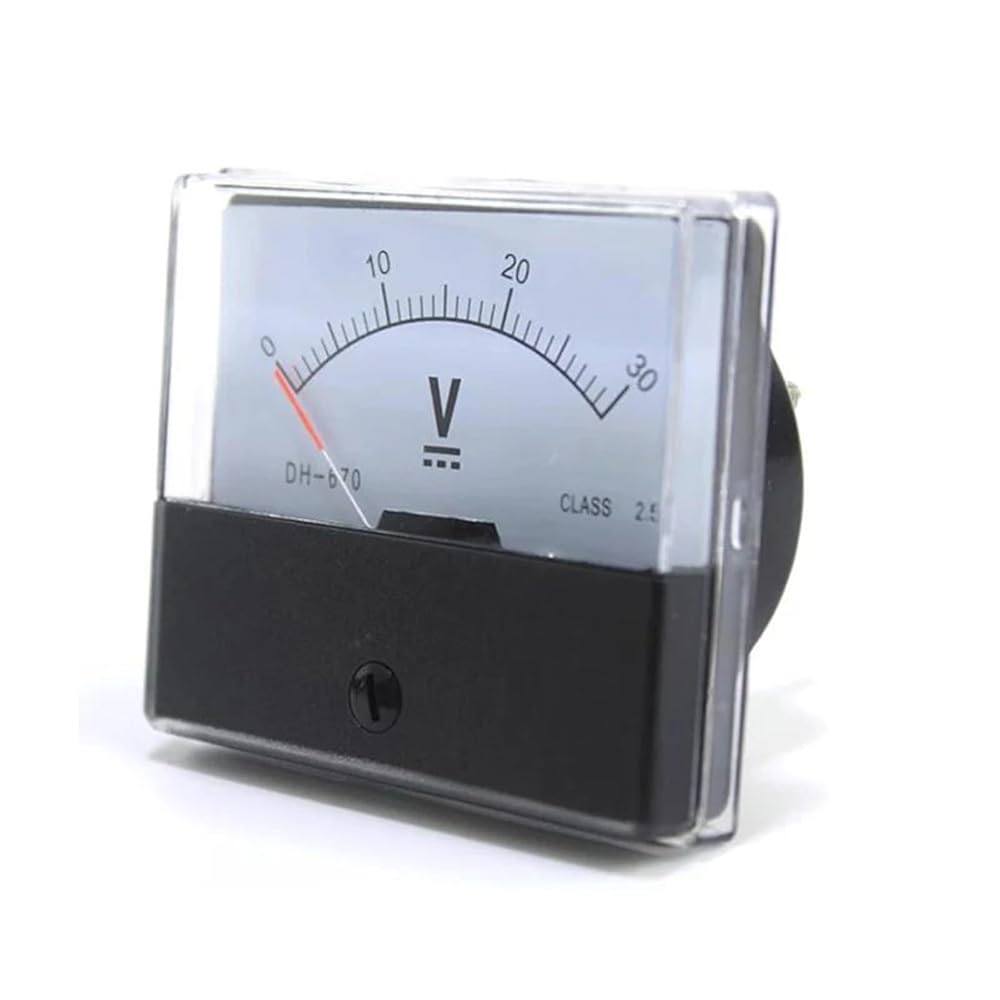

Product model:DH-670
Accuracy grade:Ammeter:class 2.5
Voltmeter:class 2.0
Overall dimension: 60mm*70mm
Hole size: see the following figure
Measuring range:
Ammeter:1A-50A(direct access),30A -10kA*/5A (Use with external connection device)
Voltmeter:5V-600V(direct access),380V-450kV*/100V(Use with external connection device)
Working position: vertical
Operating temperature :-20c-50c
Working humidity: 80% RHmax non-condensing
==========
Dimensions : 60X70mm
Operating Temperature : -20-50
Supply Voltage :
Accuracy Class : Class 2.5
Model Number : DH670-V
Display Type : Analog Only
DIY Supplies : ELECTRICAL
