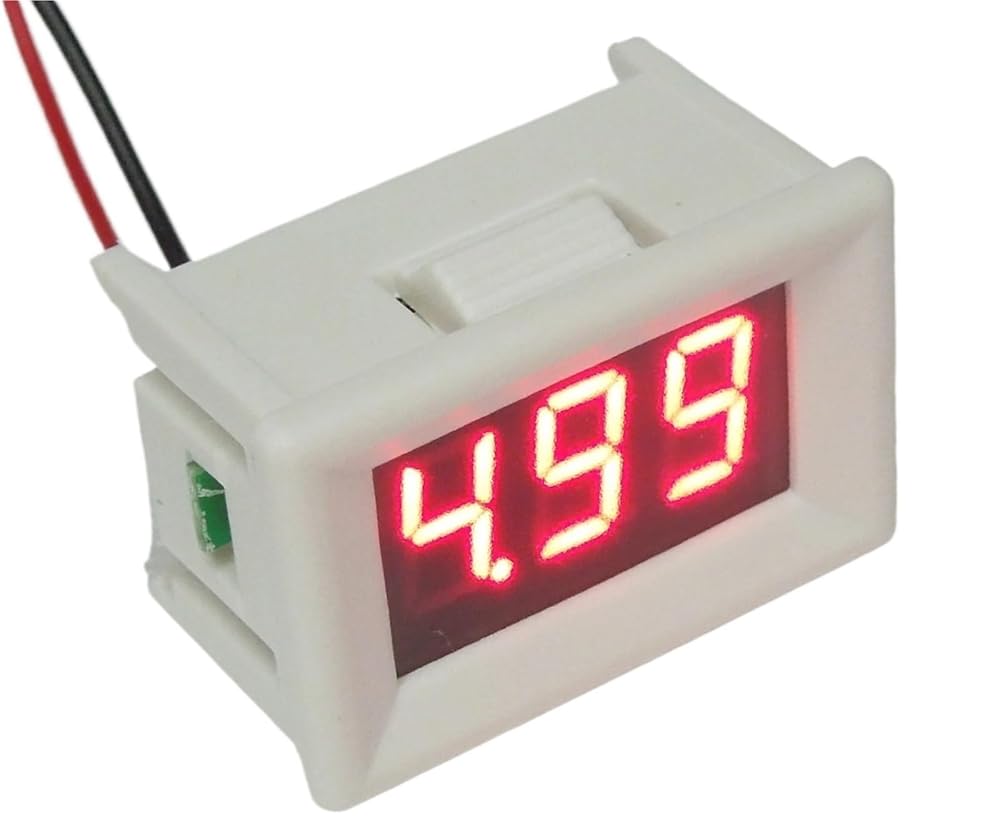

YB21 Voltmeter 0-10V 0-30V 0-100V 0-300V 0-600V Mini Voltage Meter 3-Wire 0.36'' Digital LED Volt Panel Meter Volt Tester
Attention:
The power supply voltage of the instrument should not exceed 30V, and enough safety voltage space should be reserved;
Due to the limited space of the sticker, some infrequent ranges will be manually rewritten on the sticker, please do not order if you mind it.
DC0- 100V, DC0-300V: When the measured value is less than 9.9V, only two digits will be displayed; when the measured value is greater than 9.9V, only three digits will be displayed.
DC0-600V: When the measured value is less than 99V, only two digits are displayed; when the measured value is greater than 99V, only three digits are displayed.
Technical Parameters:
Dimension:34.8*23*20.5 mm
Mounting hole:32.8*21.7mm
Power Supply:DC3.3-30V
Testvoltage:DC0~10V/30V/100V/300V/600V/1000V
Display mode: 0.36 "LED with red/blue/green digits
Measurement accuracy: 1% (± 2 digits)
Measurement rate: 500mS / time
Features:
With threewires,the wiring is simple, the installation is convenient.
Small size, can be used for various voltage testing.
If there is a small tolerance,you can calibrate by the potentiometer on the circuit board.
With polarity protection function for meter power supply.
With three wires, can be connected to cars,e-bikes or motorcycles.
Connection Diagram:
Red wire: Power supply Positive terminal
Black wire: Public Negative terminal(Power supply and test negative terminal)
Yellow wire: Testing terminal
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB21
DIY Supplies : ELECTRICAL
Dimensions : 34.8*23*20.5mm
Operating Temperature : -10~50 degrees
Accuracy Class : 1% +/- 2 digits
Power Supply :
Display Type : Digital Only
Display mode : 0.36 inch LED Digital with red/blue/green font
Power supply : DC3.3-30V
Mounting hole : 32.8*21.7mm
Test voltage : DC0-10V/30V/100V/300V/600V
Feature : Three wires
