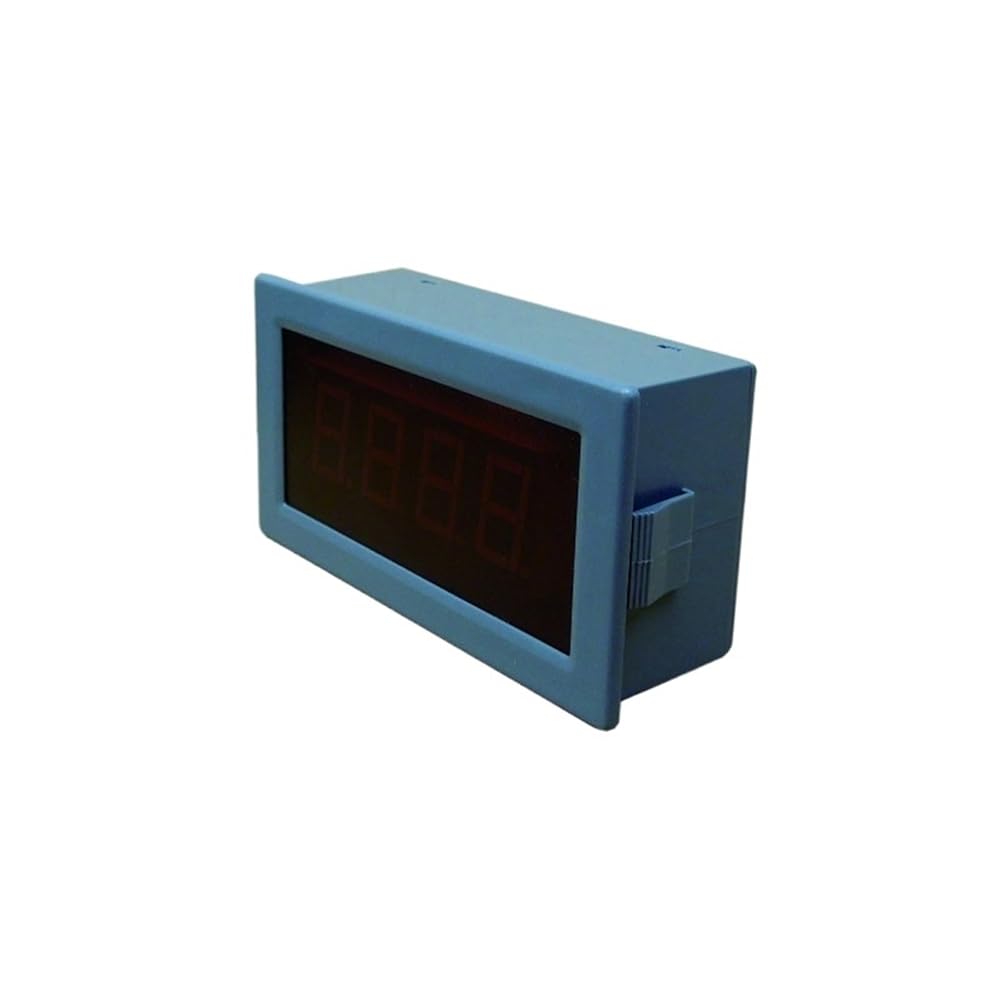

YB5135C Digital Counter Magnetic Switch Magnet Punch Machine LED 0.56 Inch Electrical Counter Mould Counter Accumulation 5V or 8-24V
Technical Parameters:
1. Input pulse signal: NPN/PNP collector open circuit, contact switch, contactless switch, travel switch, level pulse, etc.
2. Input signal voltage: high level H=4~30V, low level L=0~ 0.6V,Falling edge trigger.
3. Measurement range: accumulative count 0~9999.
4. Counting frequency: less than 2000Hz.
5. Display type: 0.56 " four bit digital LED display Panel
6. Supply voltage:DC5V or 8-24V(12V and 24V are compatible)
7. Current: less than 100mA
8. Working temperature: -10 ~ 50 , (relative humidity below 80%)
9. Outline dimensions: 79 * 43 * 25mm.
Connection Diagram:
Work demonstration:
At work, let the magnet close to magnetic switch (distance is about 0.5-1 cm), and then let it away from the magnetic switch (more than 3-5 cm), counter plus 1. Repeat the above process, the counter will be accumulated count: 0,1,2,3,4,5,6,......(Note: It start to count as soon as the magnet is close to.)
Attention:
1. the counting signal of the counter and the switch or circuit of the zero signal input should be as close to the terminal of the counter as possible, make the signal line as short as possible.
2. Avoid any other such as power lines or power lines, etc., to avoid unnecessary interference. If necessary, please use the shield wire, and the shielding layer is connected to the counter "+".
3. It is not recommended to use mechanical switch or micro switch, because they have a relatively short life span and can be counted by mistakes after using for a long time.If use mechanical switch or micro switch, please try to use the better quality, lest the false count, strongly recommend the magnetic control switch.
==========
Hign-concerned Chemical : None
Model Number : YB5135C
Type : 4-digit Counters
DIY Supplies : ELECTRICAL
Measurement range : 0~9999
Counting frequency : less than 2000Hz.
Display type : 0.56 " Four bit digital LED display Panel
Supply voltage : DC5V or 8-24V(12V and 24V are compatible)
Current : less than 100mA
Working temperature : -10 ~ 50 degree
Outline dimension : 79 * 43 * 25mm
Mounting hole : 75 x 39.5mm
Shell type : Semi-closed/Full-closed
