Attention:
1. Rear view: Fully enclosed plastic shell, no high voltage parts of PCB can be touched by hand, safer and more reliable to use!!!
2. This voltmeter is designed using the principle of capacitor . Because the higher the frequency, the lower the impedance of the capacitor, so it is not suitable for high-frequency electronic speed regulation, non-commercial sine wave frequency, or other occasions with high-frequency components,or it will be burnt!!!
3.This meter shows the Average Value.
Technical parameters:
Test voltage: AC30-500V; Resolution:1V
Power supply:No need for additional power supply, two-wire system
Text precision:1%+/-2 digits

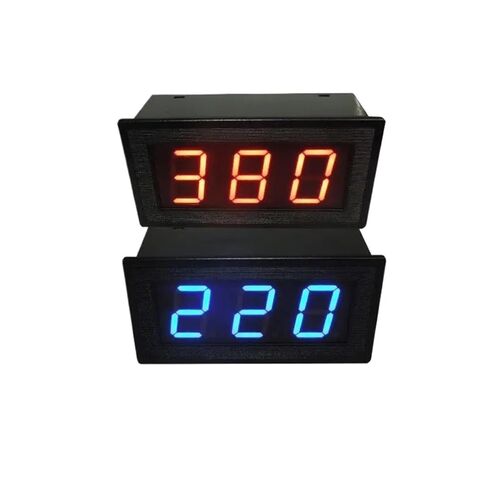

Display mode:0.8'' LED with red /blue digits
Outline dimension:79×43×25 mm
Weight:About 60g
Mesuring speed:twice/S
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
Operating temperature: -10 ~ +50
Features:
Good product stability, high measurement accuracy, strong anti-interference ability.
Appearance adopts standard size, easy to install.
This voltmeter has only two wires, simple wiring and low cost.
==========
Hign-concerned Chemical : None
Model Number : YB5130B
DIY Supplies : ELECTRICAL
Dimensions : 79*43*25 mm
Operating Temperature : -10 ~ +50 degrees
Accuracy Class : 1%+/-2 digits
Power Supply : AC
Display Type : Digital Only
Test voltage : AC30-500V
Feature : Two-wire
Display mode : 0.8'' LED digital with red or blue digits
Resolution : 1V
Weight : About 60g
