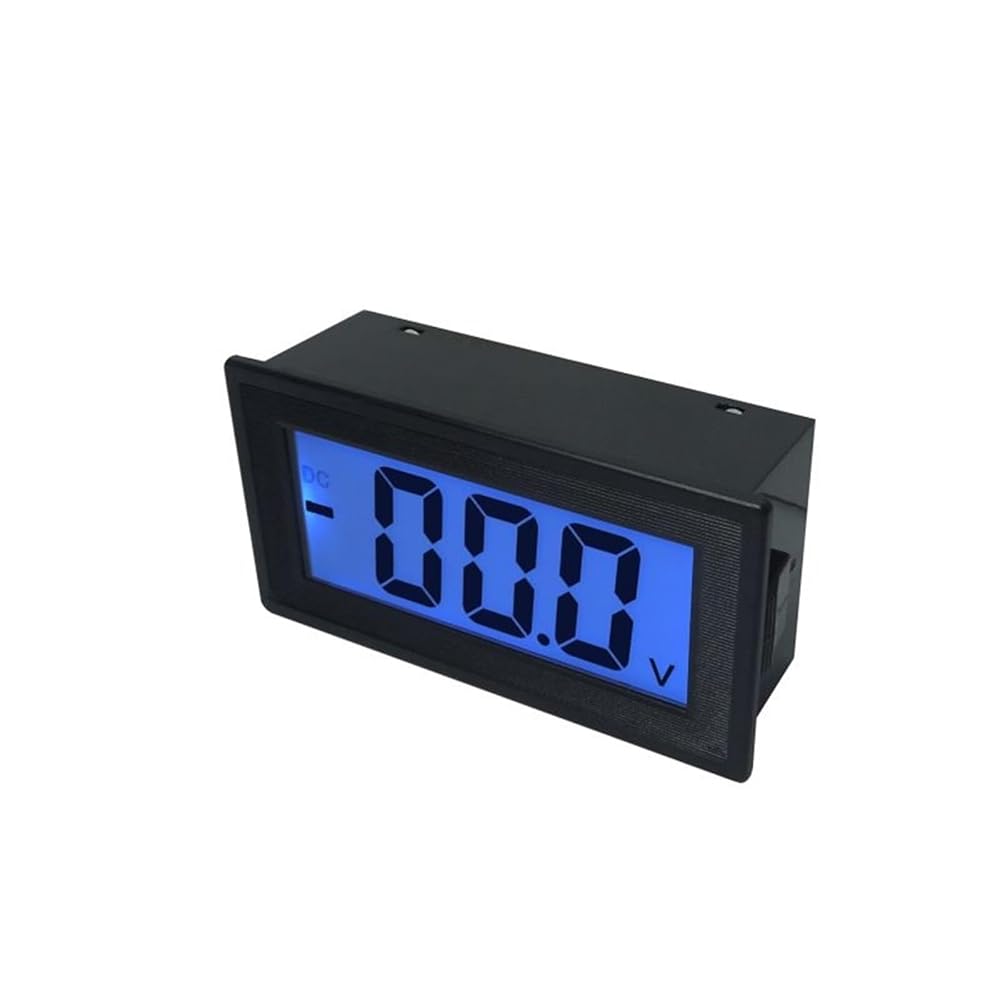

YB5135DB Voltage Meter Power Supply AC 100-240V 220V Digital Voltmeter 200mV 2V 20V 200V 500V 1000V Volt Panel Meter
Technical Parameters:
Power supply: AC100-240V
Test voltage:DC20mV/200mV/2V/20V/200V/500V/1000V
Dimension:79*43*25mm
Mounting hole:76*39.5mm
Display mode: with blue backlight
Measurement accuracy: 0.5% (± 2 digits)
Measuring speed: 2 times/S
Feature:
Full-closed shell type,with a backcover,safe,dustproof and beautiful.
The positive and negative voltagecan be measured.
Universal wide supply voltage: AC100-240V.
Specification:
Connection Diagram:
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB5135DB
DIY Supplies : ELECTRICAL
Dimensions : 79*43*25mm
Operating Temperature : -10~50 degree
Accuracy Class : 0.5%+/-2 digits
Power Supply : AC
Display Type : Digital Only
Mounting holes : 76*39.5mm
Display : with blue backlight
Working humidity : 10 ~ 80%
Working pressure : 80 ~ 106kPa
Power supply : AC100-240V
Test voltage : DC200mV/2V/20V/200V/500V/1000V
Measuring speed : >/= twice per second
Weight : 61g
Feature : Measure plus and minus voltage
visible area : 61*24.5mm
