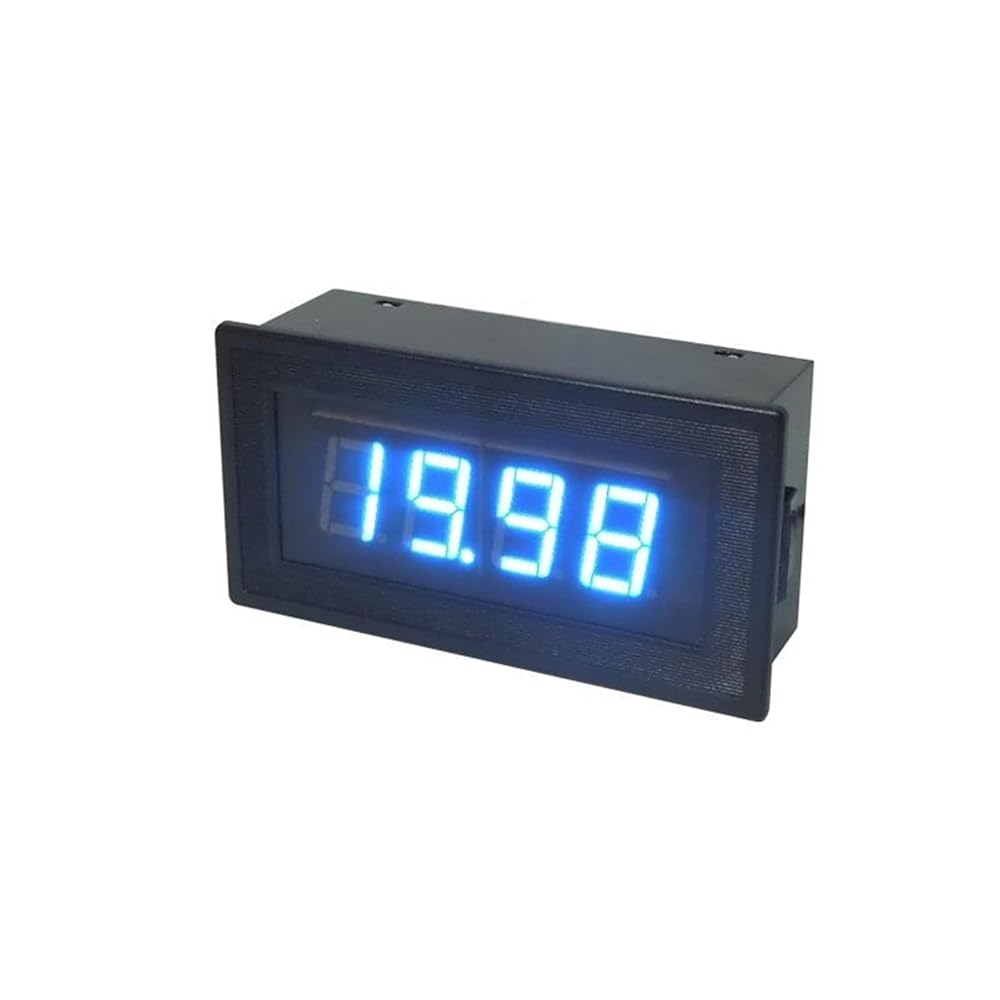

YB5135B Voltmeter Power Supply AC100-240V 220V LED Digital Voltage Meter Voltmetre Tester DC20mV 200mV 2V/20V 200V 500V 1000V
Technical Parameters:
Power supply: AC100-240V
Test voltage:DC20mV/200mV/2V/20V/200V/500V/1000V
Dimension:79*43*25 mm
Mounting hole:76*39.5mm
Display mode: 0.56 "LED with red/blue digits
Measurement accuracy: 0.5% (± 2 digits)
Measuring speed: 2 times/S
Feature:
Full-closed shell type,with a backcover,safe,dustproof and beautiful.
Universal wide supply voltage: AC100-240V.
The positive and negative voltage can be measured.
Specification:
Package Include:
1 piece* LED Digital Voltage Meter
Connection Diagram:
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
Hign-concerned Chemical : None
Model Number : YB5135B
DIY Supplies : ELECTRICAL
Dimensions : 79*43*25mm
Operating Temperature : -10~50 degree
Accuracy Class : 0.5%+/-2 digits
Power Supply : AC
Display Type : Digital Only
Mounting hole : 76*39.5mm
Display type : 0.56''LED(red/blue)
Working humidity : 10 ~ 80%
Working pressure : 80 ~ 106kPa
Power supply : AC100-240V
Test voltage : DC20mV/200mV/2V/20V/200V/500V
Measuring speed : Twice per second
Weight : 53g
Feature : Measure plus and minus voltage
