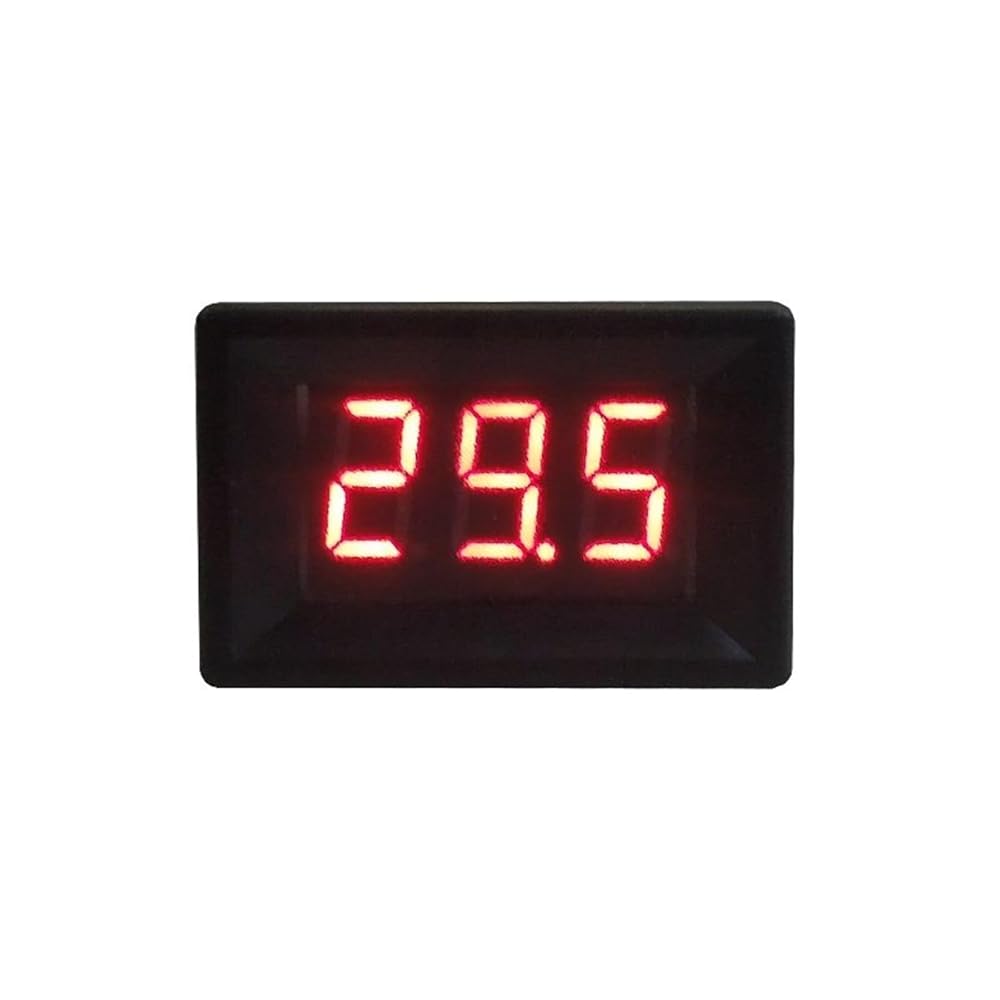

Voltage Meter 2.5-30V 8-200V LED Digital Voltmeter Volt Panel Meter Mini Voltmeter for Motocycle Car Voltage Tester Two Wires
Technical Parameters:
Dimension:34.8*23*20.5 mm
Mounting hole:32.8*21.7mm
Test voltage: DC2.5-30V/2.8-30V/8-100V/8-200V
Display mode: 0.36 "LED with red/blue/green digits
Measurement accuracy: 1% (± 2 digits)
Measurement rate: 500mS / time
Features:
With two wires,the wiring is simple, the installation is convenient.
Small size, can be used for various voltage testing.
If there is a small tolerance, you cancalibrate by the potentiometeron the circuit board.
With polarity protection function for meter power supply.
With two wires, can be connected to cars,e-bikes or motorcycles.
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB21
DIY Supplies : ELECTRICAL
Dimensions : 34.8*23*20.5mm
Operating Temperature : -10~50 degrees
Accuracy Class : 1% +/- 2 digits
Power Supply :
Display Type : Digital Only
Display mode : 0.36'' LED Digital with red/blue/green font
Mounting hole : 32.8*21.7mm
Test voltage : DC2.5-30V/2.8-30V/DC8-100V/DC8-200V
Feature : Two wires
