Cross Roller Guides

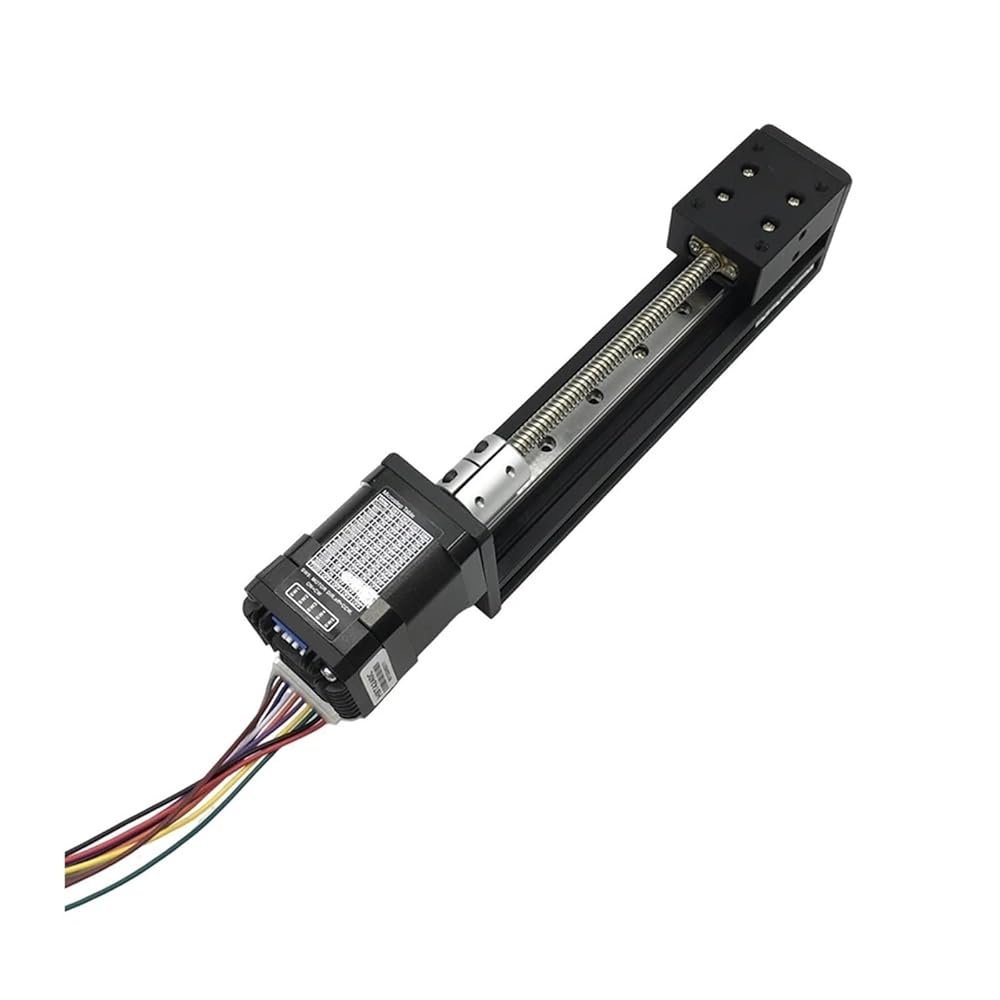

Slide table parameters:
Model: XT08
Effective stroke/travel: 50-300mm
Actual effective stroke: effective stroke + 10mm
Total length of slide: effective stroke + 95mm
Horizontal load-bearing capacity: 15KG (maximum)
Vertical load-bearing capacity: 5KG (maximum)
Mobile phone panel size: 50*40mm
Mobile phone panel material: Metal
Repeat positioning accuracy: 0.03mm
Maximum speed: 80mm/s
Block:MGN12H
Screw diameter: 8mm trapezoidal screw
Screw precision: C7
Track width: 12MM Block: MGN12H Material: Industrial aluminum alloy module + metal structure mobile panel
Screw type: T6*4 (diameter 4mm, pitch 4mm)
Tip: The pitch you selected is 4mm, which means that the moving panel moves 4mm for each rotation of the motor.
Nema 17 open-loop motor parameters:
Model: Nema 17 (42*42mm flange)
Shaft diameter: 5mm
Holding Torque: 0.28Nm (34mm body) / 0.42Nm (40mm body) / 0.56Nm (48mm body) / 0.70Nm (60mm body)
