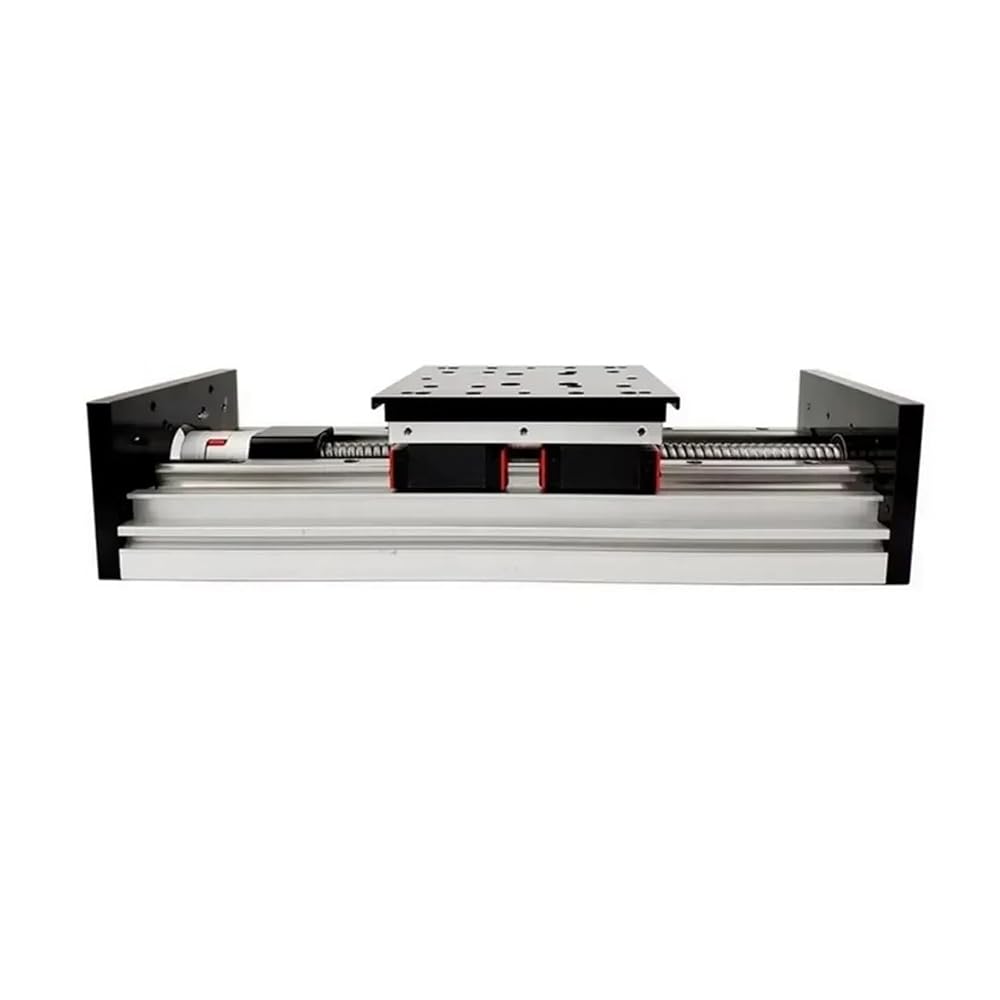

Cross Roller Guides
Model: SXG150*170
Rail width: 20MM
Guide rail model: 2*HGR20
Building block model: 4*HGH20
Ball screw accuracy: C7
Maximum speed: 100 mm/s
Horizontal load-bearing capacity: 250KG (maximum)
Vertical load-bearing capacity: 100KG (maximum)
Effective stroke: 100mm-2000mm
Mobile phone panel size: 150mm*175mm
Repeat positioning accuracy: 0.02mm
Slide rail material: industrial aluminum profile
Total length of slide (L): effective stroke + 240mm
Ball screw model: SFU1605 / SFU1610 / SFU2005 / SFU2010 (customizable SFU2020 / SFU2505 / SFU2510)

Model: SXG150*170
Rail width or diameter: 20mm
Origin: CN (Origin)
Certification: CE
Slide rail material: industrial aluminum profile
Effective stroke: 100mm-2000mm
Horizontal load: 250KG (maximum)
Vertical load: 100KG (maximum)
Mobile phone panel size: 150mm*170mm
Total length of slide: effective stroke + 217MM
Repeat positioning accuracy: 0.02mm
Maximum speed: 100 mm/s
Guide rail model: 2*HGR20
Building block model: 4*HGH20
Rail width: 20MM
Screw precision: C7
Ball screw: SFU2010/SFU1605/SFU1610/SFU2005
