120X Lens:
120X C-Mount Lens: ( 21.5 Inch Monitor)
Zoom C-Mount Lens
0.35X C-Mount Adapter
Lens magnification power with 0.7X-4.5X
Working distance: 100mm
Max Field of View: 27mm*15mm
Minimum field of view: 4mm*2.3mm

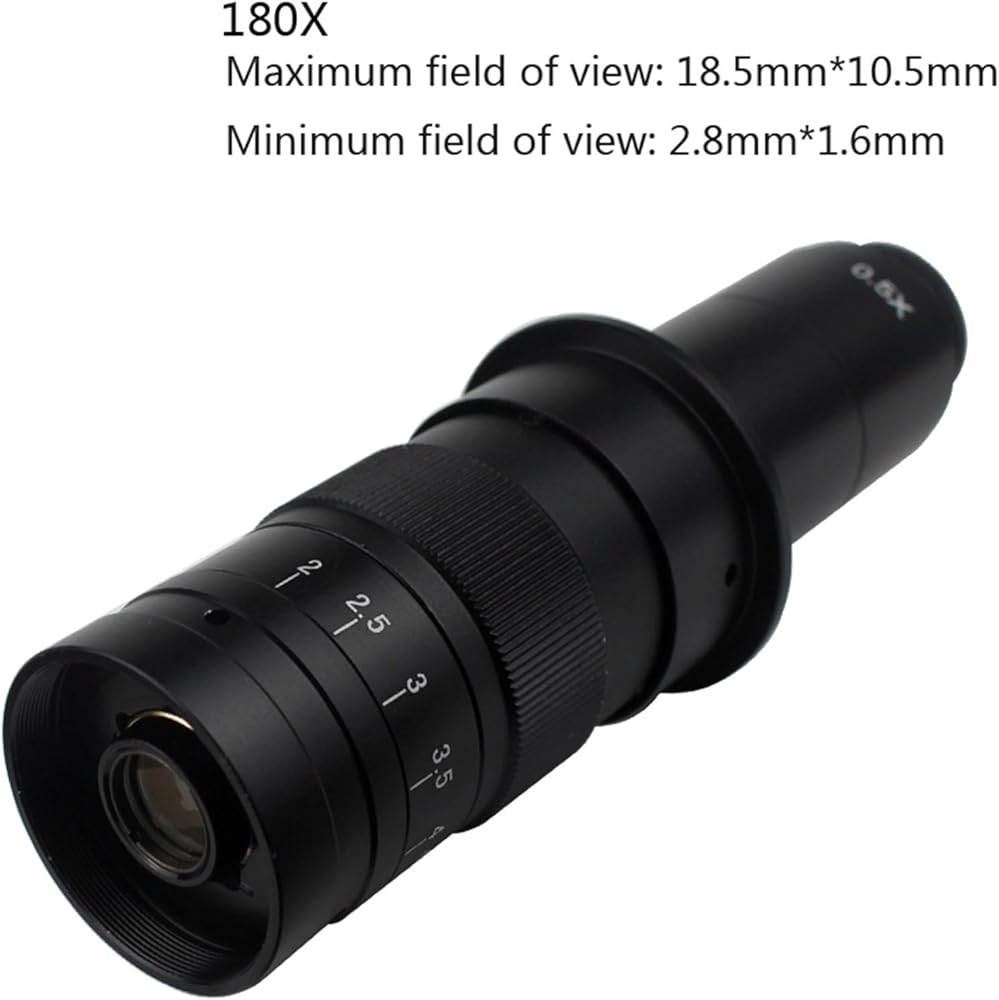

180X Lens:
180X C-Mount Lens: (21.5" Monitor)
Zoom C-Mount Lens
0.5X C-Mount Adapter
Lens magnification power with 0.7X-4.5X
Working distance: 100mm
Max Field of View: 18.5mm*10.5mm
Minimum field of view: 2.8mm*1.6mm
300X Lens:
300X C-Mount Lens: ( 21.5 Inch Monitor)
Zoom C-Mount Lens
1X C-Mount Adapter
Lens magnification power with 0.7X-4.5X
Working distance: 100mm
Maximum field of view: 9.5mm*5.5mm
Minimum field of view: 1.5mm*1mm
Package included:
1 x 120X/180X/300X C-Mount Lens (Optional Accessories)

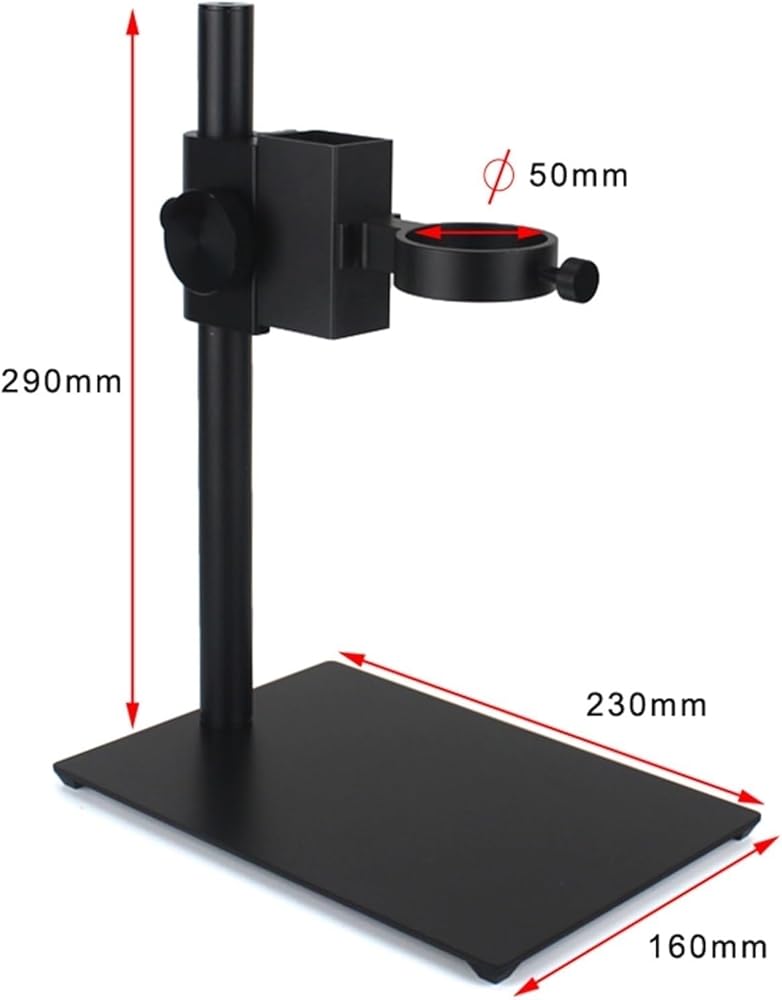

1 x Camera Tripod
1 x Microscope Camera Set (Optional Accessories)
1 x Power supply.
1 x IR Remote Control
1 x LED Ring Light
48MP 4K 60Fps HDMI USB:
Camera Specifications:
Sensor: 1/2.33 inch 48 megapixel CMOS sensor
Pixel size: 1.335 µm × 1.335 µm
HDMI output: 1920*1080 60PFS
USB output: 1920*1080/30 1280*720/30 640*480/30 320*240/30(MJPG)
Camera interface:C/CS
Exposure : Automatic/Manual
Exposure Compensation : Support
White Balance : Automatic/Manual, RGB Adjustable
Storage: Maximum Support 64GB
Input Voltage:DC 5v-12v
line : Supports 8 straight lines of adjustable color, thickness and position
Centerline : Support
Remote control: Support remote control operation
Net Weight:250g
Coarse Weight:450g
Product size: 66*66*49mm
13MP 30Fps HDMI USB:
Function:
Sensor: gc2053
Total Dimension: 20*70*70mm
Video interface: HDMI VGA
Objectives: CS
Working Voltage:12V
Working Current: 150mA
Optical Format: 1/3"
Pixel Size:2.8um*2.8um
Pixel Array : 13MP
TV Lines:1200TVLine
FPS of Max Image: 30FPS
