Camera Settings:
38MP 2K HDMI USB
The sensor: imx291
Overall dimension: 20 x 70 x 70 mm.
Video interface: HDMI.
USB2.0: 1920*1080 to 30FPS 1280*720 to 30FPS 640*480 at 30FPS
Lens: CS.
Operating voltage: 12.
Working current: 120mA.
Power supply: MAX 0.15W 12V, 0.12A
Optical format: 1/2.3"
Pixel size: 1.4 um x 1.4 um.
Pixel array: 38MP (4632*3488)
TV lines:2000TVLine
Maximum image FPS: 60FPS
Scan mode: progressive
Shutter mode: electronic shutter.
Dynamic range: 60dB
Radio S/N: 45 dB
AWB Mode: Single/Manual/Automatic White Balance
HDR: adjustable
Cross line: supports 5 horizontal and vertical colors/adjustable line width
B/W: allow
Freeze:allow
Display Resolution Output: HDMI: 1920*1080
HDMI cable: Supports 4:3, 16:9, 16:10 displays
About the light:
Input Voltage: AC100-240V 50/60
Output Voltage: DC 12V
Output power: 5W
Degree of protection: IP40.
Working distance: 40-160mm
Maximum illumination: 50,000 to 60,000Lux
Light colour temperature: 6500 - 7000 K.
Brightness adjustment: 1-100%
Shell material: engineering plastic (environmentally friendly material).
Installation size: maximum 62mm, minimum 33mm
Number of LEDs: 56 bright LED particles
1-180X Type C Mount Lens:
High definition, requires a C-mount microscope camera to be used.
0.5X C Mount Adapter
Zoom ratios: 6.5:1
Working distance: 50~155mm

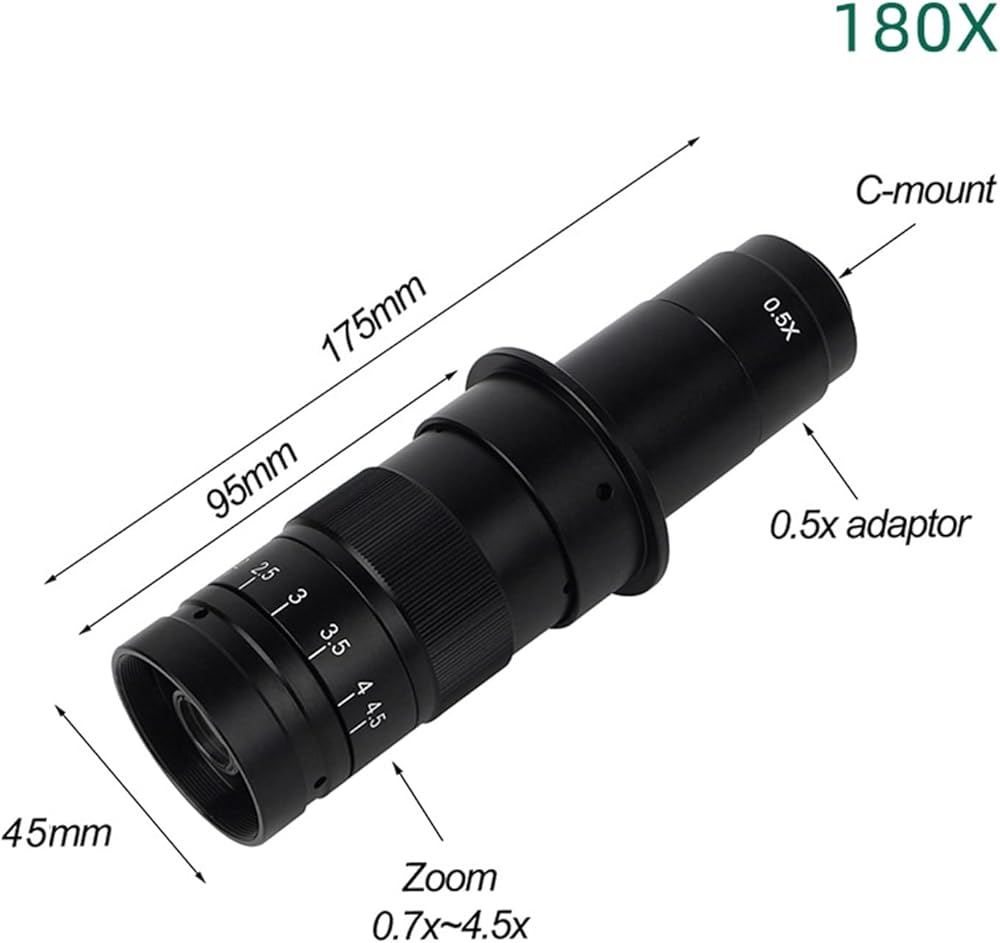

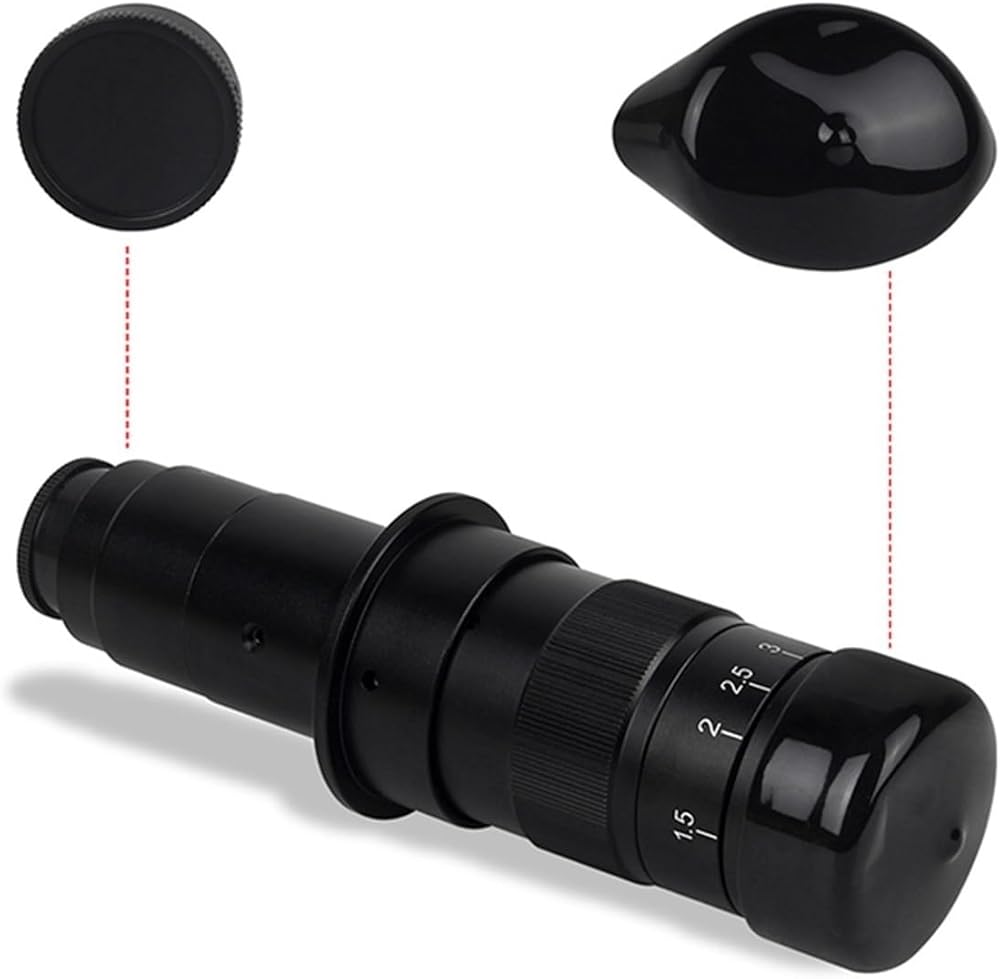

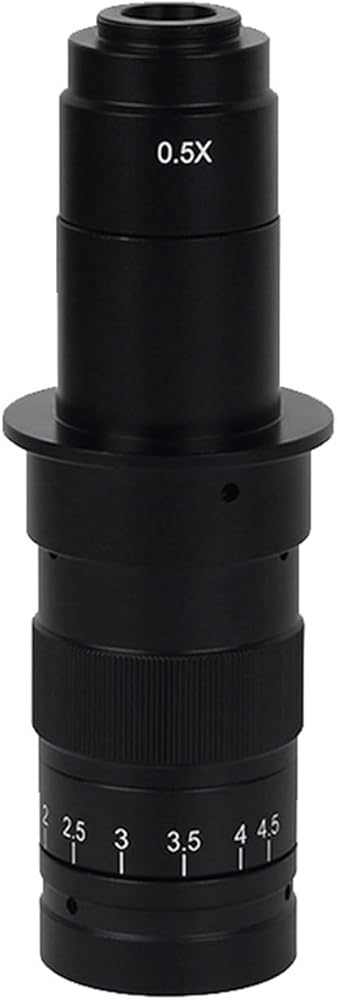

Zoom C Mount Lens
Magnification: 8X ~ 180X
Size: 175 mm x 50 mm.
Weight: 0.6 kg
Packing list of microscope set:
Camera*1
1 x adjustable light.
Adjustable multiplier lens 0-180*1
Alloy bracket
