HDMI VGA Camera Specification:
Model: Camera with HDMI VGA two output
Color: black
Sensor: 1/2.8 inch IMX307
Image Resolution: 1920*1080 1024*768 (for HDMI), 1920*1080 1024*768 (for VGA)
Video Resolution: 1920*1080 1024*768 @ 60F/S
Basic Function:Brightness(0-100%,Adjustable), Contrast(0-100%,Adjustable), Saturation(0-100%,Adjustable), White balance(One key white balance,Manual balance)
Image quality adjustment:Exposure(Automatic Exposure, Manual Exposure), Color temperature(Red, Blue, Green, Adjustable)
Freeze: Support
Mirroring: Support
Power supply:12V 1A
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size

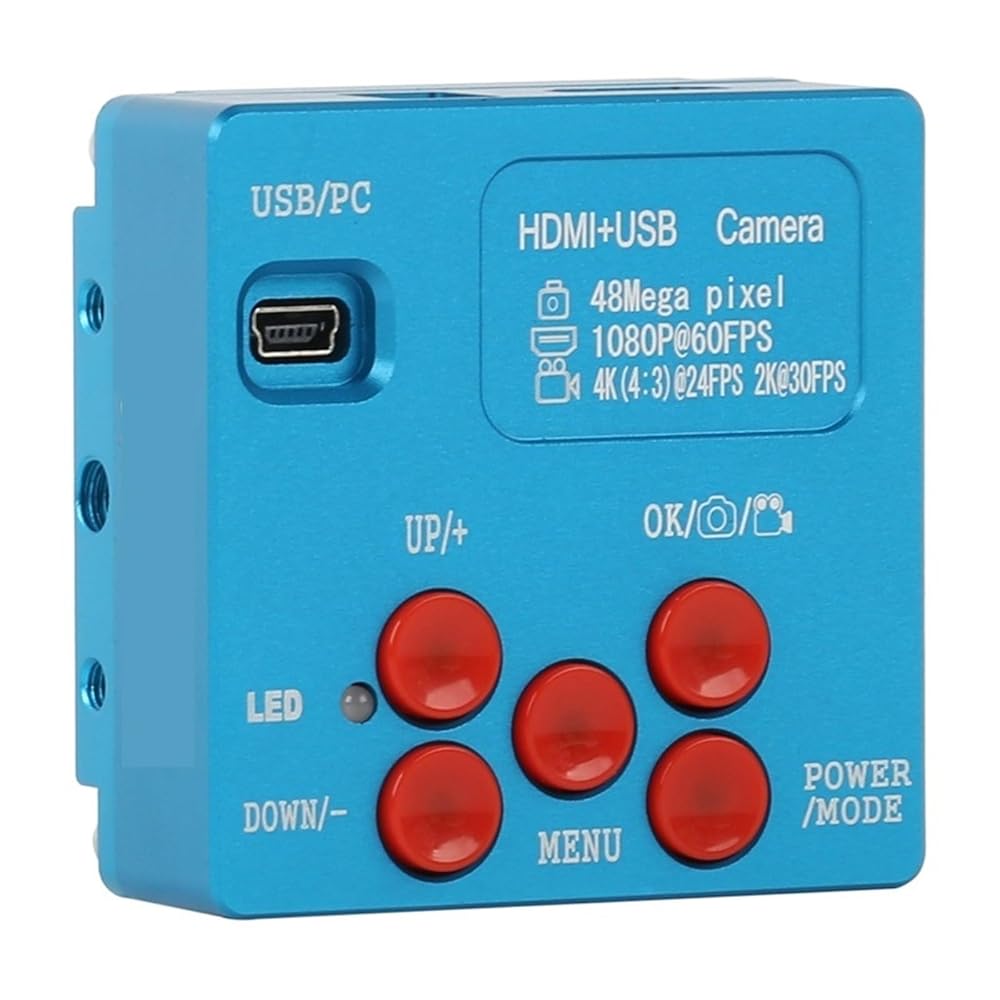

48MP 4K HDMI USB Camera Specification:
Sensor: 1/2.8 inch IMX335 CMOS sensor
Pixel size: 48MP
USB interface: USB2.0 X2 ( U disk, connect mouse)
HDMI output: 1920*1080 60 frames
Lens interface: C interface
Exposure: One-button exposure/automatic exposure
White balance: one-key white balance/auto white balance
Storage: Support U disk storage, mouse operation
Import PNG: Support U disk to import PNG files to the camera
Input voltage: DC 5V-12V
Cross line: Support center cross line, a total of 8 (color, position adjustable)
Line drawing: 12 kinds of measurement functions such as line drawing, straight line and circle are supported.
Boot screen: Support custom boot screen
Calibration: support line calibration, circle calibration
Mirroring: support horizontal/upside down
Net weight: 150g
Gross weight: 350 grams
Product size: 70*70*38mm
Packing size: 145*130*70mm
