مميزات خاصة

Equipped with the AMD Ryzen 78845HS processor, Zen4 architecture, 8 cores and 16 threads 17cm x 17cm | ITX form factor, compatible with LGA1700 series CPU coolers AMD Ryzen AI NPU can reach up to 16 TOPS.

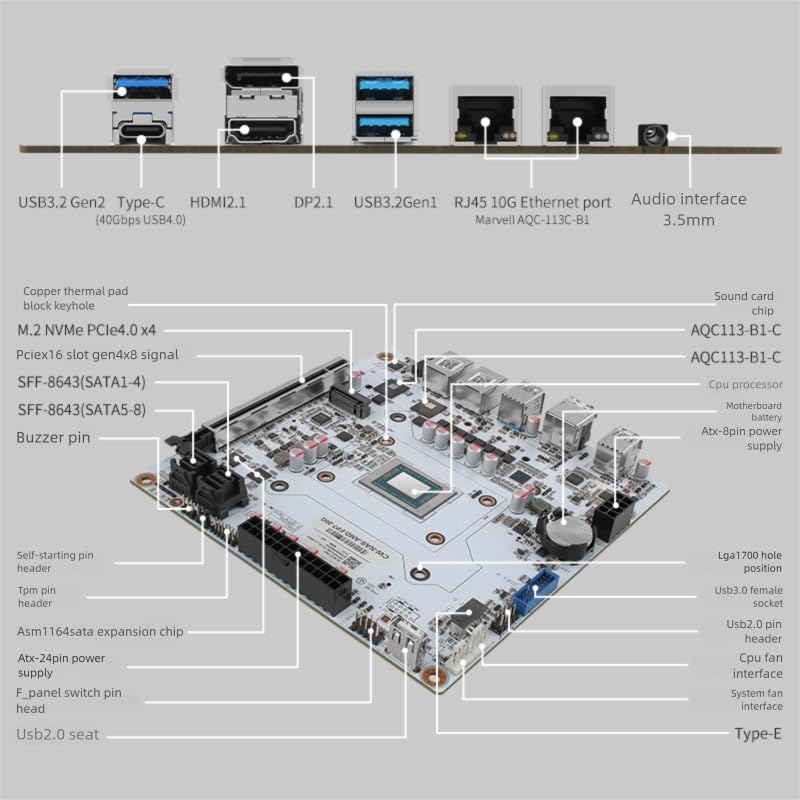

1 PCI Express 16-slot with PCIe 4.0 x8 interface signal Two SFF-8643-4-lane connectors can be expanded to provide 8 SATA 3.0 signals.2 M.2 NVMe hard drive slots (PCle 4.0 x 4) - 1 on the front and 1 on the back, both of 2280 specification.
Dual-channel notebook memory slot, SO-DIMM DDR5, defaults to supporting 5600MHz and is backward compatible.Two RJ45 10-gigabit electrical ports (AQC113-B1-C rate adaptive 1G/2.5G/5G/10G) HDMI + DP + Type-C three-screen display output supports 4K/8K
1 Type-C USB4 interface with a rate of 40 Gbps, 3 USB 3.0 A ports 1 USB 3.0 female connector and 1 Type-E female connector, allowing the leads to be connected to the panel.
It is equipped with one USB 2.0 port, which supports applications such as USB disk encryption and partial system booting.One 3.5mm dual-function audio interface, supporting microphone input or audio output

وصف

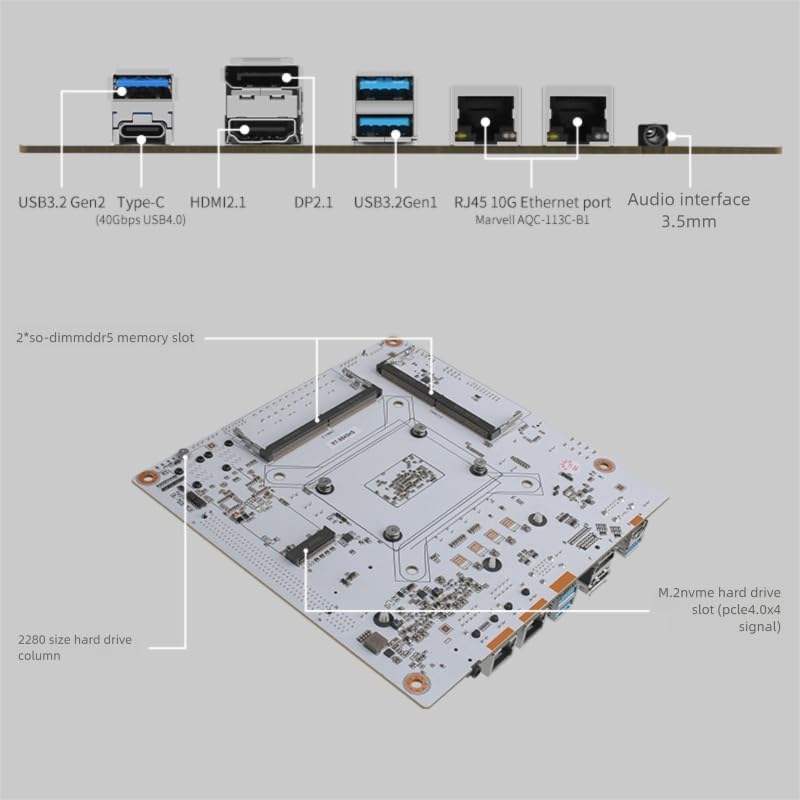

2.Supports Notebook SO-DIMM DDR5 Memory Technology 2 SO-DIMM DDR5 Memory Slots DDR5 Support 5600MHz Maximum capacity of 48GB for a single memory stick, 96GB for two sticks 3.Base power consumption 45W Configurable thermal design power consumption (CTDP) 35-54W 4. 2*M.2 NVMe PCle 4.0x4 signals 2 strips (2280) 2*SFF-8643 interfaces, 2 ASM1164 chipsets rotate (can be expanded with 8 SATA3.0 signals) 2*10G RJ45 10 Gigabit Enclosure (AOC113-B1-C) AMD Ramdeon 780M, 12-core count, video card frequency 2700MHZ 4.1*3.5mm 2-in-1 audio interface REALTEK ALC269 chip HDMI2.1 interface support 4K 3840x2160 @ 120HZ 8K 7680x4230 @ 60Hz DP2.1 interface support 4K 4096x2160 @ 240Hz 8K 7680x4320 @ 60Hz Type-c interface support 8K 7680x4320 @ 60Hz 5.1* 4Pin CPU FAN 1* 4Pin SYS FAN -1* 8Pin ATX CPU power supply (plugging in 4Pin or 8Pin is OK) 1* 24Pin ATX motherboard power supply 2* SO-DIMM DDR5 memory slots 2* M.2 NVMe PCle4.0x42280 specification hard disk slots -2*SFF-8643 interface 1*PCle x16 slot (PCle4.0 x8 signaling) Onboard Interface -1*USB2.0 Dock (Vertical, Direct Plug) 1*Motherboard Battery Dock 1*TYPE-E Female Socket -1*USB2.0 Pin header -1*USB3.0 female socket -1*JTPM Pin

مرحبًا،

بحث

AMD 8845HS 8-Core NAS Motherboard مع منافذ Ethernet Dual 10G ومعالج 8-Bay AI (اللوحة الأم +2*SFF8643)
