Overview
TYPEC0503G PoE splitter,a new model: With RJ45 port and an port with TYPEC/USB-C. it is an economical and practical PoE remote power equipment base on IEEE802.3af /at standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at,Provides power and data at the same time for the terminal device does not support PoE. PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line

Features
Support international standard IEEE802.3 af/at(30W)
POE port Support 10/100/1000M data transmission
PD support 44V-57V voltage transmission,Automatically detects power supply from PSE power supply module
5V/3A power output using TYPEC ,the TYPEC port only for power-charging

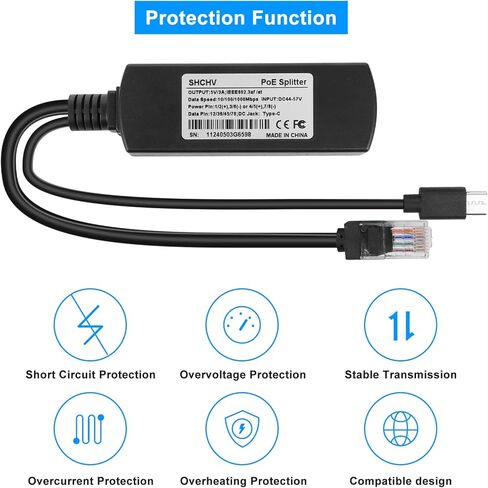

Support the isolation circuit protection,can effectively protect electrical equipment Support the short circuit,overvoltage protection
1500V high voltage isolation

Technical Parameters
Model：TYPEC0503G
Transfer Rate ：10/100/1000M
Power Input： 48V DC /0.6A, Output 5V/3A
Standard ：IEEE802.3 af/at (30W)
TRNF ：1/2(+),3/6(-);4/5(+),7/8(-)

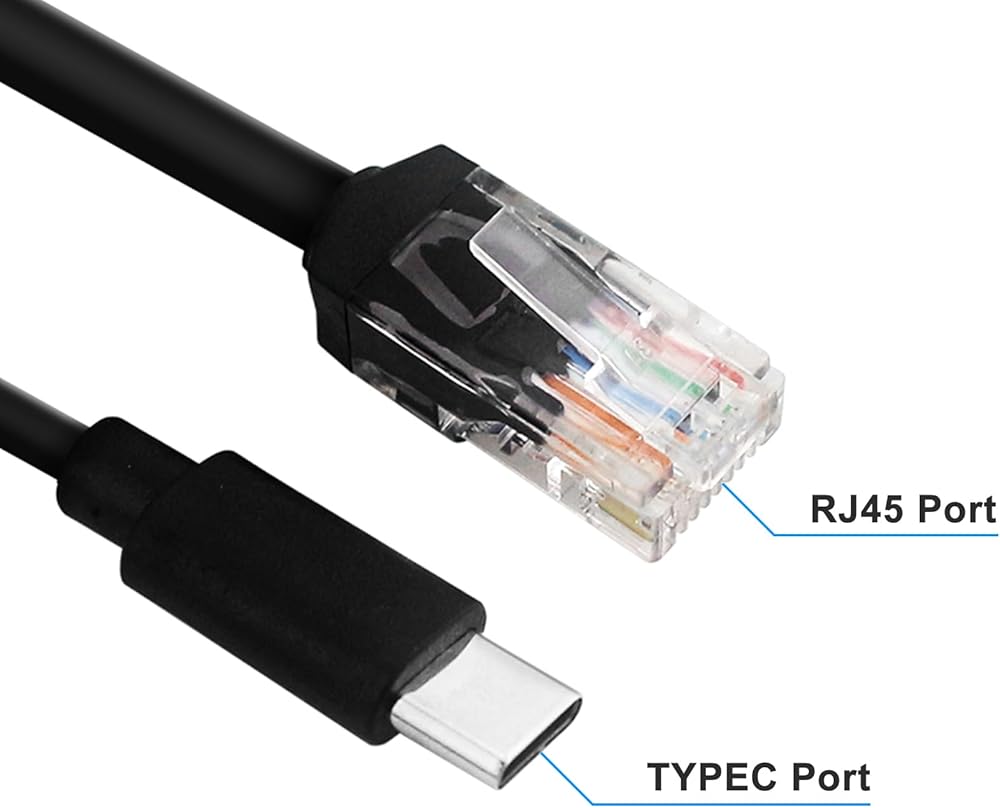

Interface Type ：1 Input RJ45 port, 1 output RJ45 port, 1 DC output（TYPEC）
Standard ：IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af/at
LED ：Yellow PoE lamp
Environment：Work within -40~85°,Storage within -40~85° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing

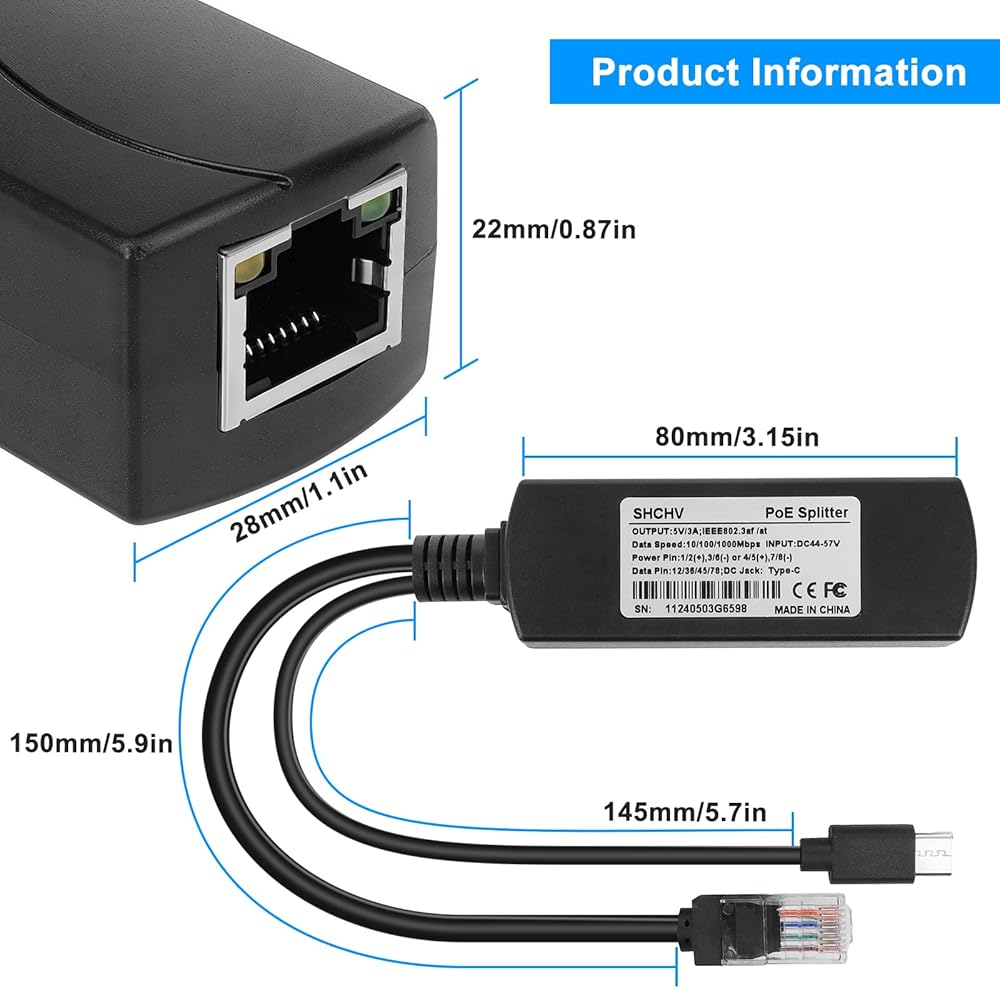

Dimension ：68L * 25W *25H
Weight ：0.05kg
