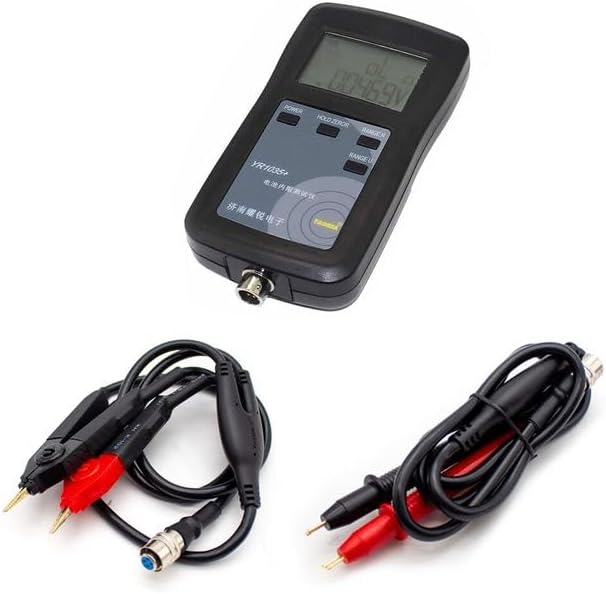

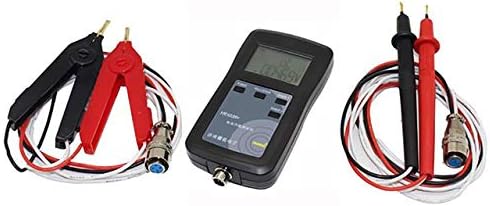

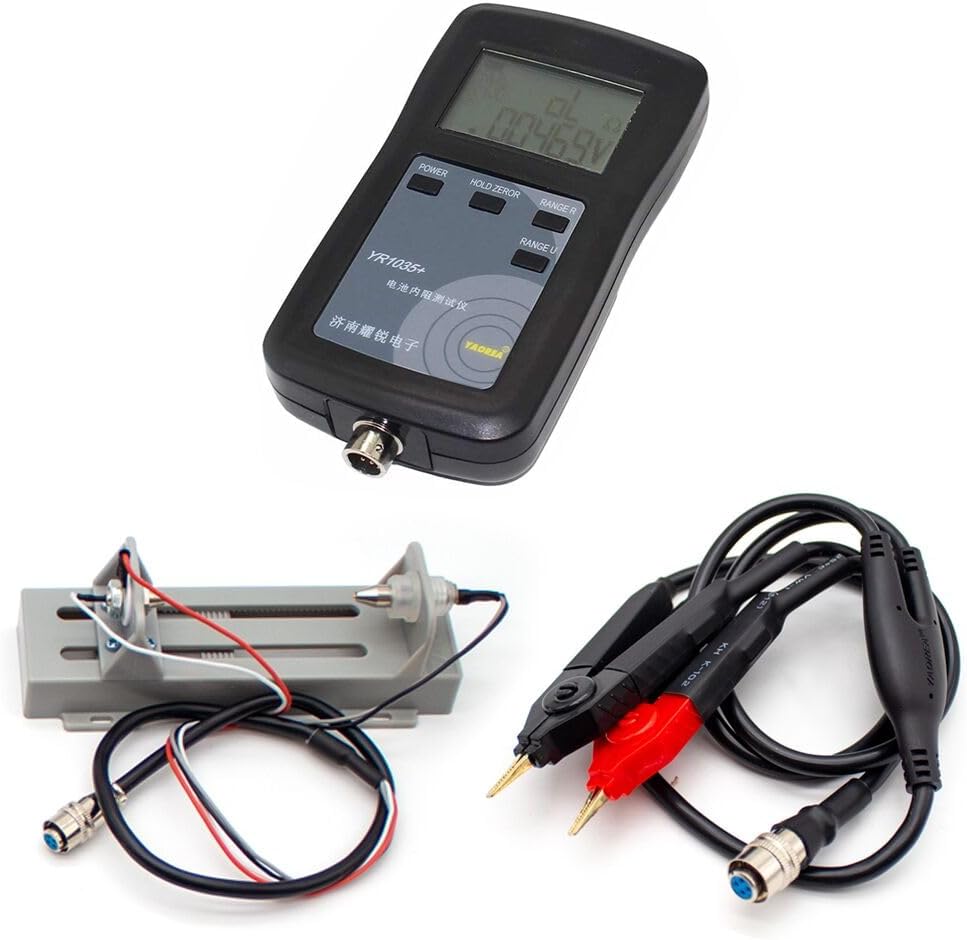

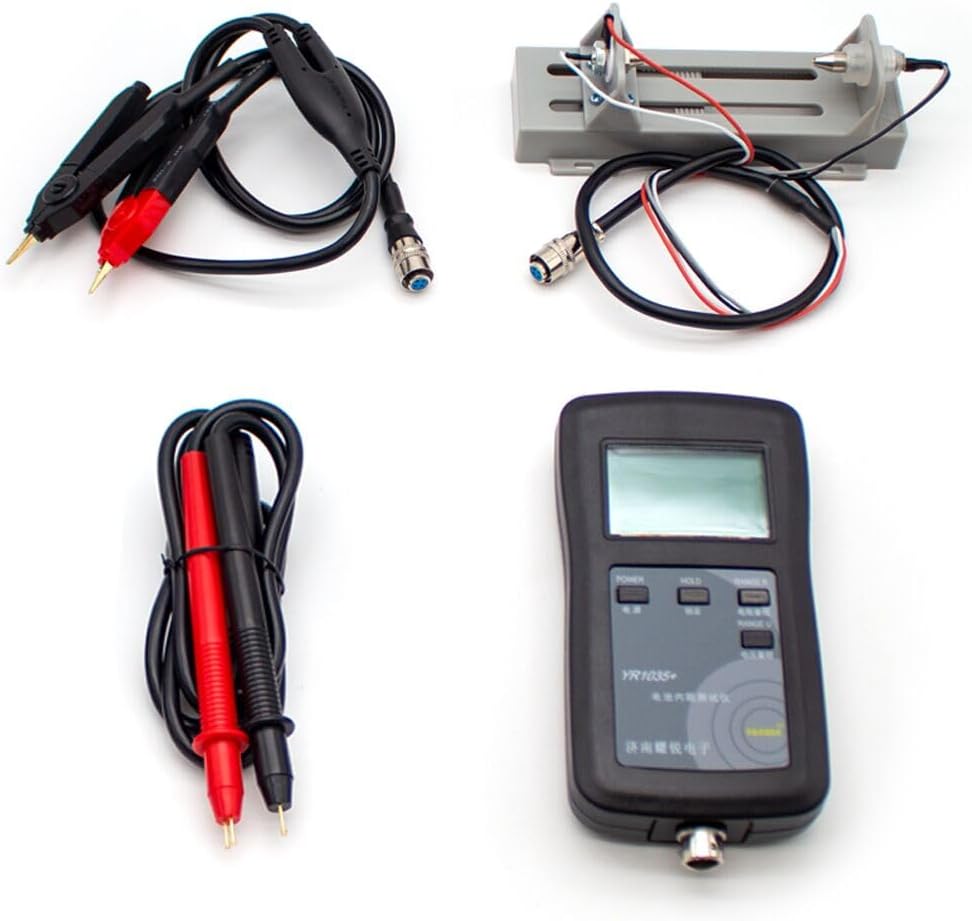

SET A: host+ probe test line(suitable for measuring all kinds of batteries, good versatility. To improve the anti-interference twisted wire)
Description:
1.True 4-wire AC sine measurement, effectively avoid the influence of the test line and contact resistance.

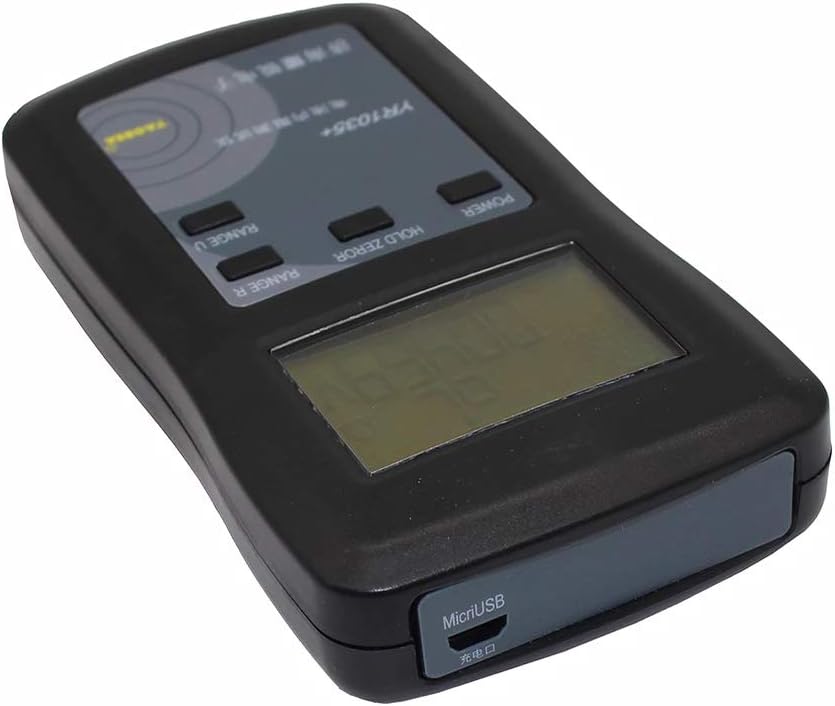

2.Two functions interface, the original battery sorting function. Built-in battery, Andrews mobile phone charger to charge, low power consumption + a variety of power-saving options.
3.Test range up to 200 ohms with a minimum resolution of 0.01 milliohms and less than 5 milliohms.
4.Press HOLD to enable the ZR function to measure internal resistance as low as 0.30--0.50 milliohms.
5.Handmade, rightExcessive appearanceCautious shooting.2017 high voltage battery internal resistance tester.
6.True four line 1Khz AC sinusoidal battery internal resistance instrument 0.00001 ohm ---200 range.
7.It can measure lead acid, lithium ion, lithium polymer, lithium iron phosphate, alkaline, dry cell, Ni MH, Ni Cd, button cell, etc.. senduseZR function measurement of 5 ohm below, internal resistance higher accuracy.
Main parameters:
Internal resistance measurement:
Precision format: ± ([precision percentage] + [least significant digit]
--Range minimum resolution accuracy
20mΩ 0.01mΩ 0.7%+7 (when ZR function is enabled)
200mΩ 0.1mΩ 0.5%+5
--2Ω 1mΩ 0.5%+5
--20Ω 10mΩ 0.5%+5
200Ω 0.1Ω 0.6%+5
In the range of 5%-95% of the gear position, if it is not within this range (less than 5% gear range range, or greater than 95% gear range range), the error may be greater than the above accuracy.
Note:Read the instructions before use and instrument back note. It is strictly prohibited to input AC signals and higher than the input signals100V DC voltage.
Package

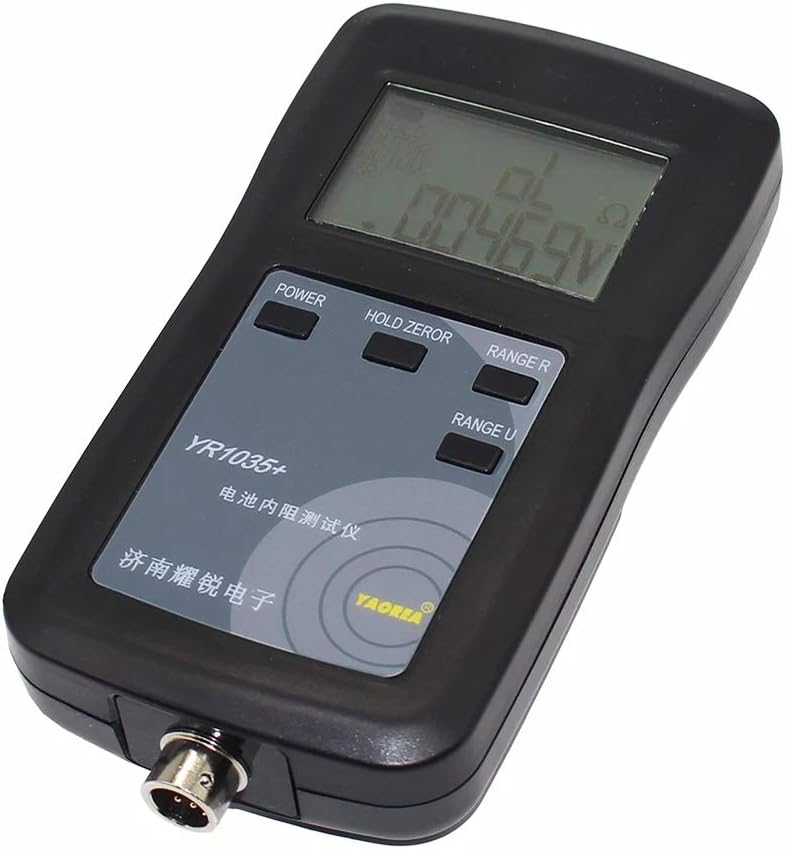

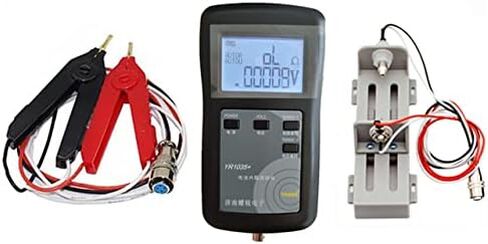

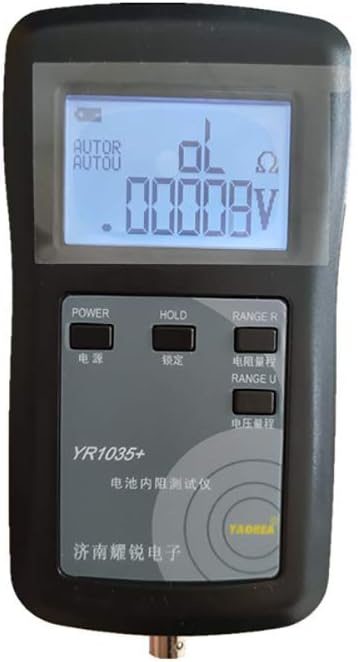

1 x Set of YR1035 Battery Internal Resistance Test Meter
