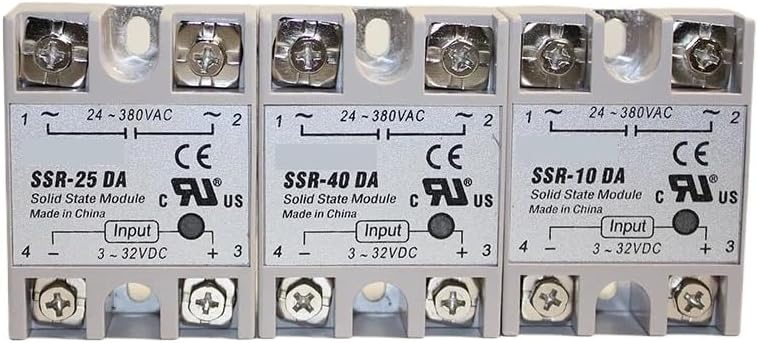

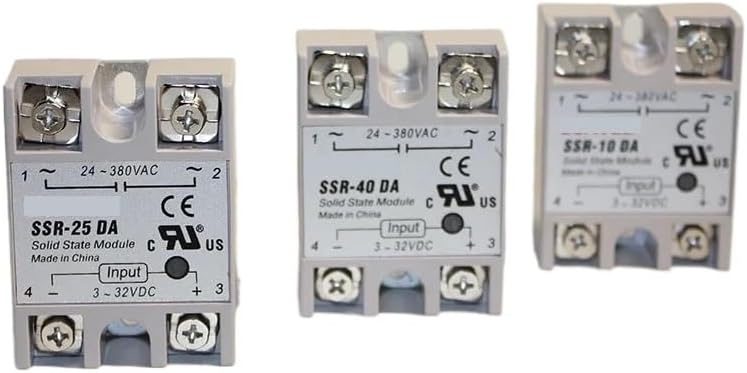

FREE SHIPPINGSSR -10DA/25DA/ 40DA DC control AC SSR white shell Single phase Solid state relay WITHOUT plastic cover
SSR -10DA Single phase Solid state relay
Load Current:
10A
Load Voltage:
24~380VAC
Control Voltage:
3~32VDC
Control Current:
3~25MA
On Voltage:
1.5VAC
Off Leakage Current:
4MA
On-off Time:
10MS
Dielectric Strength:
2500VAC
Insulation Resistance:
100M /500VDC
Ambient Temperature:
-25~+75°C
Work instruction:
LED
Weight
90g
SSR -25DA Single phase Solid state relay
Load Current:
25A
Load Voltage:
24~380VAC
Control Voltage:
3~32VDC
Control Current:
3~25MA
On Voltage:
1.5VAC
Off Leakage Current:
4MA
On-off Time:
10MS
Dielectric Strength:
2500VAC
Insulation Resistance:
100M /500VDC
Ambient Temperature:
-25~+75°C
Work instruction:
LED
Weight
90g
SSR -40DA Single phase Solid state relay
Load Current:
40A
Load Voltage:
24~380VAC
Control Voltage:
3~32VDC
Control Current:
3~25MA
On Voltage:
1.5VAC
Off Leakage Current:
4MA
On-off Time:
10MS
Dielectric Strength:
2500VAC
Insulation Resistance:
100M /500VDC
Ambient Temperature:
-25~+75°C
Work instruction:
LED
Weight
90g
==========
Hign-concerned Chemical : None
Theory : Solid State Relay
Protect Feature : Sealed
is_customized : Yes
Usage : General Purpose
Contact Load : Low Power
Model Number : SSR-10DA/SSR-25DA/SSR-40DA
