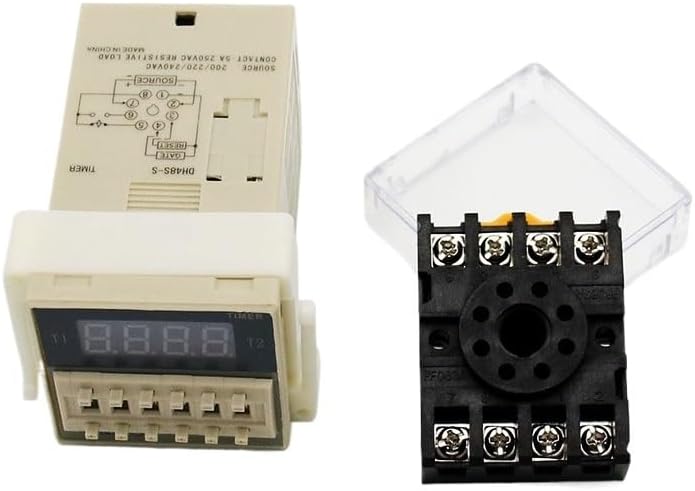

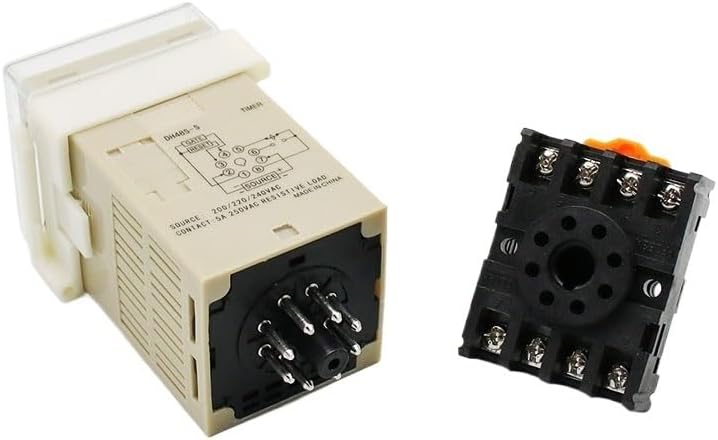

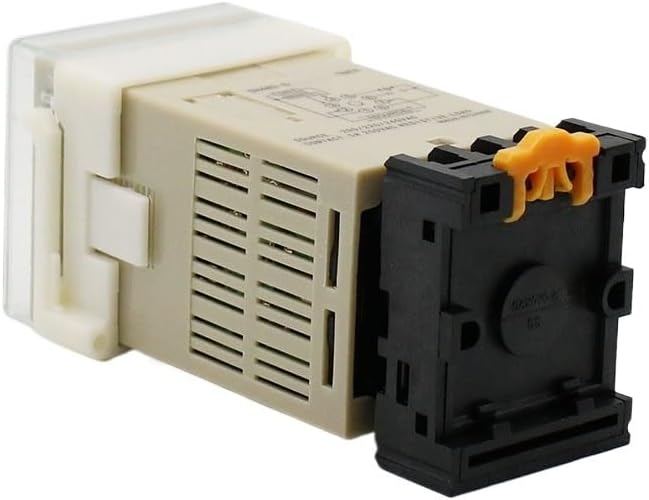

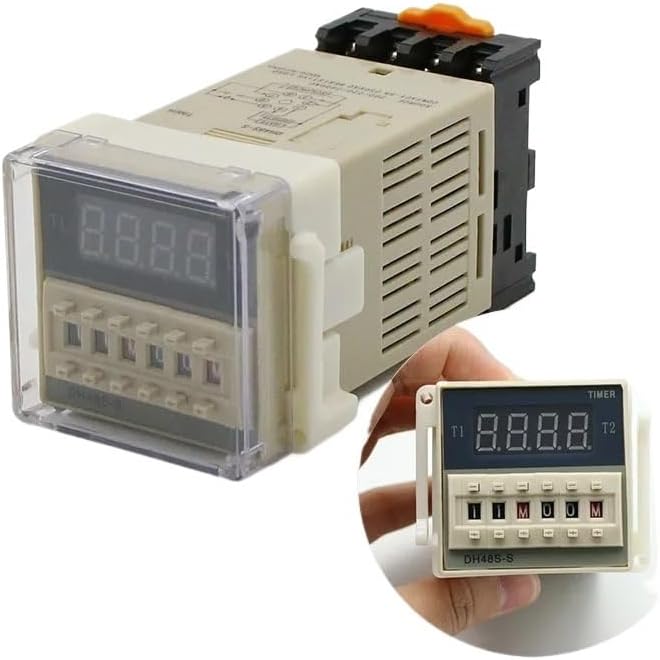

DH48S-S 0.1s-990h AC 110V 220V DC 12V 24V Repeat Cycle SPDT Programmable Timer Time Switch Relay with Socket Base DH48S Din Rail
Model number
DH48S
Supply voltage
36, 110, 220 or 380 Vac, 50/60 Hz; 12Vac/Vdc, 24Vac/Vdc
Tolerance
-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption
2W max
Setting method
Dial switch
Indication method
8-segment 4-digital display
External dimensions
48x48x97.4 mm
Perforate dimensions
45 10x45 10 mm
Contact rating
3A@250Vac, 5A@28Vdc
Repeat accuracy
±0.3%, ±0.05 sec
Setting error
±0.5%, ±0.05 sec

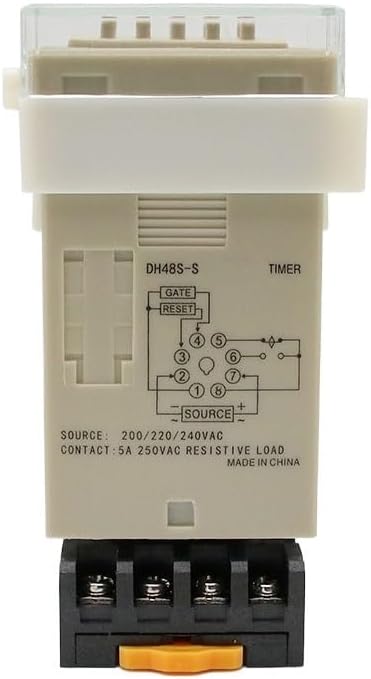

Termination
8 pins
Mounting
Panel, din rail
Matched socket
PF083A,PF083A-E
Mechanical life
1x106
Electrical life
1x105
Operating temperature
0 to 50 °C (32 to 122 °F)
Operating humidity
95% RH max, non-condensing
Alias name
DH48S digital timer
==========
Power Source : AC
Theory : Time Relay
Protect Feature : Sealed
is_customized : Yes
Usage : General Purpose
Contact Load : Low Power
Model Number : DH48S-S
Voltage : 12V
Size : Miniature
Unit Type : piece
Package Weight : 0.28kg (0.62lb.)
Package Size : 13cm x 8cm x 9cm (5.12in x 3.15in x 3.54in)
