Relays / Phase Monitoring Relays

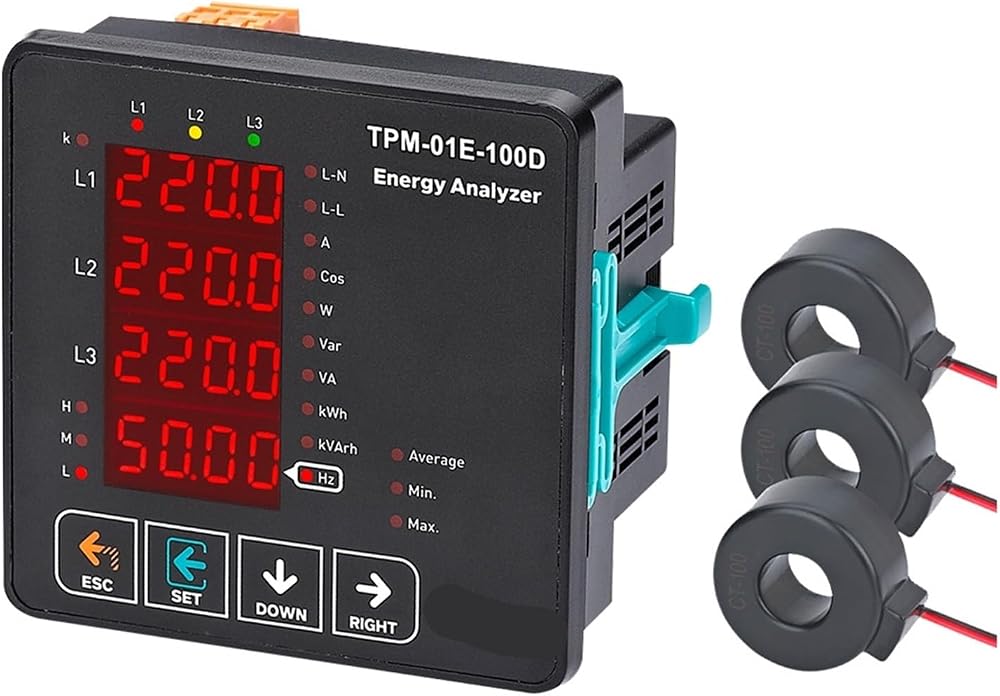

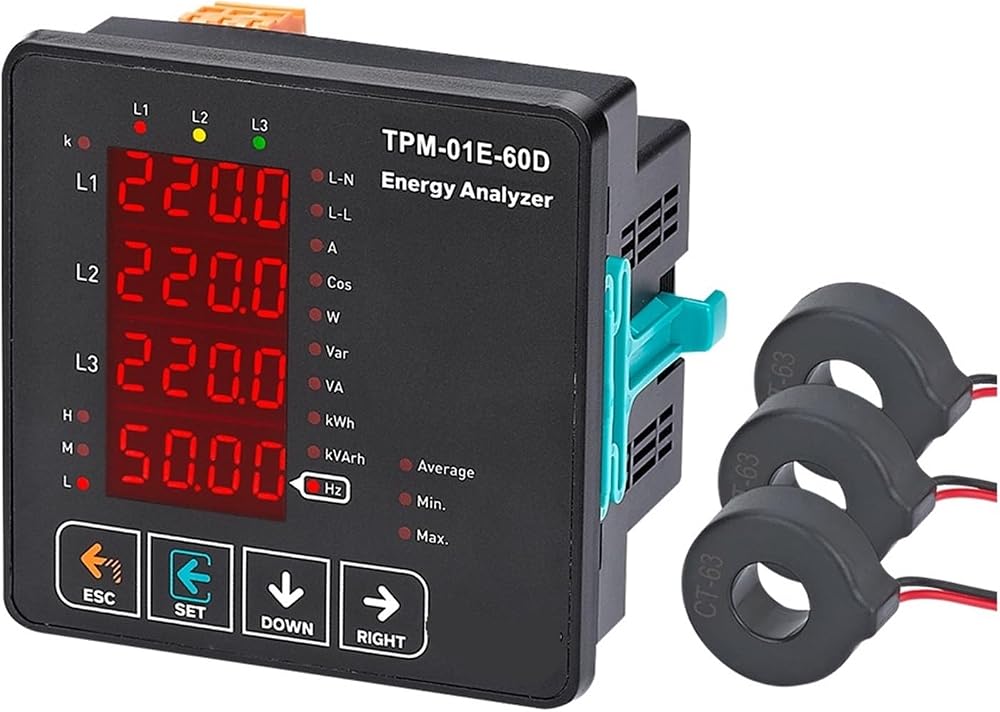

Specifications
Operating Voltage(Un).......: 85V - 240V AC
Operating Frequency..........: 50/60 Hz.
Operating Temperature.....: -20°C.....+55°C
Voltage Input......................: 5V ~ 330V AC
Voltage Range..........: 5V ~ 330kV
Current Input........................: 10mA ~ 5.5A
Current Range...........: 10mA ~ 5.500A
Voltage, Current Accuracy...:%±0.5
Active Accuracy....................:%±1
Reactive Accuracy................:%±2
Supported Connection.........:3P4W
Current Transformer Ratio....:1....1000
Voltage Transformer Ratio....:1,0....999,9
Display....:4x4 Digit 14mm LED Display 20xLEDs
Class..:IP41(Font Panel), IP20(Body)
Panel Hole Sizes....................:91mm x 91mm
Connection Type.................: Plug-in terminal
Cable Diameter....................: 1,5mm²

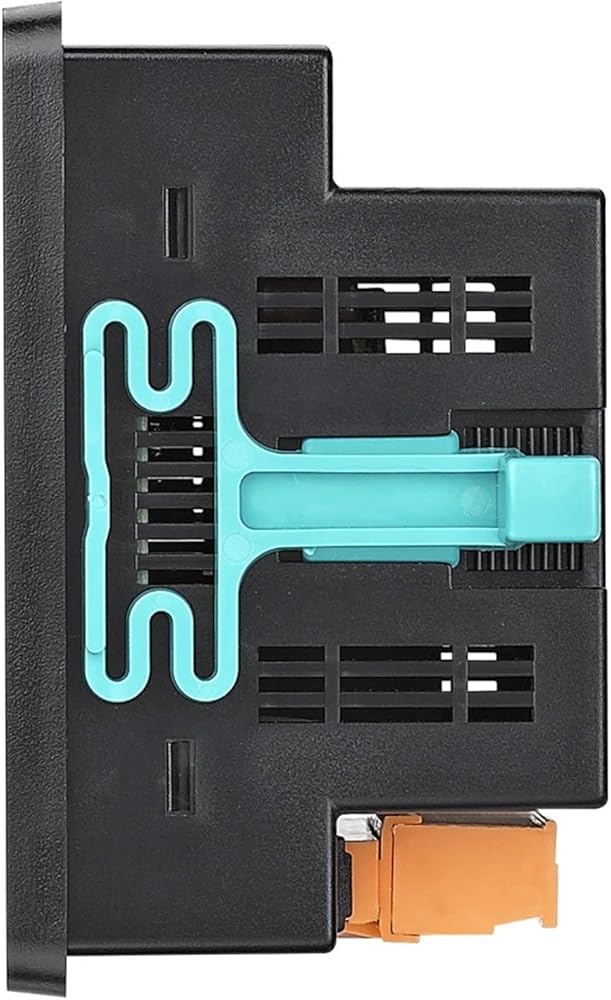

Mounting............: Mounting on panel front cover
Dimensions
Connection Diagram
